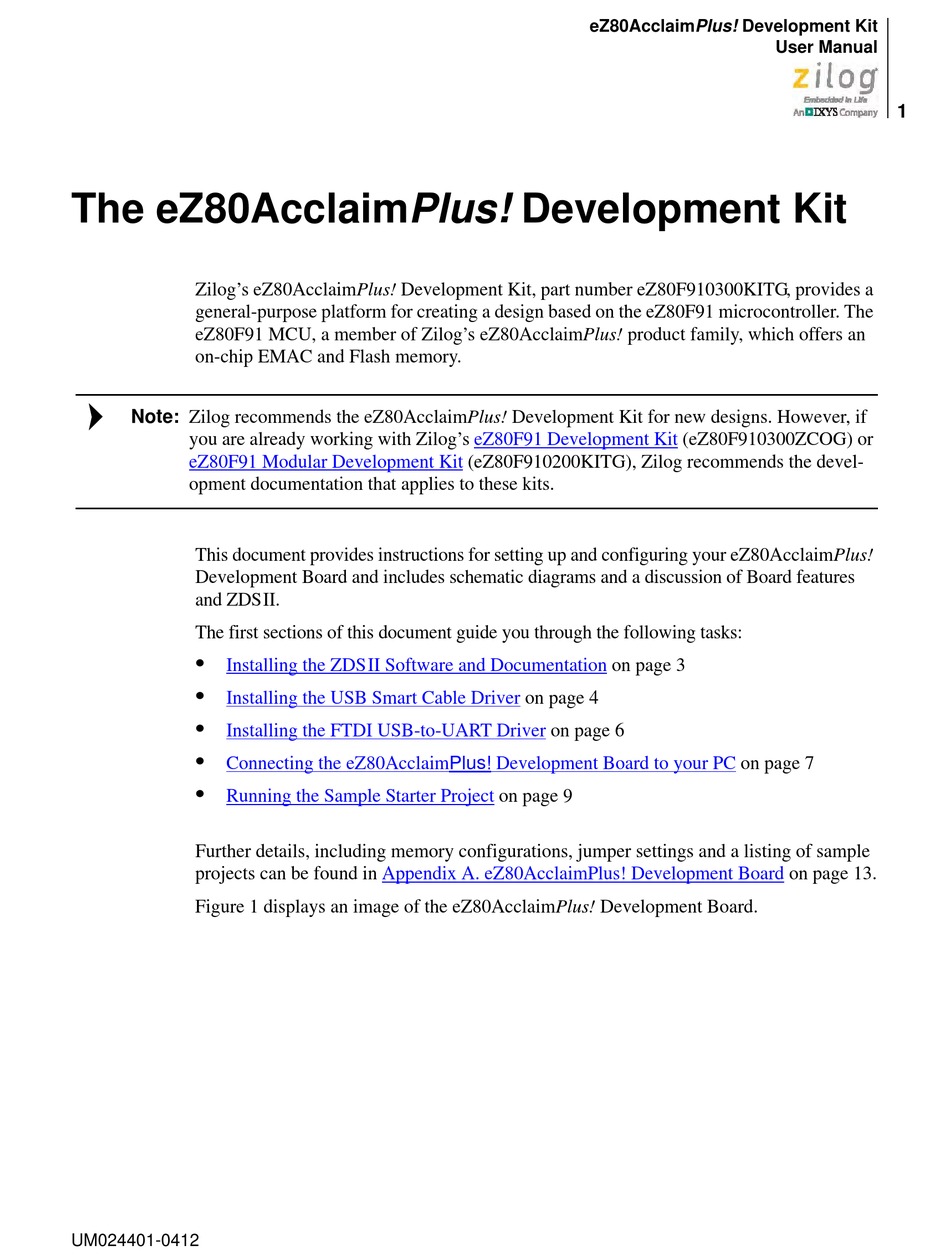

The eZ80AcclaimPlus! Development Kit

Zilog's eZ80AcclaimPlus! Development Kit, part number eZ80F910300KITG, provides a
general-purpose platform for creating a design based on the eZ80F91 microcontroller. The
eZ80F91 MCU, a member of Zilog's eZ80AcclaimPlus! product family, which offers an
on-chip EMAC and Flash memory.
Note: Zilog recommends the eZ80AcclaimPlus! Development Kit for new designs. However, if
you are already working with Zilog's
eZ80F91 Modular Development Kit
opment documentation that applies to these kits.
This document provides instructions for setting up and configuring your eZ80AcclaimPlus!
Development Board and includes schematic diagrams and a discussion of Board features
and ZDS II.
The first sections of this document guide you through the following tasks:
•
Installing the ZDS II Software and Documentation
•
Installing the USB Smart Cable Driver
•
Installing the FTDI USB-to-UART Driver
•
Connecting the eZ80AcclaimPlus! Development Board to your PC
•
Running the Sample Starter Project
Further details, including memory configurations, jumper settings and a listing of sample
projects can be found in
Figure 1 displays an image of the eZ80AcclaimPlus! Development Board.
