11. Attach the leg abduction pads by placing the narrow pointed ends into their
positioning openings on the foot support pad retainer and attaching the opposite
ends at the locking lever on the abduction retainer.

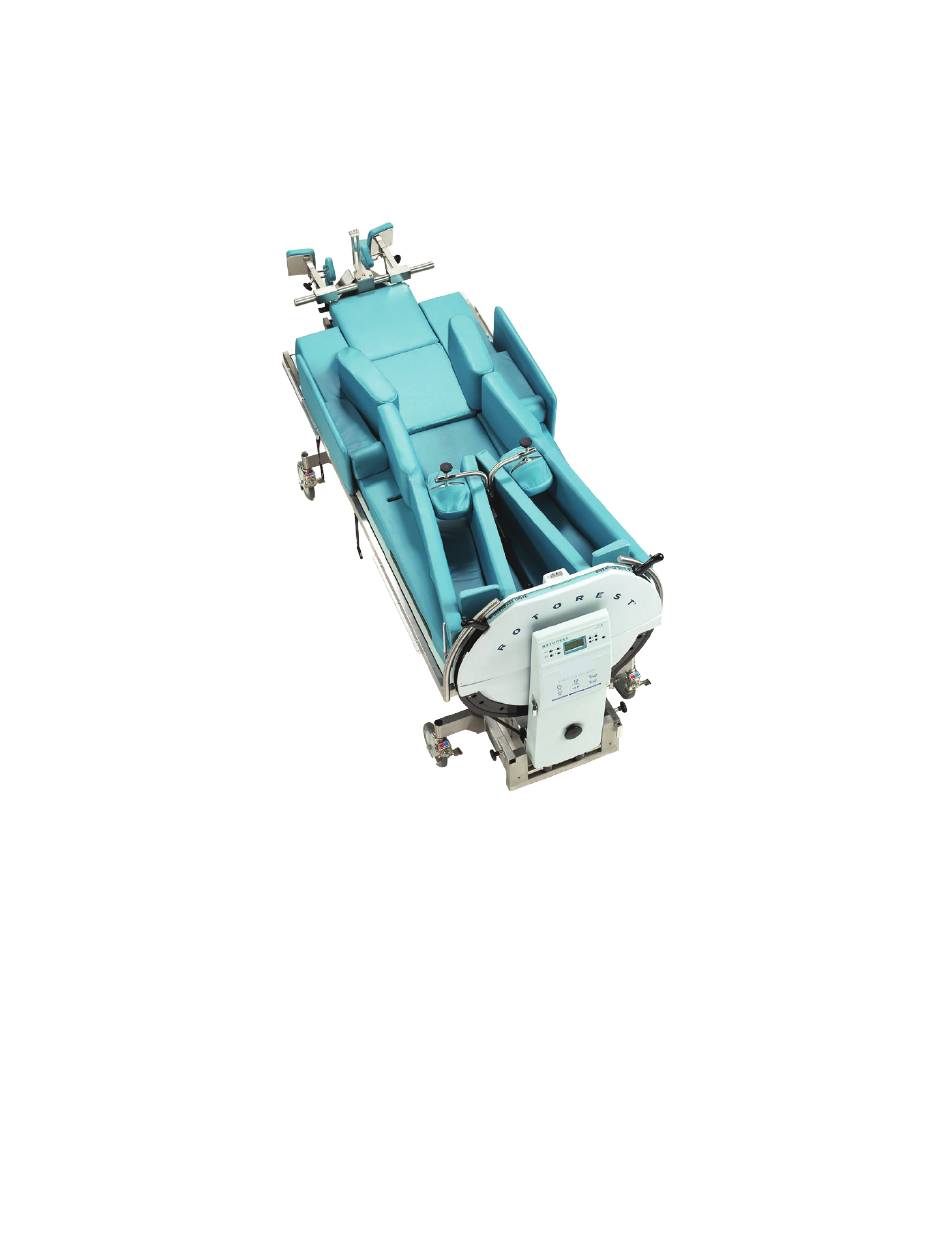

12. Attach the leg and hip supports to their respective retainers and adjust them so
that they are in close contact with the patient's hips. Firmly tighten the clamping
lever. This pad is the most difficult to attach and remove due to its length. Holding
the supports in a horizontal position simplifies attachment.
13. Attach the knee supports. A hand's thickness of space should be left between the
patient's knee and the knee pad to prevent pressure being applied to the knee
joint. The knee pad must be positioned such that it rests against the back of the
hand. The knee pads can be adjusted to allow for differences during abduction and
flexion of the patient's legs.
