8. Loosen the retainer for the foot supports by pulling the clamping lever upwards.
The retainer will then slide free in its rail. Slide it all the way to the foot end of
the bed.
Clamping lever
9. To loosen the abduction retainer, pull the clamping lever upwards and push the
retainer to the foot end of the bed. Place both hands (one on each side) on the
bottom of the retainer and carefully slide it into the vertical position.
For very broad patients, it may be necessary to adjust the locking lever to achieve the greatest
possible clearance between the side supports. This requires all four locking levers on both sides
to be rotated by 180°. Proceed as follows:
1. Loosen the locking lever by pushing the clamping lever beneath
the bed down.
2. Move the locking lever to the center of the slot and rotate by 180° in the opening
in the center of the slot.
3. To make the necessary adjustments for very tall patients, you must rotate the left
and right arm support by 180°.

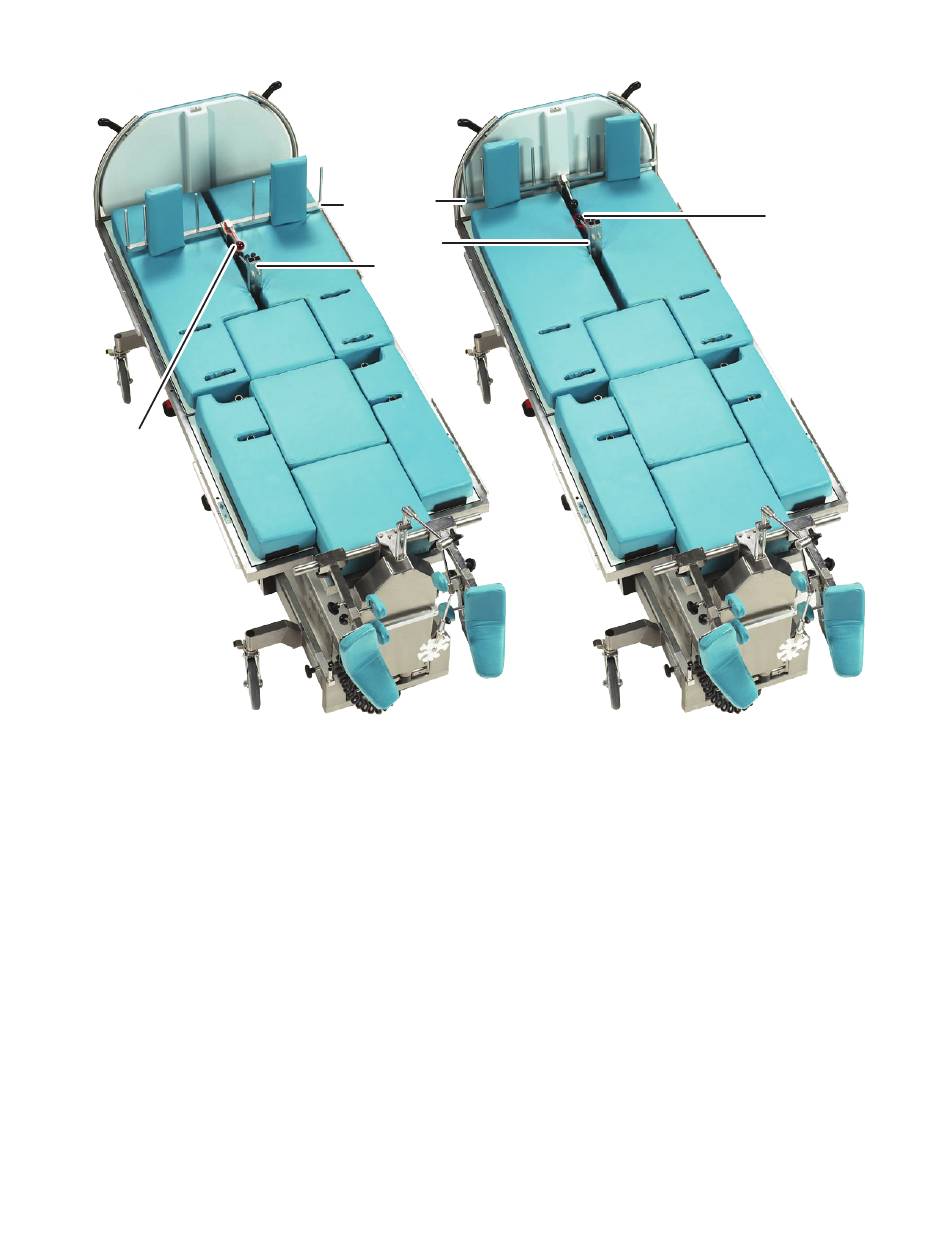

Retainer for foot
support pad
Abduction
retainer
