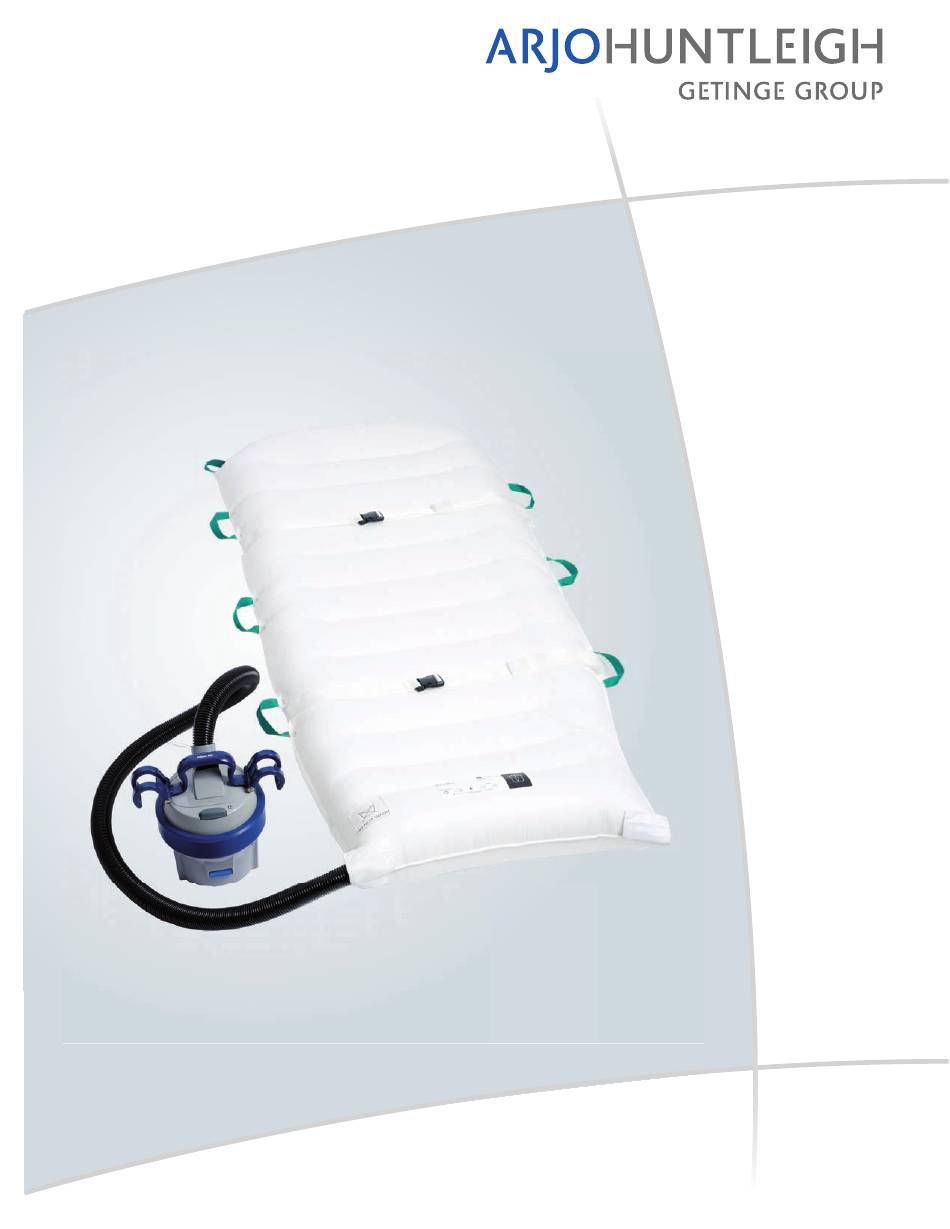

Maxi Air Transfer
INSTRUCTIONS FOR USE
...with people in mind
04.MS.01_5US.CA . June 2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARJOHUNTLEIGH Maxi Air Transfer and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Getinge ARJOHUNTLEIGH Maxi Air Transfer

Summary of Contents for Getinge ARJOHUNTLEIGH Maxi Air Transfer

  • Page 1 Maxi Air Transfer INSTRUCTIONS FOR USE ...with people in mind 04.MS.01_5US.CA . June 2012...
  • Page 2 Design Policy and Copyright ® and ™ are trademarks belonging to the ArjoHuntleigh group of companies. © Arjo Hospital Equipment AB 2012. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice.The content of this publication may not be copied either whole or in part without the consent of Arjo Hospital Equipment AB.

  • Page 3: Table Of Contents

    Contents Foreword................... 4 Intended Use ................5 Safety Instructions ..............6 Preparations................7 Product Specifications ............... 8 Parts Designation..............10 Product Description/Functions..........12 Correct Placement of the Patient..........13 Correct Placement of the Maxi Air Transfer.......14 Transfer..................15 Disinfection Instructions............20 Care and Preventive Maintenance..........22 Check/change the air filter............24 Troubleshooting................25 Technical Specifications............26...

  • Page 4: Foreword

    Foreword Thank you for purchasing ArjoHuntleigh Definitions in this IFU: equipment. WARNING Your Maxi Air Transfer™ is a part of a series of qual- ity products designed for patient transfer especially for hospital and extended care facilities. Means: Please contact us if you have any questions about the Safety warning.

  • Page 5: Intended Use

    Intended Use This equipment should only be used for the Contraindications purpose specified in this Instructions for This equipment can be unsuitable for patients with tho- Use (IFU). Any other use is prohibited. racic, cervical or lumbar fractures. The equipment can be unsuitable for patients whose body shape is such that they do not comfortably fit between the boundaries of The Maxi Air Transfer is intended for lateral transfer...

  • Page 6: Safety Instructions

    Safety Instructions WARNING Do NOT use the is equipment for any type of lifting of patients. WARNING Do NOT use the equipment if the power cord is damaged. Damaged power cord may cause serious injury to the patient and the caregivers. WARNING To avoid explosion or fire, never use the equipment in oxygen rich environment, in...

  • Page 7: Preparations

    Preparations Actions before first use (when delivered) Actions before every new patient 1 Visually inspect the Maxi Air Transfer and the 1 Select a suitable Maxi Air Transfer Flites size Maxi Air Transfer Flites for damage. according to sections Correct placement of the patient and Product Specifications.

  • Page 8: Product Specifications

    Product Specifications Maxi Air Transfer Dimensions: 12,5 x 7 x 7”(317,5 x 178 x 178 mm) Weight: 11 lbs. (5 kg) Material: Fire Retardant ABS, NBR Air Hose Length: 78” (1980 mm) Power Cord Length: 180” (4570 mm) Maxi Air Transfer Flites Widths: L 34”...
  • Page 9 Intentionally left blank...

  • Page 10: Parts Designation

    Parts Designation Maxi Air Transfer 1 Carrying handle 2 Attachment hooks 3 Socket inlet 4 Push button (On/Off) 5 LED mains power indicator 6 Rubber bumper 7 Cover 8 Air filter (inside) 9 Air hose 10 Socket 11 Snap lock button (air hose) 12 Nozzle 13 Power cord (Mains disconnection device) Maxi Air Transfer Flites...

  • Page 12: Product Description/Functions

    Product Description/Functions Maxi Air Transfer and Maxi Air Transfer Flites con- nection Fig. 1 1 Connect the air hose from the Maxi Air Transfer, to either the left or right foot end connection point of the Maxi Air Transfer Flites. (See Fig. 1) 2 Attach the snap lock button on the Maxi Air Transfer Flites to the air hose snap lock button.

  • Page 13: Correct Placement Of The Patient

    Correct placement of the patient WARNING Always make sure the patient has the correct size of the Maxi Air Transfer Flites. If the Maxi Air Transfer Flites is too narrow, the Maxi Air Transfer Flites can tip over during transfer caus- ing serious injury to the patient and the caregivers.

  • Page 14: Correct Placement Of The Maxi Air Transfer

    Correct placement of the Maxi Air Transfer WARNING Before every transfer, always make sure the Maxi Air Transfer is: • secured from movement and from falling • not in the way of the electrical outlet in use • not placed on the floor Incorrectly placed Maxi Air Transfer can cause hazards e.g.

  • Page 15: Transfer

    Transfer Transfer between surfaces (21 steps) Sending surface/side = surface the patient lays on Receiving surface/side = surface the patient is transferred to 1 Apply the brakes on the sending surface. 2 Make sure the patient is in a horizontal position. Fig.
  • Page 16 9 Adjust the sending surface height slightly higher than the Fig. 3 receiving surface. (See Fig. 3) WARNING To avoid bodily injury during the transfer, always make sure to: • apply the brakes on both the sending and receiving surface •...
  • Page 17 Fig. 4 WARNING To avoid bodily injury, make sure the Maxi Air Transfer Flites is completely inflated before starting the transfer. A partly inflated Maxi Air Transfer Flites can cause the patient to hit the underlying surface, causing bodily injury. The pull force will increase with a partial inflated mattress and this can cause bodily injury to the caregiver as well.
  • Page 18 17 Receiving side: meet up the air mattress when it is halfway Fig. 7 over the receiving surface. (See Fig. 7) WARNING To avoid bodily injury, make sure that the Maxi Air Transfer Flites is centred on the receiving surface, before the Maxi Air Transfer Flites is deflated.
  • Page 19 Intentionally left blank...

  • Page 20: Disinfection Instructions

    Disinfection Instructions WARNING CAUTION Do not lower down the Maxi Air Transfer in Do NOT wash the Maxi Air Transfer Flites! disinfectant solution. This could damage The Maxi Air Transfer Flites is a patient spe- the electrical components and cause inter- cific product and is not intended for use nal corrosion.
  • Page 21 Disinfection of the Maxi Air Transfer Fig. 1 (16 steps) 1 Use protective gloves and glasses. (See Fig. 1) 2 Prepare the solution for submerging the air hose. Make sure it is mixed according to the instructions on the disinfectant bottle label. 3 Remove the air hose from the Maxi Air Transfer by turning the hose socket (A) counter clock-wise and pull the air hose out.

  • Page 22: Care And Preventive Maintenance

    Care and Preventive Maintenance The Maxi Air Transfer and the Maxi Air Transfer Flites are subject to wear and tear, and the following actions must be performed to make sure that the product remains within its original manufacturing specification. WARNING To avoid malfunction resulting in injury, make sure to conduct regular inspections and follow the recommended maintenance schedule.
  • Page 23 Caregiver Obligations Caregiver obligations shall be carried out by personnel with sufficient Maxi Air Transfer and the Maxi Air Transfer Flites knowledge following the instructions in this IFU. Between Patients Disinfect the Maxi Air Transfer. Make sure the Maxi Air Transfer is disinfected between patients according to section Disinfection Instructions.

  • Page 24: Check/Change The Air Filter

    Check/change the air filter Check/change the air filter (6 Steps) Fig. 1 1 Fold in the attachment hooks (A). (See Fig. 1) Fig. 2 2 Pull up the rubber ring (B). (See Fig. 2) 3 Pull down the cover (C). (See Fig. 2) Fig.

  • Page 25: Troubleshooting

    Troubleshooting Troubleshooting for Maxi Air Transfer and the Maxi Air Transfer Flites PROBLEM ACTION • Check power supply. • Check power cord connections on the Maxi Air Transfer and the electrical outlet. No air flow. • Check air hose connections between the Maxi Air Transfer and the Maxi Air Transfer Flites.

  • Page 26: Technical Specifications

    Technical Specifications Technical Data Maxi Air Transfer Weight 11 lbs. (5 kg) Expected life 5 years from manufacturing date Protection class Not protected against ingress of water Pollution degree Operating force: Push button 30.0 N Maximum duty cycle For continuous use Sound Level 74 db (A) MRI classification...
  • Page 27 Allowed Combinations Products Compatible with Model Maxi Air Transfer ArjoHuntleigh Maxi Air Transfer Flites L, XL, XXL Maxi Air Transfer ArjoHuntleigh Maxi Air Transfer Flites L, XL, XXL Hovertech AIR200G (only compatible with Maxi Air Transfer Flites size L) Manufactured before 20120101 Hovertech AIR400G Manufactured before 20120101...
  • Page 28 Recycling The device should be recycled according to national regulations. Package Wood and corrugated cardboard recyclable Maxi Air Transfer Electric, metal and plastic parts shall be separated and recycled according to (WEEE) and according to mark- ings on the unit. Disposal (Environmental Protection) Maxi Air Transfer The device is marked with the WEEE symbol to indicate...
  • Page 29 Intentionally left blank...

  • Page 30: Labels On Maxi Air Transfer Flites

    Labels on Maxi Air Transfer Flites Type B, Applied part: pro- Foot end of mattress tection against electrical shock in accordance with IEC 60601-1. Follow Instructions for Use Manufacturing date Read the Instruction for The shelf life (2 years) of Use before use the Maxi Air Transfer Flites starts from the manufactur-...
  • Page 31 Maxi Air Transfer Flites MAS014000-WW Patient Name: Date: Data label...

  • Page 32: Labels On Maxi Air Transfer

    Labels on Maxi Air Transfer The equipment has been EMC-tested and fulfils all IP2X Protection class: The requirements according to IEC-60601-1-2. product must only be used in a dry location. Identification label Class I Insulation class The identification label is found under the top lid. It states the product number, the serial number and the V ~ Hz Voltage and AC frequency...
  • Page 33 Product no XXX XXXX-XX Serial no XXXXXXXXXX Maxi Air Transfer Made by Arjo in Eslov, Sweden YYMMDD Product Name Identification Label MR unsafe Push button Maxi Air Transfer, Model: MASXXXXXX-US Company Logo ArjoHuntleigh AB,Verkstadsvägen 5, 241 38 Eslöv (SWEDEN). Made in Sweden Data label...

  • Page 34: Approvals And List Of Standards

    Approvals and List of Standards CERTIFICATE STANDARDS EN/IEC 60601-1: 2005, Medical electrical equipment. General requirements for safety. CAN/CSA-C22.2 No. 601.1, Medical equipment Certified for Canada...

  • Page 35: Electromagnetic Compatibility

    Electromagnetic compatibility Medical electrical equipment needs special precautions regarding EMC (Electromagnetic compatibility) and needs to be used according to the EMC information below. The Maxi Air Transfer is intended for use in the electromagnetic environment specified below. The customer or the user of the Maxi Air Transfer should make sure that it is used in such an environment.
  • Page 36 Guidance and Manufacturer’s declaration - Electromagnetic Immunity The Maxi Air Transfer is intended for use in the electromagnetic environment specified below. The customer or the user of the Maxi Air Transfer should ensure that it is used in such an environment. Guidance and manufacturer’s declaration - electromagnetic immunity Immunity Test IEC 60601 Test Level Compliance Level...
  • Page 37 Guidance and Manufacturer’s declaration - Electromagnetic Immunity Guidance and manufacturer’s declaration - electromagnetic immunity Immunity Test IEC 60601 Test Level Compliance Level Electromagnetic Environment Guid- ance Conducted RF 3 Vrms 150 kHz to 80 Portable and mobile RF communica- IEC 61000-4-6 tions equipment should be used no closer to any part of the Maxi Air Transfer including cables, than the...

  • Page 38: Parts And Accessories

    Parts and Accessories Air filter Power cord Air hose US 8563082 8662971 6305180 Cover For disinfectant, contact Maxi Air Transfer Flites 86 62963 your local representative. L, XL, XXL...
  • Page 39 AUSTRALIA FAR EAST PORTUGAL ArjoHuntleigh Pty Ltd ARJO Far East Limited ArjoHuntleigh em Portugal: 78, Forsyth street Unit 3A, 4/F., block B Hoi Luen MAQUET Portugal, Lda. (Distribudor Exclusivo) O’Connor Industrial Centre Rua Poeta Bocage n.º 2 - 2G 55 Hoi Yuen Road, AU-6163 Western Australia 1600-233 Lisboa, Portugal Tel: +61 89337 4111...
  • Page 40 GETINGE GROUP is a leading global provider of products and systems that contribute to quality enhancement and cost efficiency within healthcare and life sciences. We operate under the three brands of ArjoHuntleigh, GETINGE and MAQUET. ArjoHuntleigh focuses on patient mobility and wound management solutions.
