Mechanical Operating Elements

Lock Pin

The lock pin is at the foot end of the bed. The lock pin is used to mechanically lock the bed in
position at different predetermined angles.
When the lock pin is engaged in one of the openings in the drive, the power supply to the motor
is interrupted. To resume the bed's rotational movement, pull out the lock pin. The message, Side
supports fixed?, appears on the screen and an alarm sounds. After checking the side supports, press
the Cancel / Alarm Reset button. The bed will then rotate automatically to the set angle.

Release Lever for the Drive Belt

The release levers are located at the foot end of the bed (one on each side). To release the
drive, push one of the release levers downwards. The bed can now be rotated by hand in
the direction in which the lever was pressed. When the lever is released, it is retracted by a
spring into the engaged position. This prevents the bed from being able to rotate or swing
unchecked.

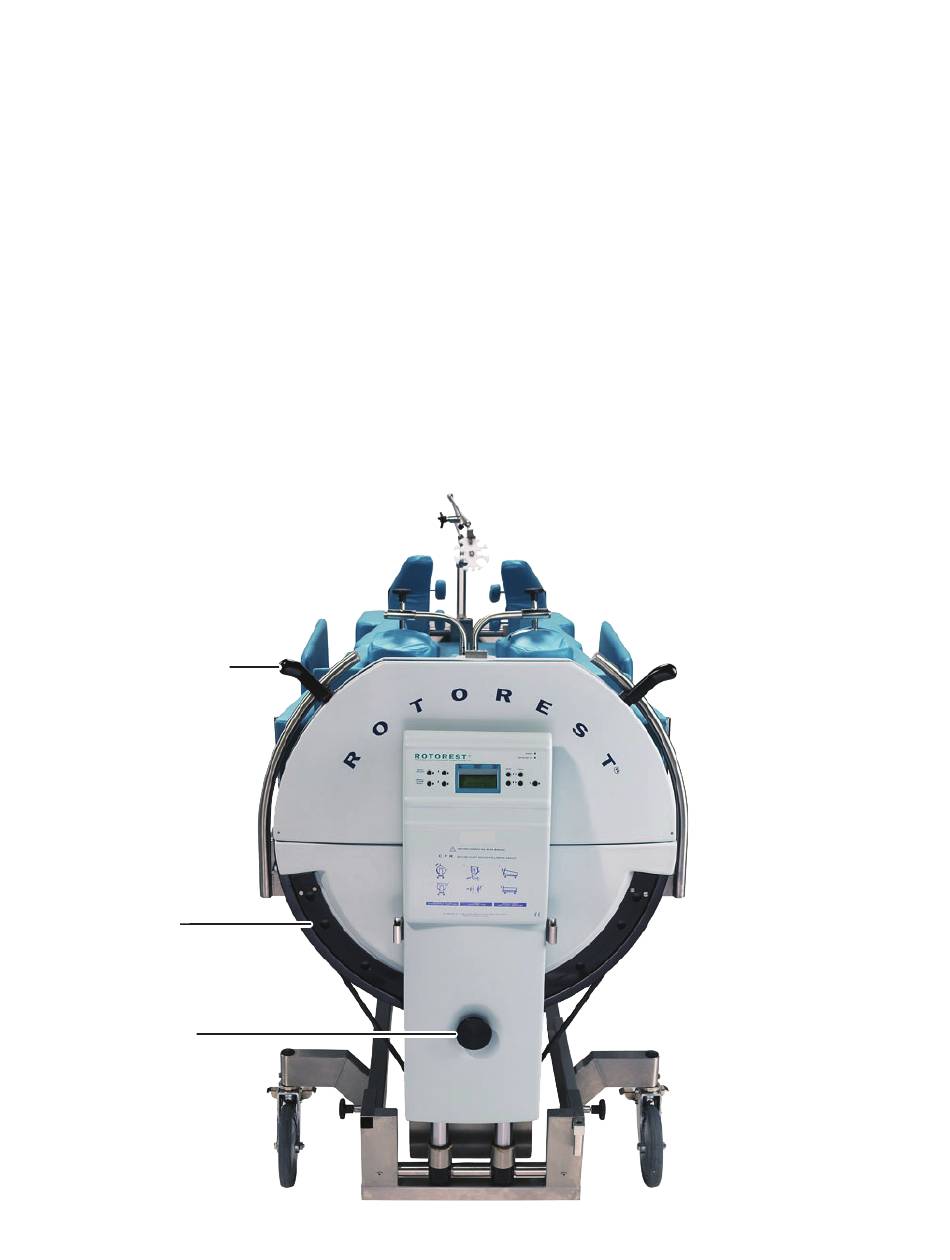

Release lever for
the drive belt
Drive
Lock pin
