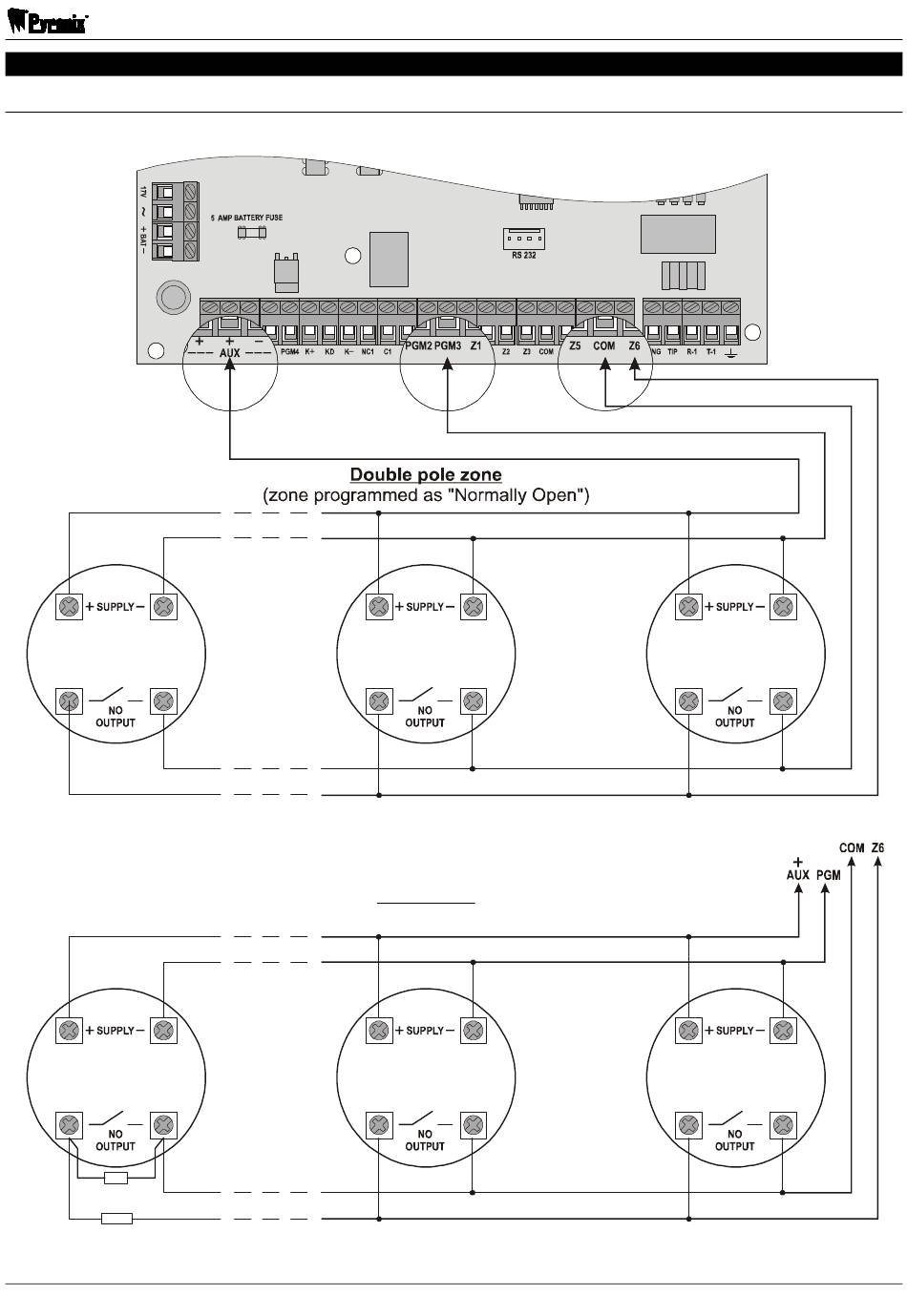

2.11 Smoke Detector Wiring

2.11.1 Matrix 6

Normally Open
4 Wire Fire
Detector
The last in the zone loop
(or the only one in the zone)
4 Wire Fire
Detector
4К7
4K7
The last in the zone loop
(or the only one in the zone)
RINS546-10
4 Wire Fire
Detector
The second
in the zone loop
DEOL zone
(zone programmed as "Normally Open")
4 Wire Fire
Detector
The second
in the zone loop
Matrix 6/816 Installation Manual
4 Wire Fire
Detector
The first
in the zone loop
4 Wire Fire
Detector
The first
in the zone loop
Page 25
