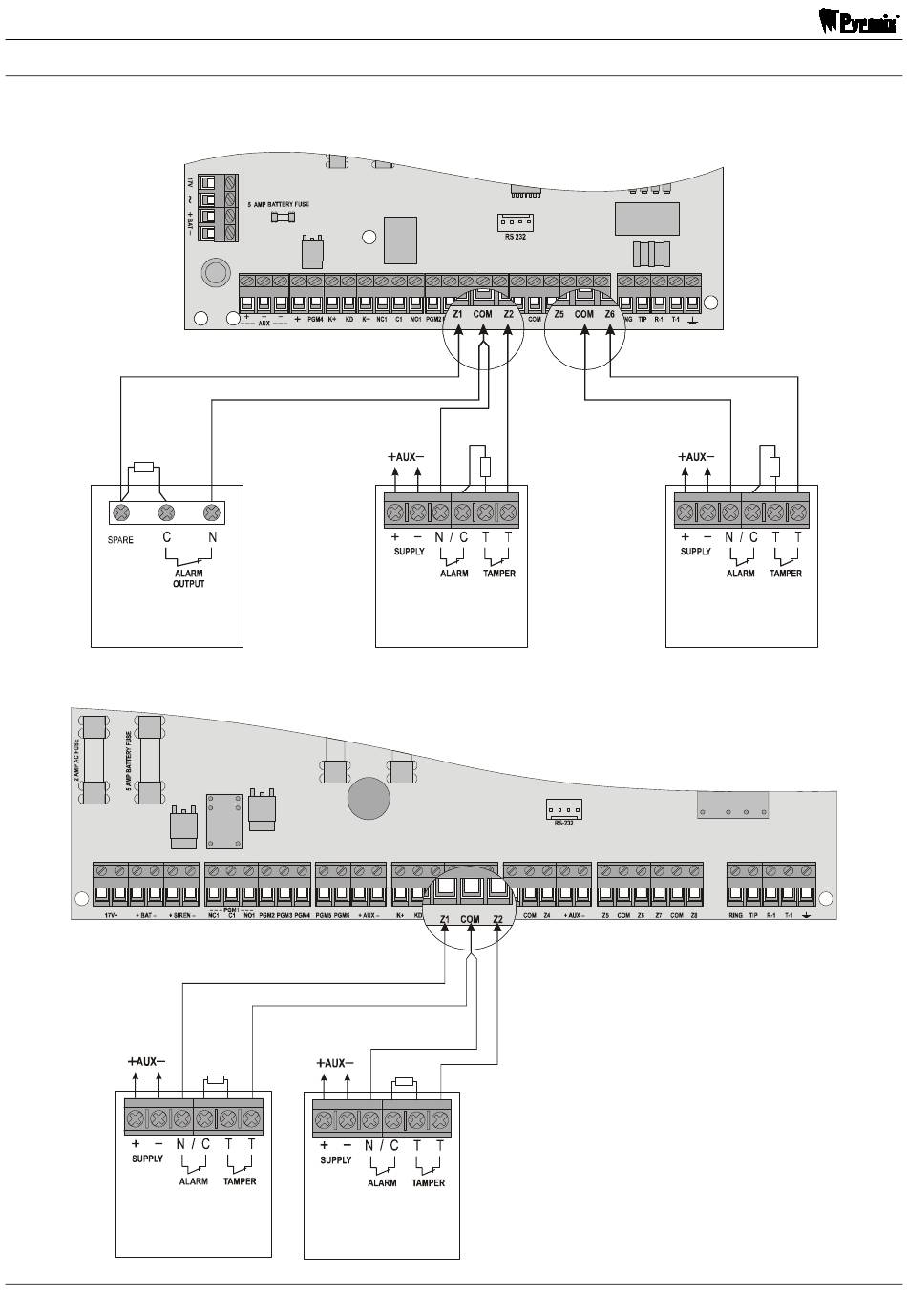

2.6.3 Single End of Line (SEOL) Resistor Wiring

NOTE: Any unused zones should be linked out using a 4k7Ω resistor.
Matrix 6
4K7
4K7
4K7
PIR
PIR
Magnetic Contact
Detector
Detector
Zone 1
Zone 2
Zone 6
Matrix 816
4k7
4k7
PIR
PIR
Detector
Detector
Zone 1
Zone 2
Page 16
RINS546-10
