Matrix 6/816 Installation Manual

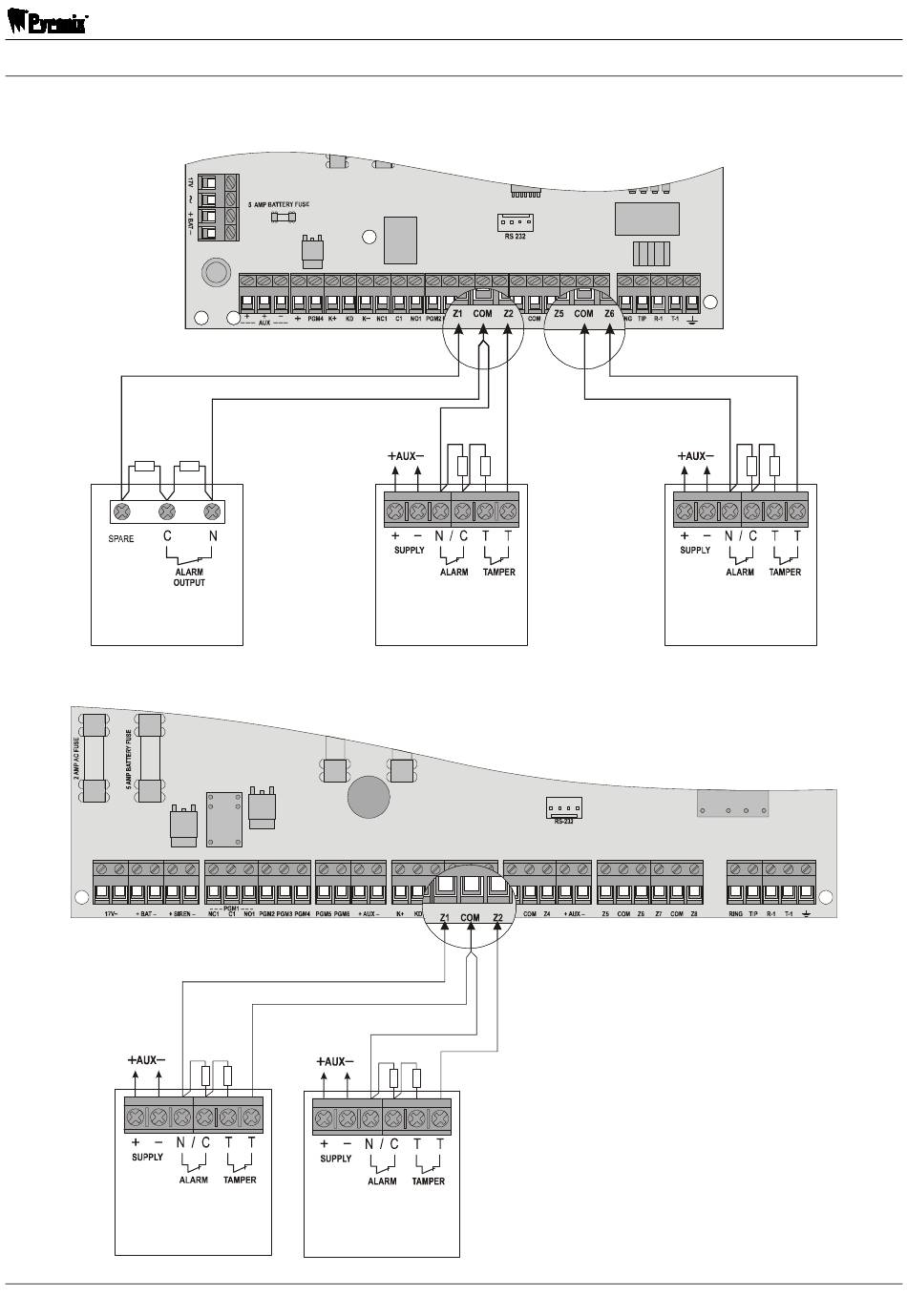

2.6.4 Double End of Line (DEOL) Resistor Wiring

NOTE: Any unused zones should be linked out using a 4k7Ω resistor.
Matrix 6
4К7 4K7 4К7 4K7
4K7 4К7
PIR PIR
Magnetic Contact
Detector Detector
Zone 1 Zone 2 Zone 6
Matrix 816
4k7 4k7
4k7 4k7
PIR
PIR
Detector
Detector
Zone 1
Zone 2
RINS546-10 Page 17
