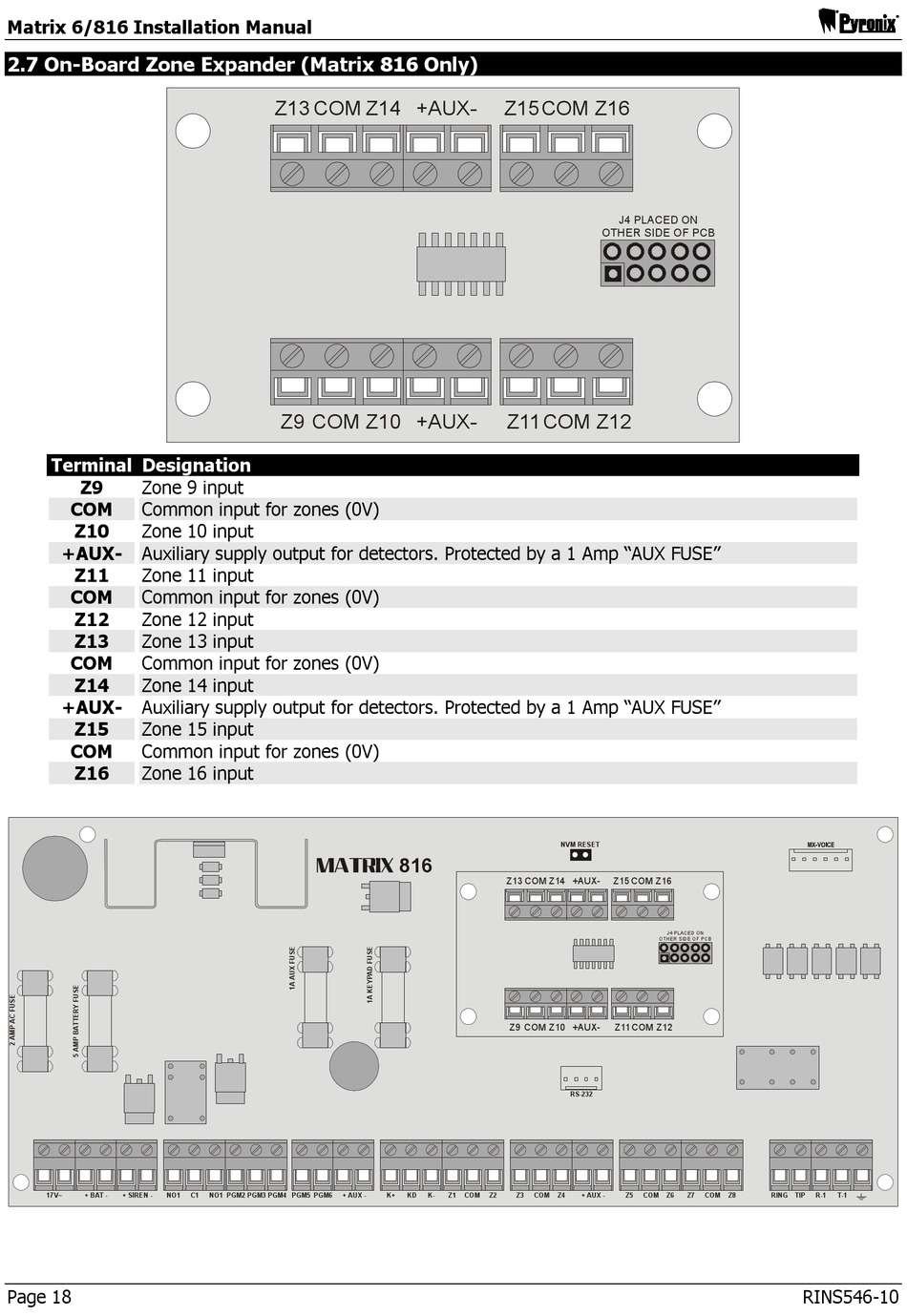

2.7 On-Board Zone Expander (Matrix 816 Only)

Terminal Designation
Z9 Zone 9 input
COM Common input for zones (0V)
Z10 Zone 10 input
+AUX- Auxiliary supply output for detectors. Protected by a 1 Amp "AUX FUSE"
Z11 Zone 11 input
COM Common input for zones (0V)
Z12 Zone 12 input
Z13 Zone 13 input
COM Common input for zones (0V)
Z14 Zone 14 input
+AUX- Auxiliary supply output for detectors. Protected by a 1 Amp "AUX FUSE"
Z15 Zone 15 input
COM Common input for zones (0V)
Z16 Zone 16 input
