Matrix 6/816 Installation Manual

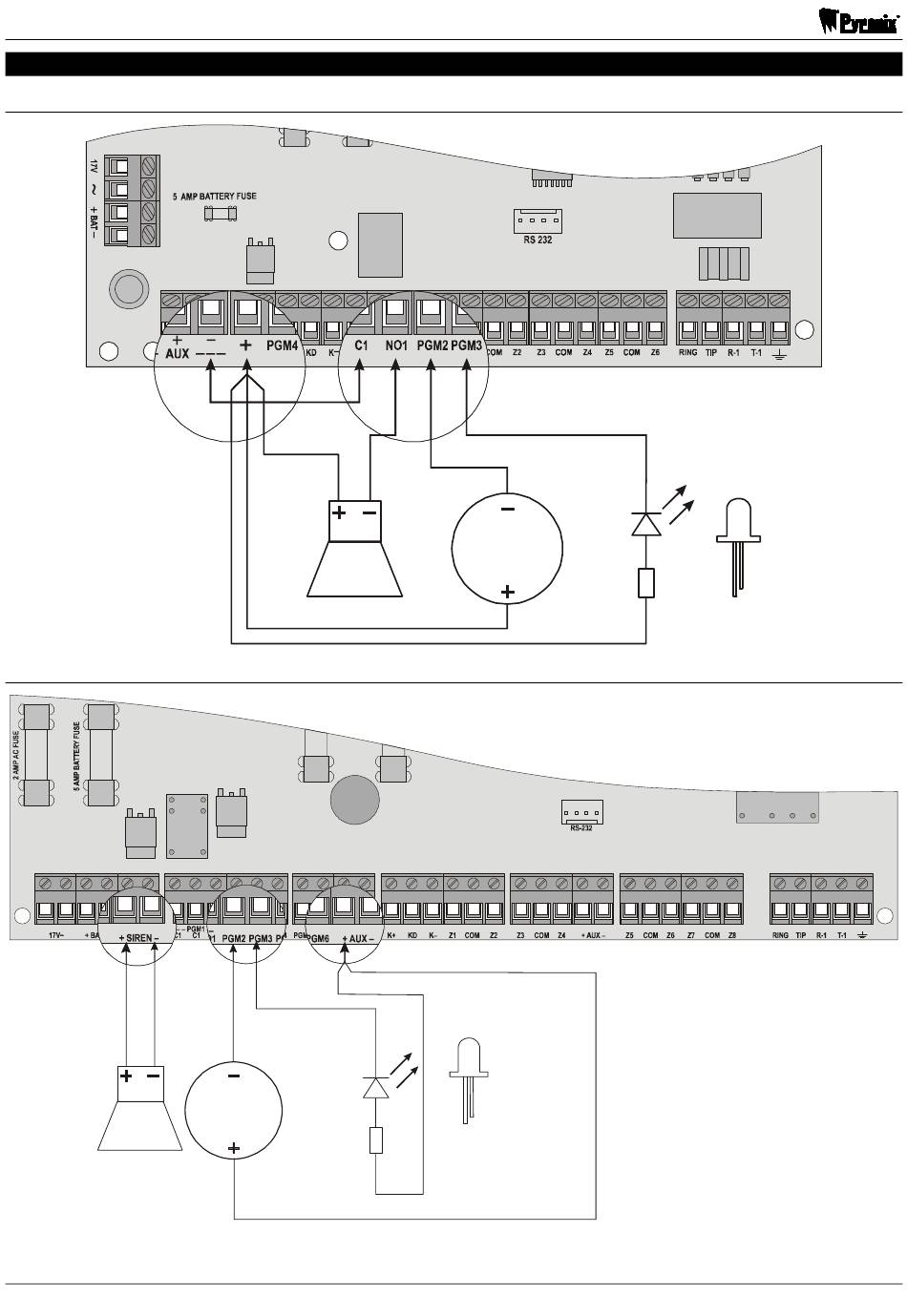

2.9 PGM Output Wiring

2.9.1 Matrix 6 Buzzer, LED & Any Siren Wiring
2.9.2 Matrix 816 – Monitored Siren (and Buzzer & LED)
Siren 12 V
NOTE: If a monitored siren is not to be used, either programme PGM 7 as Not Used, or link out
the + SIREN – terminals with a 1KΩ resistor.
Page 20
Siren 12
К(-)
Buzzer
А(+)
12 V
1К
Strobe
lamp
12 V
V
К(-)
А(+)
LED
К(-)
А(+)
К(-)
1К
А(+)
LED
RINS546-10
