Matrix 6/816 Installation Manual

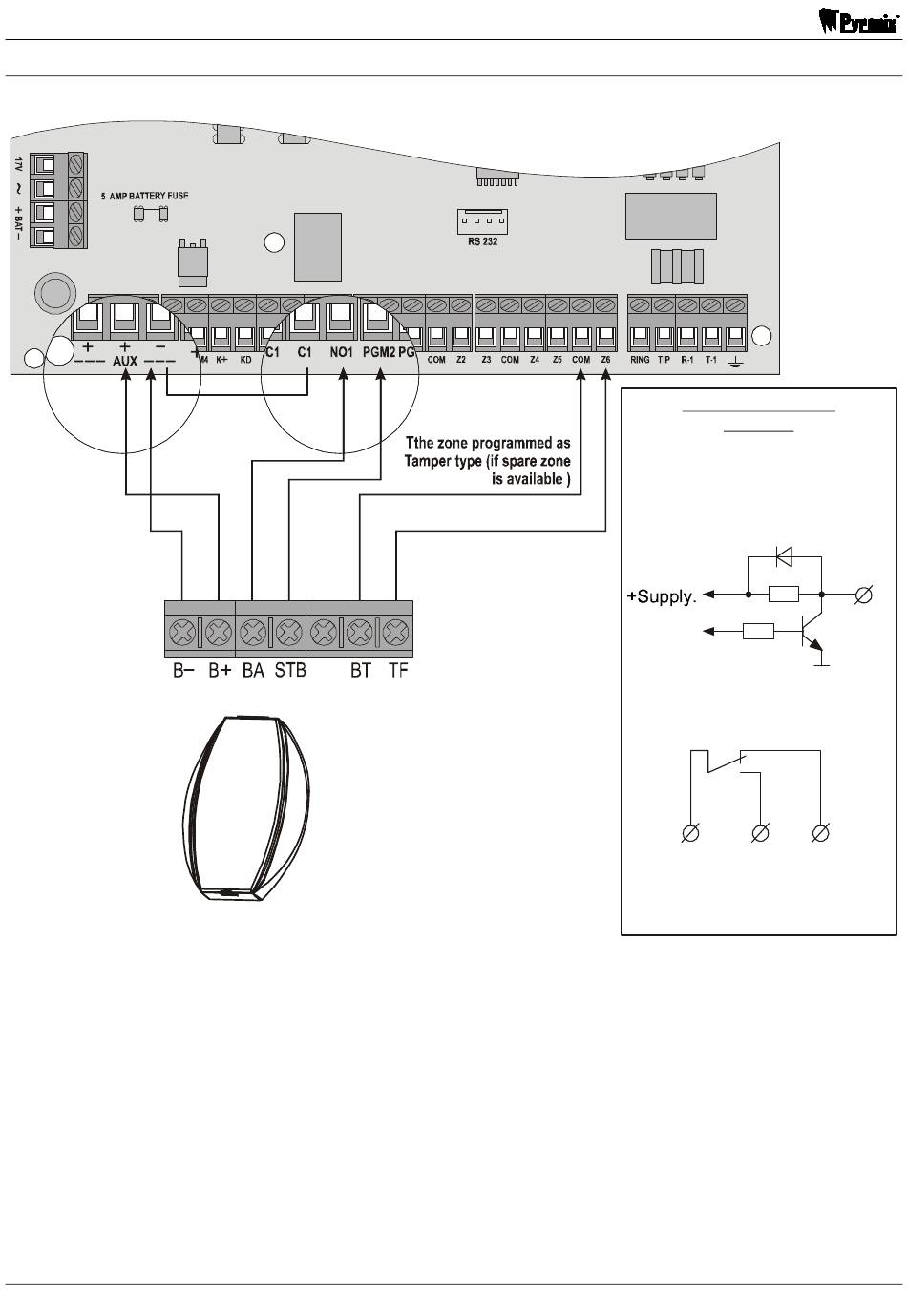

2.9.4 Belle Wiring
Matrix 6
NOTE: PGM1 must be programmed as "External Bell". PGM 2 (in this example) must be
programmed as "Follow Strobe".
Page 22
BELLE
external
с
ombined
sounder
PGM output stage
diagram
Transistor output
PGM 2, PGM 3 and PGM 4
10К
4К7
Relay output
PGM 1
С1
NO1 NC1
Contacts position when output is off
(
relay coil is de-energized
RINS546-10
PGM
)
