Table 29. Top view locations (continued)
Index number
14
15
16
17
18
19

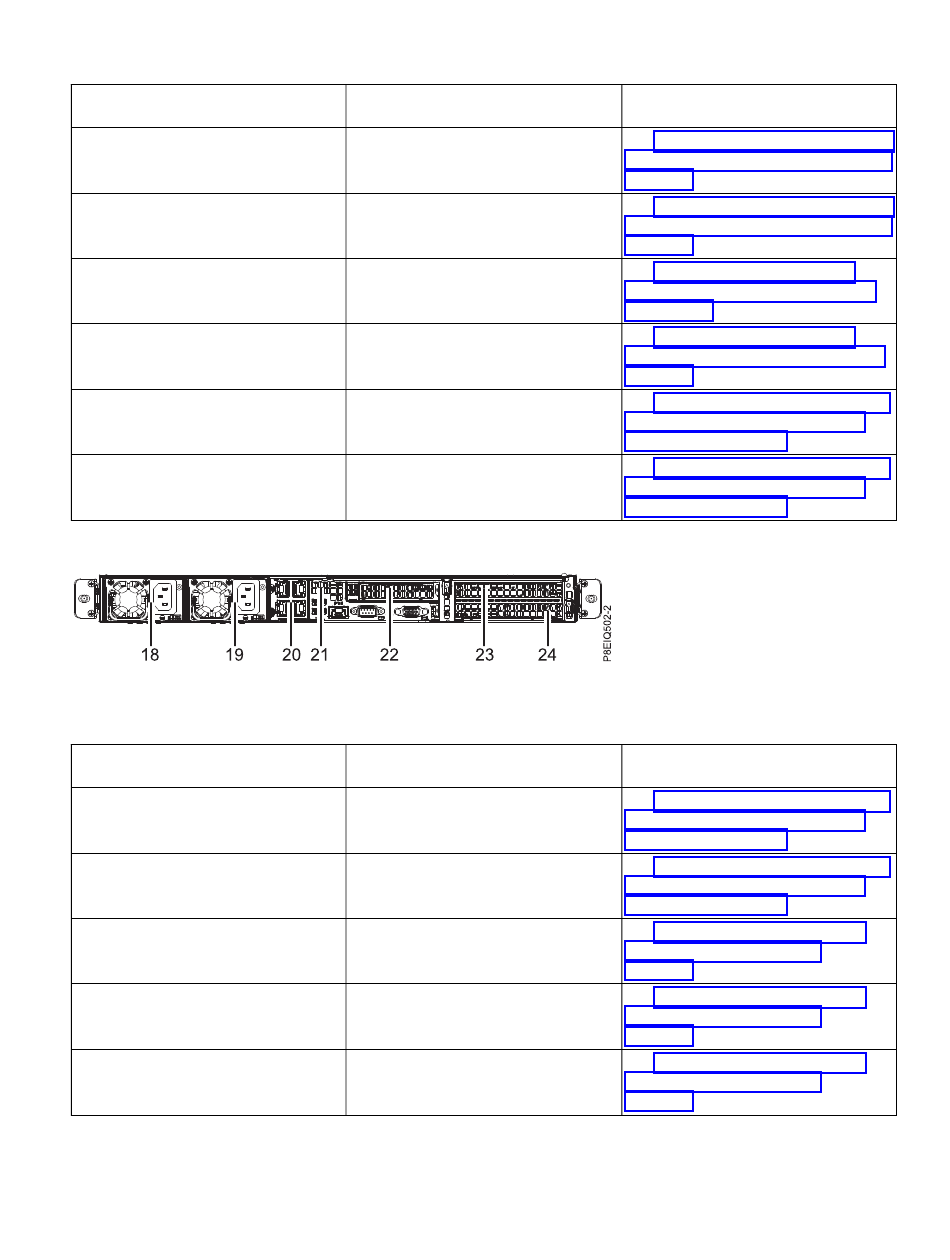

Figure 3. Rear view
Table 30. Rear view locations
Index number
18
19
20
21
22
FRU description
CPU 2
CPU 1
Time-of-day battery
System backplane
PSU 1
PSU 2
FRU description
PSU 1
PSU 2
PCIe adapter 1 (UIO Network)
PCIe adapter 2 (UIO Slot1)
PCIe adapter 3 (PLX Slot1)
FRU removal and replacement
procedures
See Removing and replacing a system
processor module for the 8001-12C or
8005-12N.
See Removing and replacing a system
processor module for the 8001-12C or
8005-12N.
See Removing and replacing the
time-of-day battery in the 8001-12C
or 8005-12N.
See Removing and replacing the
system backplane in the 8001-12C or
8005-12N.
See Removing and replacing a power
supply in the 8001-12C, 8001-22C,
8005-12N, or 8005-22N.
See Removing and replacing a power
supply in the 8001-12C, 8001-22C,
8005-12N, or 8005-22N.
FRU removal and replacement
procedures
See Removing and replacing a power
supply in the 8001-12C, 8001-22C,
8005-12N, or 8005-22N.
See Removing and replacing a power
supply in the 8001-12C, 8001-22C,
8005-12N, or 8005-22N.
See Removing and replacing PCIe
adapters in the 8001-12C or
8005-12N.
See Removing and replacing PCIe
adapters in the 8001-12C or
8005-12N.
See Removing and replacing PCIe
adapters in the 8001-12C or
8005-12N.
Finding parts and locations
75
