IBM

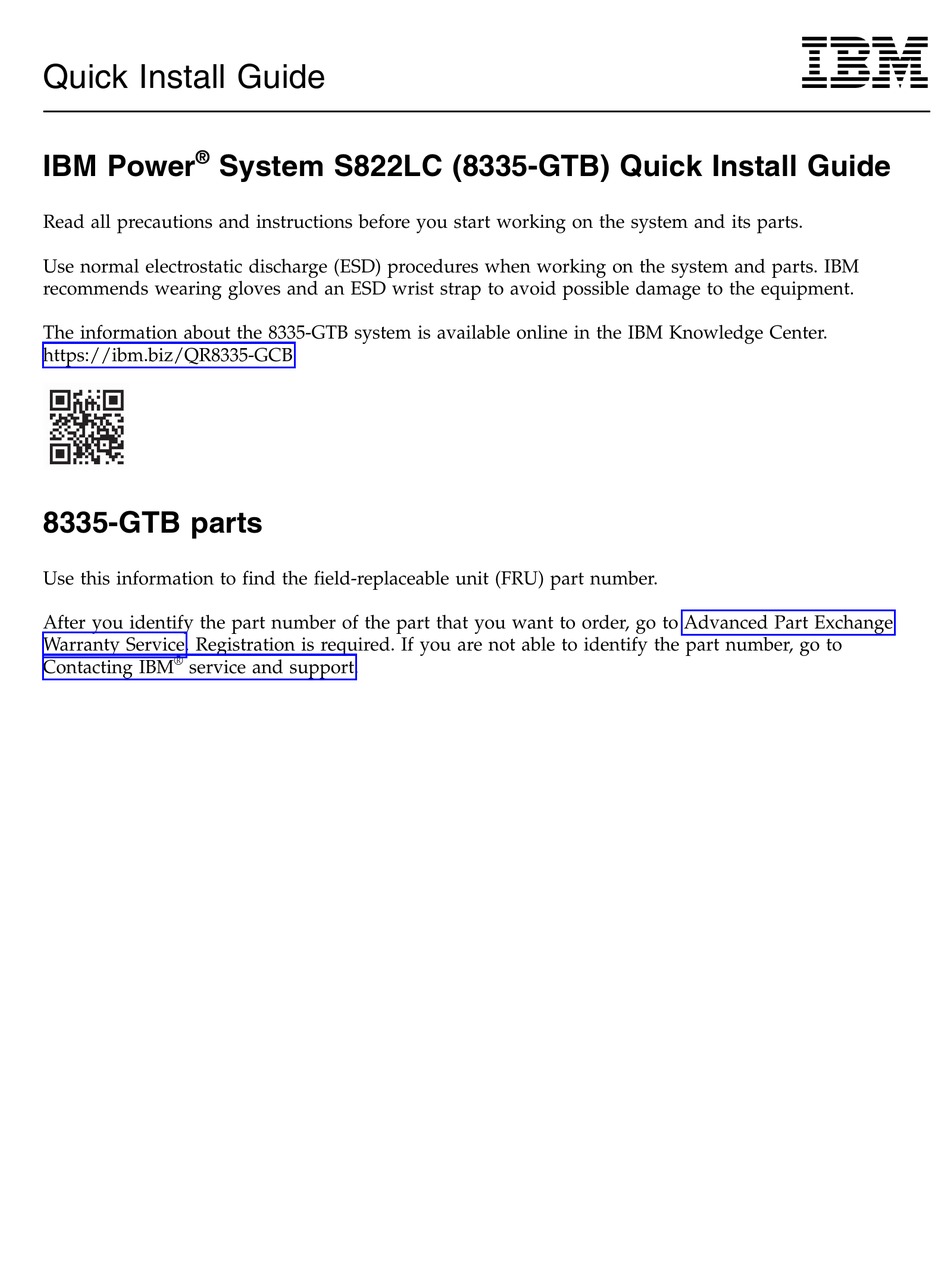

Quick Install Guide
®
IBM Power
System S822LC (8335-GTB) Quick Install Guide
Read all precautions and instructions before you start working on the system and its parts.
Use normal electrostatic discharge (ESD) procedures when working on the system and parts. IBM
recommends wearing gloves and an ESD wrist strap to avoid possible damage to the equipment.
The information about the 8335-GTB system is available online in the IBM Knowledge Center.
https://ibm.biz/QR8335-GCB
8335-GTB parts
Use this information to find the field-replaceable unit (FRU) part number.
After you identify the part number of the part that you want to order, go to Advanced Part Exchange
Warranty Service. Registration is required. If you are not able to identify the part number, go to
®
Contacting IBM
service and support.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Power System S822LC and is the answer not in the manual?

Questions and answers

Related Manuals for IBM Power System S822LC

Summary of Contents for IBM Power System S822LC

  • Page 1 Read all precautions and instructions before you start working on the system and its parts. Use normal electrostatic discharge (ESD) procedures when working on the system and parts. IBM recommends wearing gloves and an ESD wrist strap to avoid possible damage to the equipment.
  • Page 2 Rack final assembly Figure 1. Rack final assembly Table 1. Rack final assembly part numbers Units per Index number Part number assembly Description 45W8836 Fixed rail kit - contains left and right fixed rails and attaching screws 00E4260 Slide rail kit - contains left and right slide rails and attaching screws 74Y9063 Cable management arm assembly...
  • Page 3 System parts (air-cooled and water-cooled systems) Figure 2. System parts (air-cooled and water-cooled systems) Table 2. System parts (air-cooled and water-cooled systems) Units per Index number Part number assembly Description Top access cover assembly 2 - 3 PCI adapters. Use the feature type of the adapter to find the FRU number in PCIe adapters for the 8335-GTB.
  • Page 4 Table 2. System parts (air-cooled and water-cooled systems) (continued) Units per Index number Part number assembly Description 00E4704 Power riser with time-of-day battery slot Note: The power riser part number does not include the time-of-day battery. The time-of-day battery is a CR2450N lithium battery.
  • Page 5 Additional system parts (air-cooled system) Figure 3. Additional system parts (air-cooled system) Table 3. Additional system parts (air-cooled system) Index number Part number Units per assembly Description Graphics processing unit (GPU) air baffles 01EM024 Rear GPU kit (includes GPU card, air baffle, heat sink, and thermal interface material (TIM)) 01EM025 Front GPU kit (includes GPU card, air baffle, heat sink,...
  • Page 6 Table 3. Additional system parts (air-cooled system) (continued) Index number Part number Units per assembly Description 00E5185 8 core 3.259 GHz system processor module kit (includes system processor module, processor tray, 4mm hex driver, module replacement tool, and air pump) 00E5187 10 core 2.860 GHz system processor module kit (includes system processor module, processor tray, 4mm hex driver,...
  • Page 7 Additional system parts (water-cooled system) Figure 4. Additional system parts (water-cooled system) Table 4. Additional system parts (water-cooled system) Index number Part number Units per assembly Description 00E4570 System backplane kit (includes module removal tool, 4 mm hex key, magnetic screwdriver, air pump, and lid removal tool) Note: When replacing the system backplane kit in a water-cooled 8335-GTB, you also need the System...

  • Page 8: Miscellaneous Parts

    Table 4. Additional system parts (water-cooled system) (continued) Index number Part number Units per assembly Description 00E5185 8 core 3.259 GHz system processor module kit (includes system processor module, processor tray, 4mm hex driver, module replacement tool, and air pump) 00E5187 10 core 2.860 GHz system processor module kit (includes system processor module, processor tray, 4mm hex driver,...
  • Page 9 Intelligent Platform Management Interface (IPMI) serial Ethernet. Use the left Ethernet port for the BMC/IPMI interface (as eth0). Use the right Ethernet port for any direct OS usage (as eth1). USB 3.0 Installing and removing IBM Power System S822LC (8335-GTB) parts...
  • Page 10 Figure 6. Removing a power supply from the system Figure 7. Removing the cover Figure 8. Disk drive lock detail Figure 9. Removing a fan from the system...
  • Page 11 Figure 11. Removing the fan power cable from the system Figure 10. Removing the disk and fan signal cable Figure 12. Screw locations for the disk drive and fan card Figure 13. Removing the disk drive and fan card...
  • Page 12 Figure 14. Remove eight GPU screws per GPU; do not loosen the four spring-loaded screws Figure 15. Removing a memory riser from the system Figure 16. Removing memory DIMM from a slot on the riser...
  • Page 13 Figure 18. Removing a power riser from the system Figure 17. Removing a PCIe adapter Figure 20. Removing the BMC card Figure 19. Removing the time-of-day battery from the power riser...
  • Page 14 Figure 21. Remove the middle support and screw locations Figure 22. System backplane screw locations Figure 23. Lifting out the system backplane...
  • Page 15 Figure 24. Removing the heat sink Figure 25. Removing dust and debris from the system processor module area Figure 26. Lowering the removal tool onto the system processor module Figure 27. Locking the system processor module into the tool...
  • Page 16 Figure 28. Placing the tool at an angle on the top cover of Figure 29. Releasing the system processor module from the packaging the tool If the thermal interface material is damaged, replace it. Figure 31. Inspecting the gray-colored thermal interface material Figure 30.
  • Page 17 Figure 32. Installing the silver-colored TIM onto the Figure 33. Installing the new heat sink on the processor silver-colored TIM Figure 34. Installing a new gray-colored TIM onto the Figure 35. Installing the heat sink on the gray-colored TIM processor...
  • Page 18 Figure 38. Removing the cold plate Figure 37. Loosening the cold plate retainer screw This October 24, 2017 edition applies to IBM Power Systems servers that contain the POWER8 processor and to all associated models. © Copyright IBM Corporation 2016, 2017.

This manual is also suitable for:

Power system 8335-gtb
