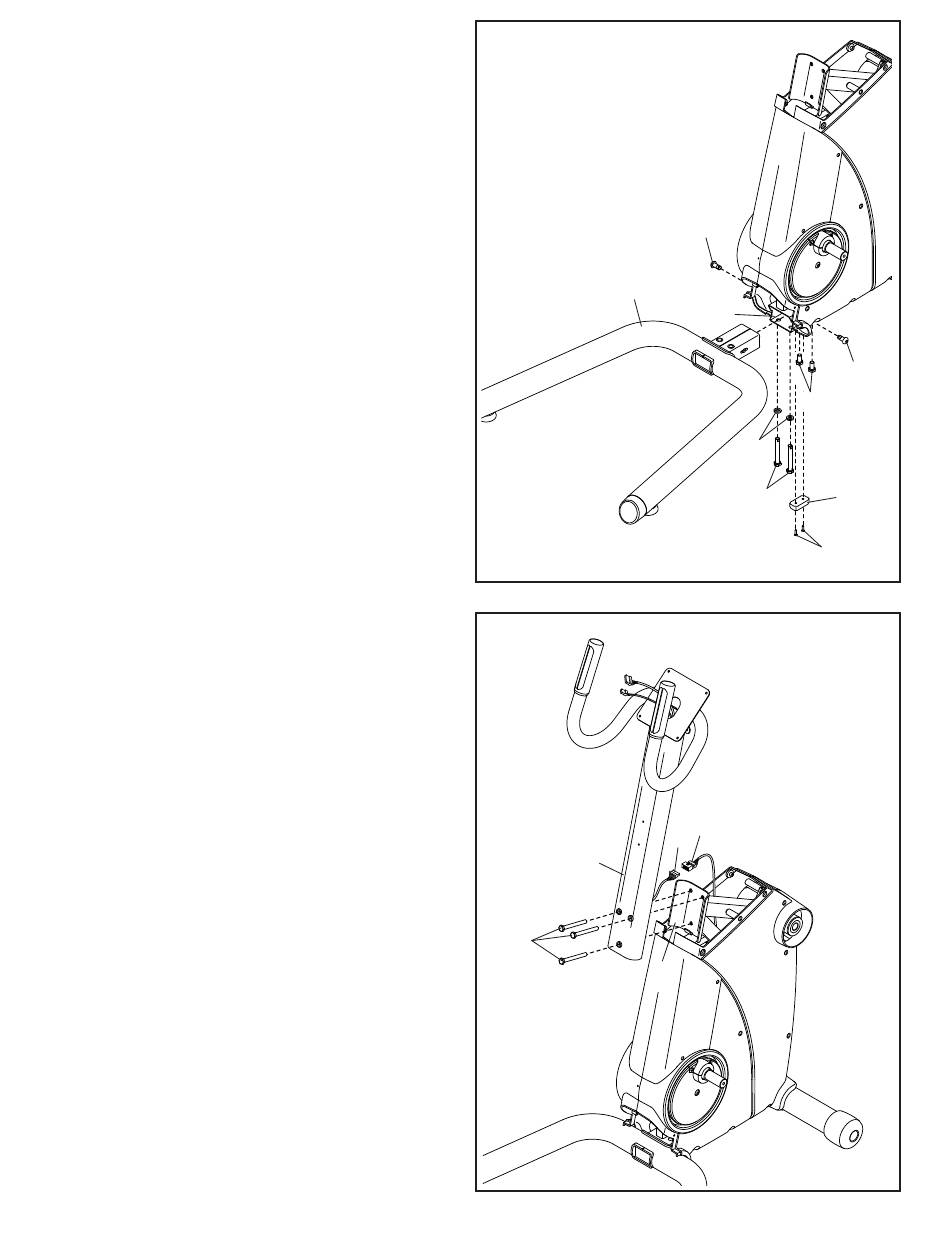

3. Place some of the packaging materials under the
rear of the Frame (1). Have a second person
hold the Frame to prevent it from tipping.
Tip: Do not confuse the M10 x 20mm Screws
(74) with the M10 x 20mm Hex Screws (75).
Attach the Base (2) to the Frame (1) with two
M10 x 68mm Screws (86), two M10 Washers
(91), and two M10 x 20mm Hex Screws (75); do
not fully tighten the Screws yet.
Finish attaching the Base (2) to the Frame (1)
with two M10 x 20mm Screws (74).
Then, fully tighten all the Screws (74, 75, 86).
Attach the Foot (34) to the underside of
the Frame (1) with two M4 x 19mm Flange
Screws (99).
Then, remove the packaging materials from
beneath the Frame (1).
4. Tip: Avoid pinching the Upper and Lower
Wires (6, 98).
With the help of a second person, attach
the Upright (4) to the Frame (1) with three
M8 x 72mm Screws (72); start all the Screws,
and then tighten them.
Then, connect the Upper Wire (6) in the Upright
(4) to the Lower Wire (98) in the Frame (1).
Insert the excess wire into the Frame.
