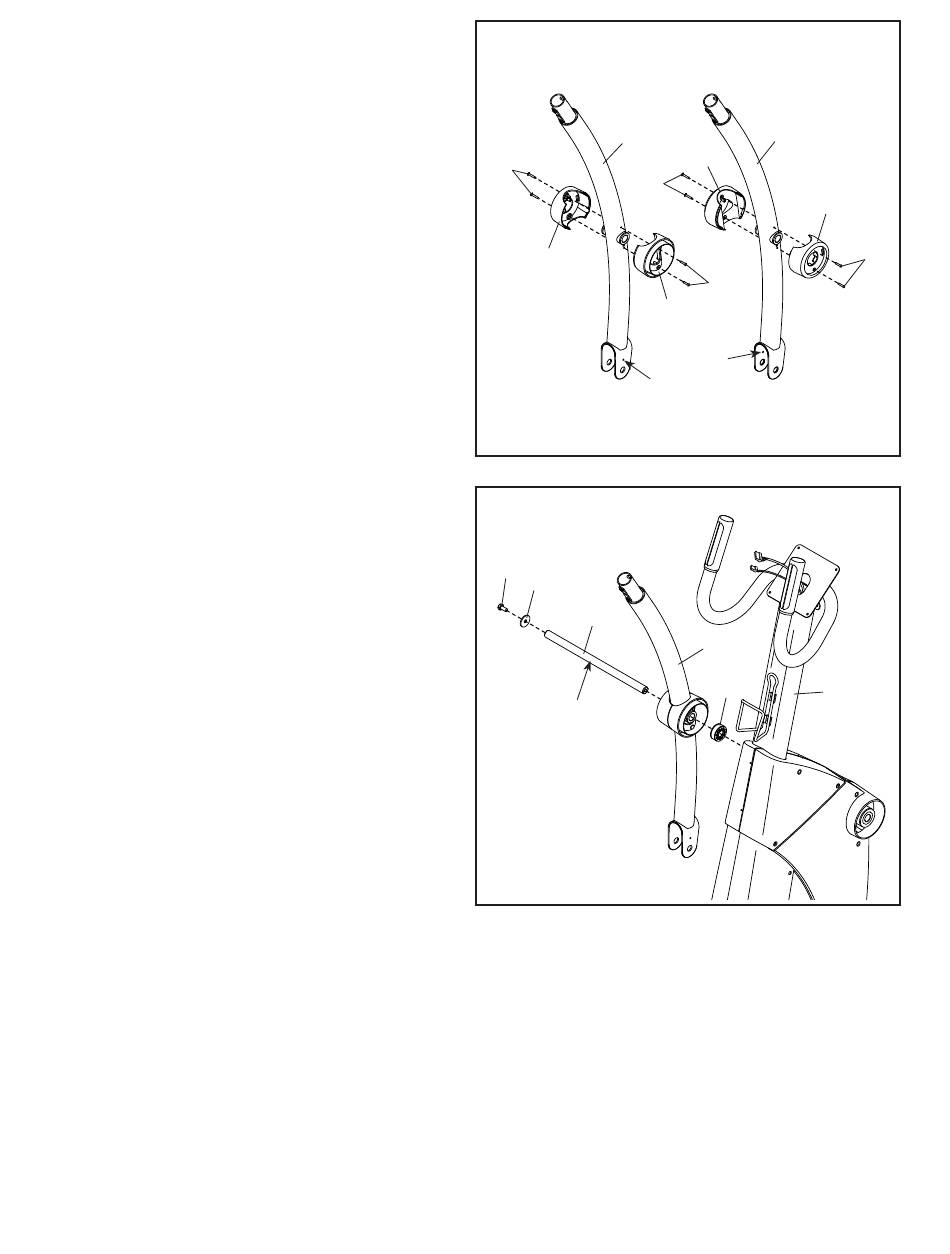

11. Identify the Left and Right Handlebar Legs
(15, 16). Then, identify the Outer and Inner Pivot
Covers (22, 23).
Orient the Right Handlebar Leg (16) so that the
small hole (C) is in the location shown. Then
orient an Outer Pivot Cover (22) and an Inner
Pivot Cover (23) around the Right Handlebar
Leg exactly as shown.
Attach the Inner Pivot Cover (23) to the Right
Handlebar Leg (16) with two M4 x 16mm
Screws (93).
Then, attach the Outer Pivot Cover (22) to the
Right Handlebar Leg (16) with two M4 x 16mm
Screws (93).
Repeat this step for the Left Handlebar
Leg (15).
12. Apply a generous amount of grease to the Pivot
Axle (83).
Insert the Pivot Axle (83) through the Upright (4)
and center it.
Next, slide a Flex Spacer (25) onto the left side
of the Pivot Axle (83).
Then, orient the Left Handlebar Leg (15) as
shown, and slide it onto the left side of the Pivot
Axle (83).
Finger tighten an M8 x 18mm Screw (97) with an
M8 x 32mm Washer (64) into the left end of the
Pivot Axle (83).
11
15
93
93
22
12
97
64
83
Grease
11
16
23
22
93
23
C
C
15
25
4
93
