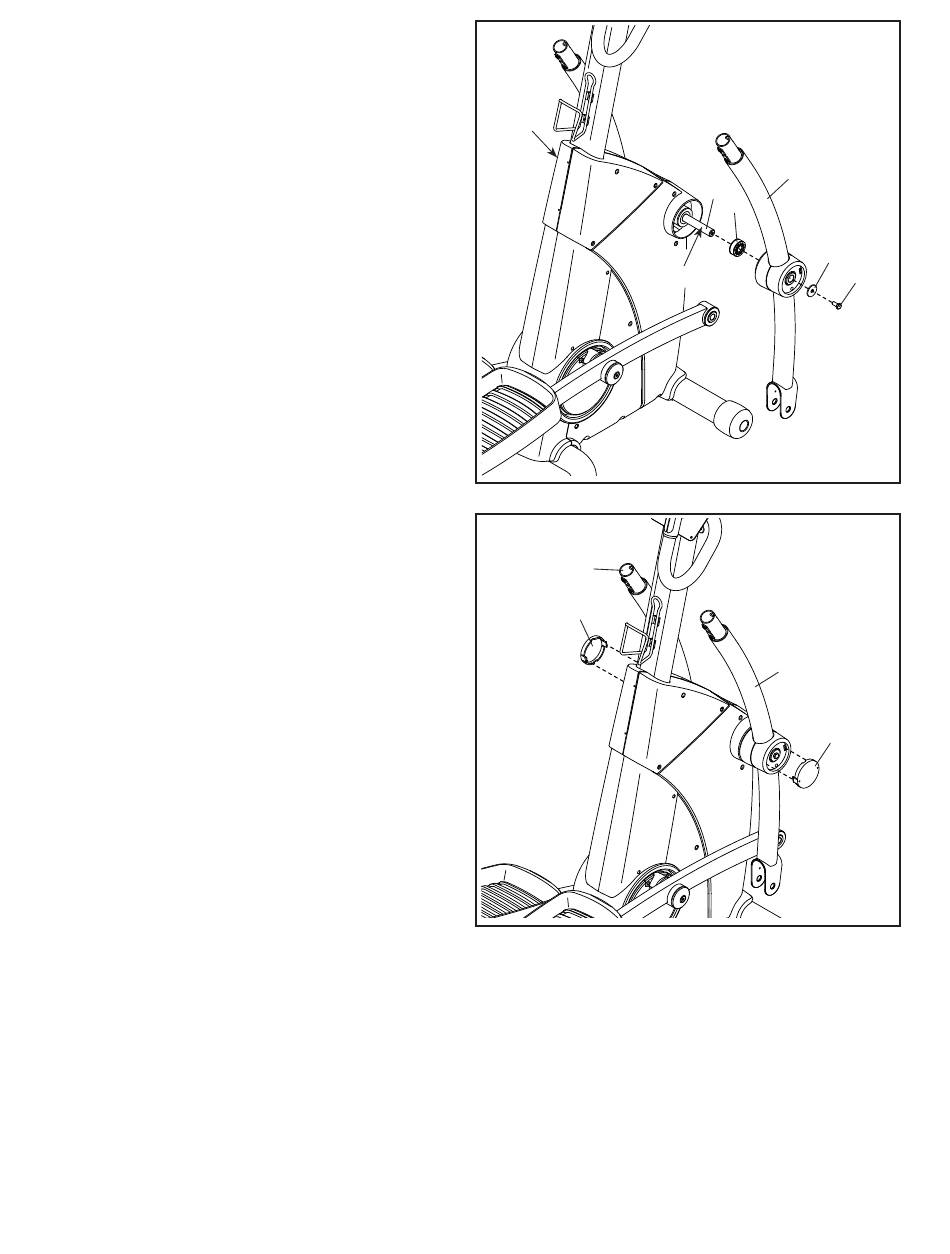

13. Apply a generous amount of grease to the Pivot

Axle (83).

Slide a Flex Spacer (25) onto the right side of
the Pivot Axle (83).
Next, orient the Right Handlebar Leg (16) as
shown, and slide it onto the right side of the
Pivot Axle (83).
Finger tighten an M8 x 18mm Screw (97) with an
M8 x 32mm Washer (64) into the right end of the
Pivot Axle (83).
Tighten the M8 x 18mm Screws (97) in each
end of the Pivot Axle (83) at the same time.
14. Press a Pivot Shield (21) onto each Handlebar
Leg (15, 16).
13
97
14
15
21
12
16
83
25
64
Grease
16
21
97
