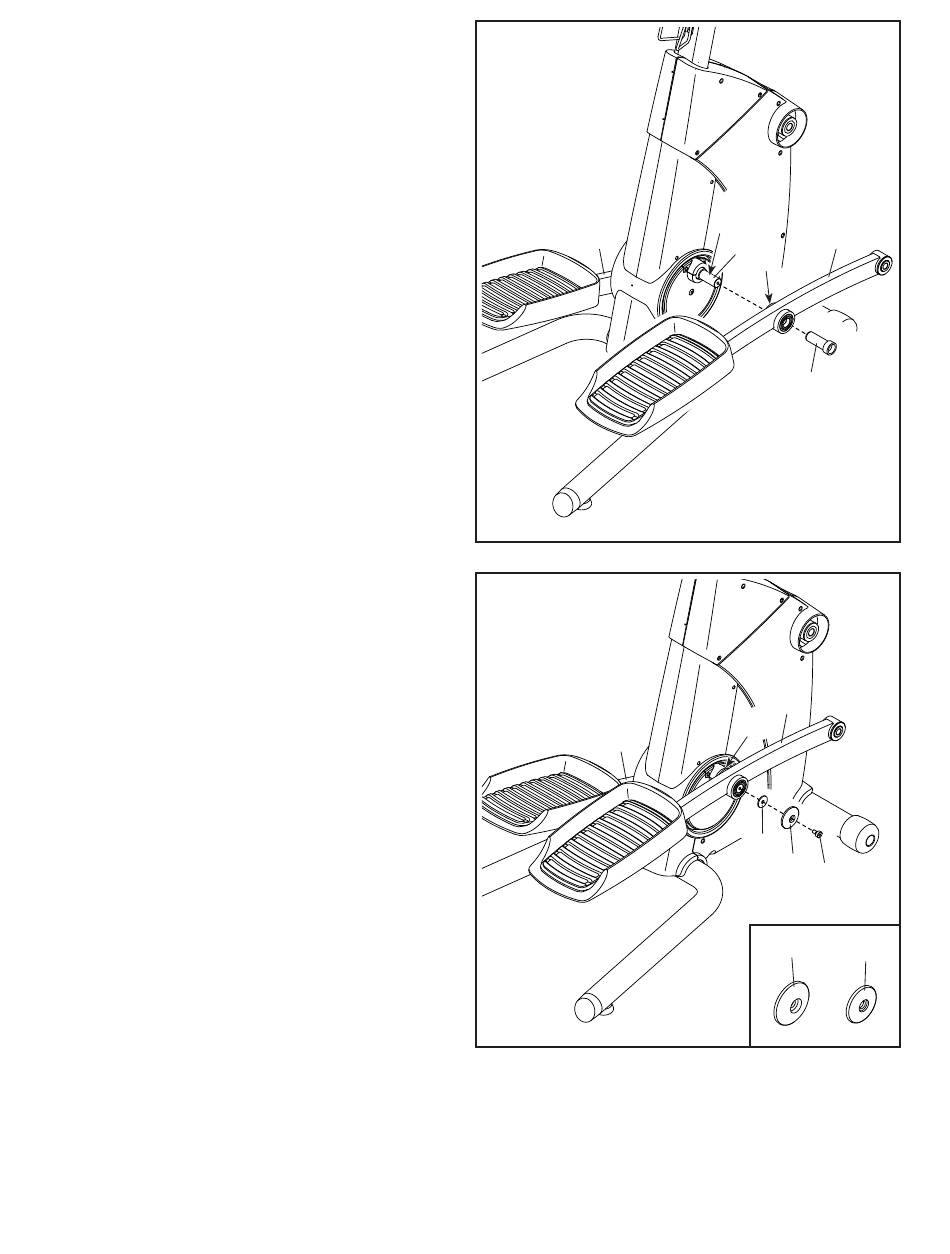

9. Locate the pedal leg assembly tool (A).
Using a plastic bag to keep your fingers clean,
apply some of the included grease to the right
Crank Arm (39).
IMPORTANT: Make sure that the parts inside
the Right Pedal Leg (18) do not fall out.
Insert your finger into the Right Pedal Leg in the
indicated location (B) and hold the parts in place.
Then, insert the pedal leg assembly tool (A)
into the Right Pedal Leg (18) from the direction
shown. Tip: It may be helpful to turn the
pedal leg assembly tool side to side as you
insert it.
Then, slide the Right Pedal Leg (18) onto the
right Crank Arm (39); the pedal leg assembly
tool (A) will be pushed out as you do this.
Repeat this step for the Left Pedal Leg (17).
10. See the inset drawing. Identify the Crank
Caps (56), which are larger than the
Leg Caps (55).
Attach the Right Pedal Leg (18) to the right
Crank Arm (39) with an M8 x 16mm Screw
(68), a Crank Cap (56), and an M8 x 32mm
Washer (64).
Repeat this step to attach the Left Pedal
Leg (17).
