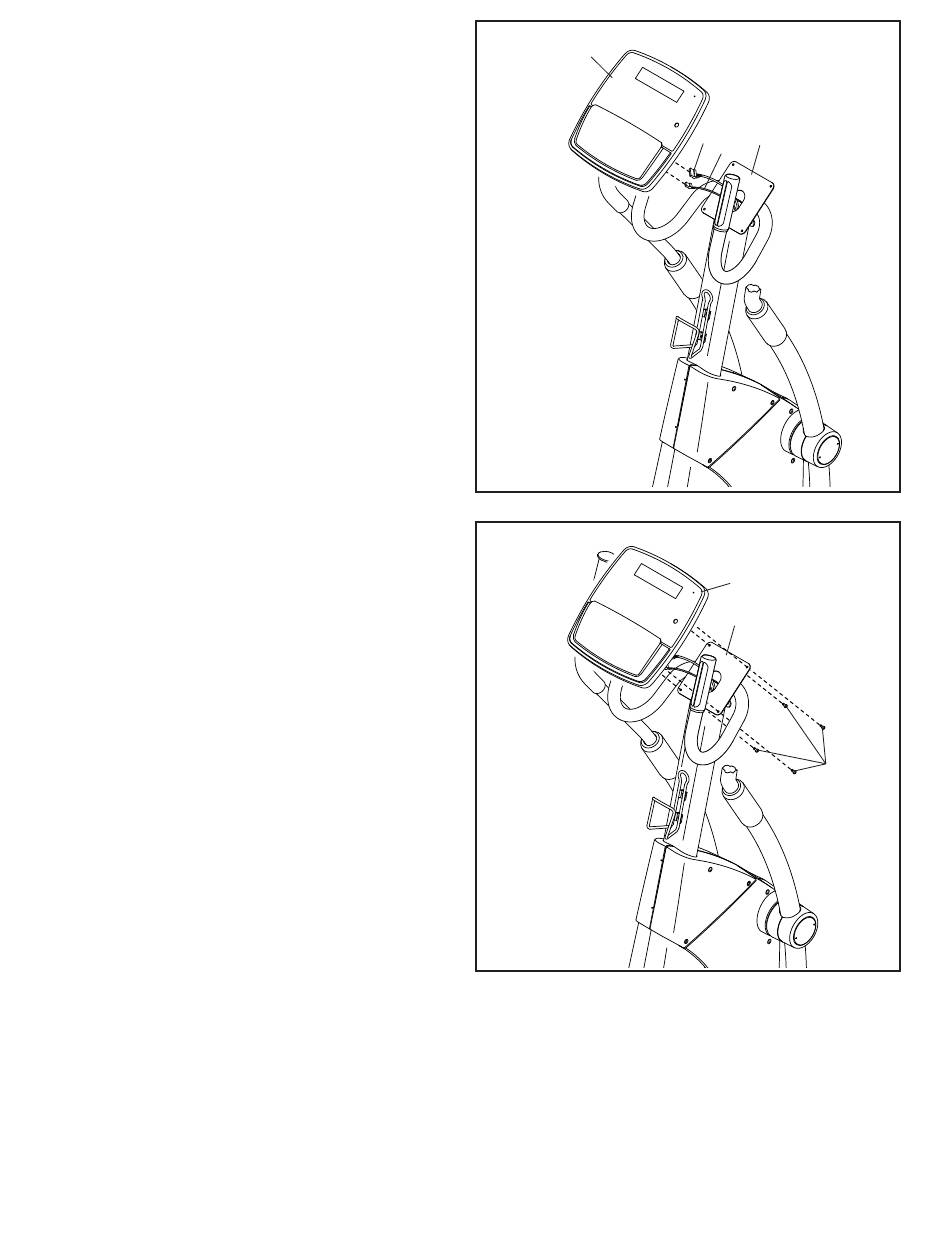

17. While a second person holds the Console (5)
near the Upright (4), plug the Upper Wire (6) and
the Pulse Wire (101) into the receptacles on the
Console.
The connectors on the Upper Wire (6) and the
Pulse Wire (101) should slide easily into the
receptacles and snap into place. If a connector
does not slide easily into a receptacle, turn the
connector and try again. If you do not connect
the connectors properly, the Console (5) may
become damaged when you use the trainer.
Insert the excess wire into the Upright (4).
18. Tip: Avoid pinching the wires. Attach
the Console (5) to the Upright (4) with four
M4 x 16mm Screws (93); start all the Screws,
and then tighten them.
