4. Twist the cage nuts onto the screws from behind the rack ears.
The flat edges of the cage nuts should be aligned with the rack post to prevent the
server from scraping against it.

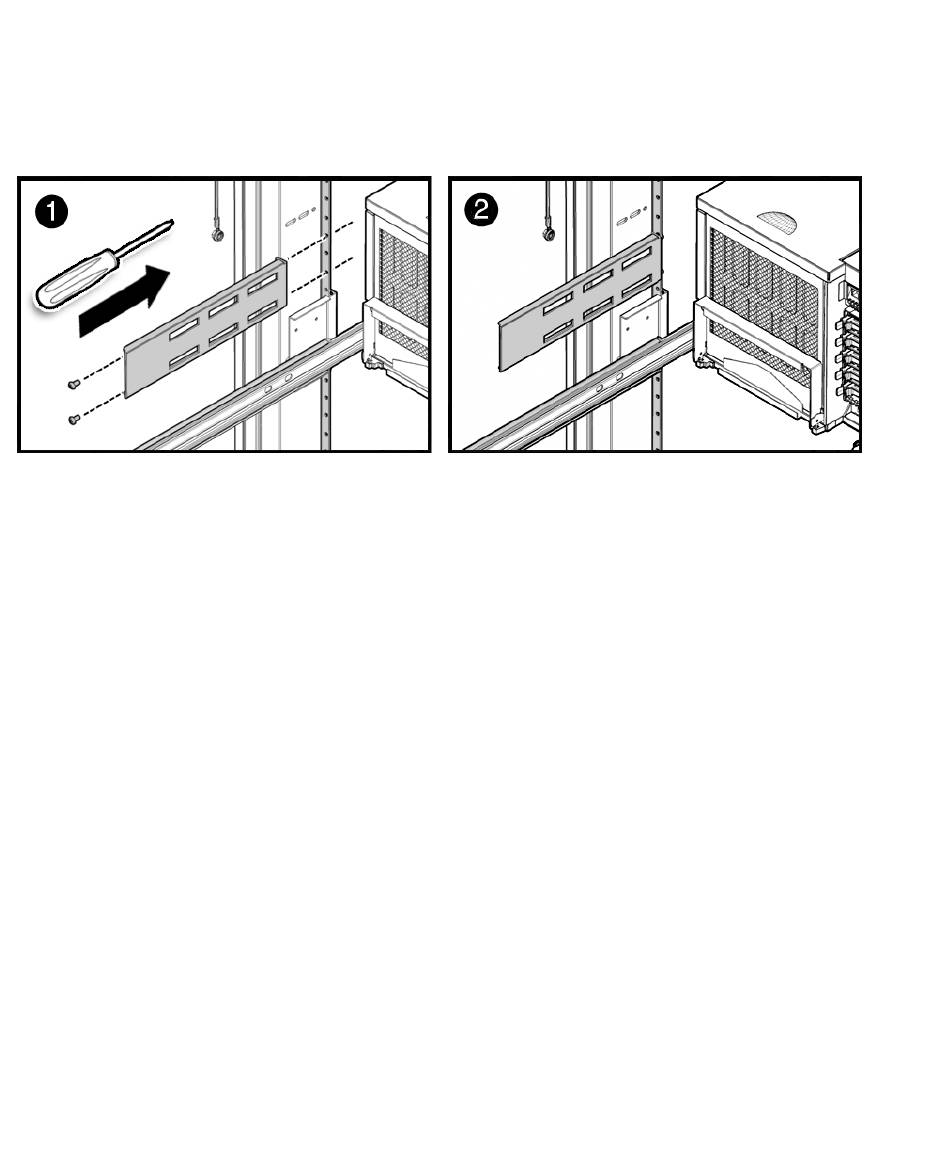

Installing the Extra Brackets in a Sun Rack 1000
FIGURE 5
5. Insert velcro strips in the desired slots of the bracket to hold back cables.
Built-in cutouts along the sides of the Sun Rack can also be used to insert velcro
strips to hold back cables, as desired.
6. Slide the server into the equipment rack.
7. Replace the rack stabilizer to its original position.
10 Sun SPARC Enterprise M4000/M5000 Servers Product Notes for XCP Version 1060 • November 2007
Threaded rack ears Threaded rack ears
Cage nuts need to be aligned Cage nuts need to be aligned
to prevent scraping server to prevent scraping server
