4.4 ASSEMBLY: SYSTEM WITH MULTIPLE POWER UNITS
This section describes assembly for DM Systems with multiple Power Units. This configuration can adjust
heavy or oversized tables such as conference tables without affecting performance. The system consists of
groups of Actuators. Each Power Unit powers one group of Actuators. Groups are connected by Sync Cables.
The Table Top and Height-Adjustable Columns are supplied by the Reseller.

4.4.1 REQUIRED COMPONENTS

4 to 8 Height-Adjustable Columns with DYNAMIC MOTION Actuators
At least 1 User Interface (Handset or other)
2 to 4 Power Hubs
1 to 3 Sync Cables
Optional: Branch Cable for additional connections

4.4.2 CONNECTING THE COMPONENTS

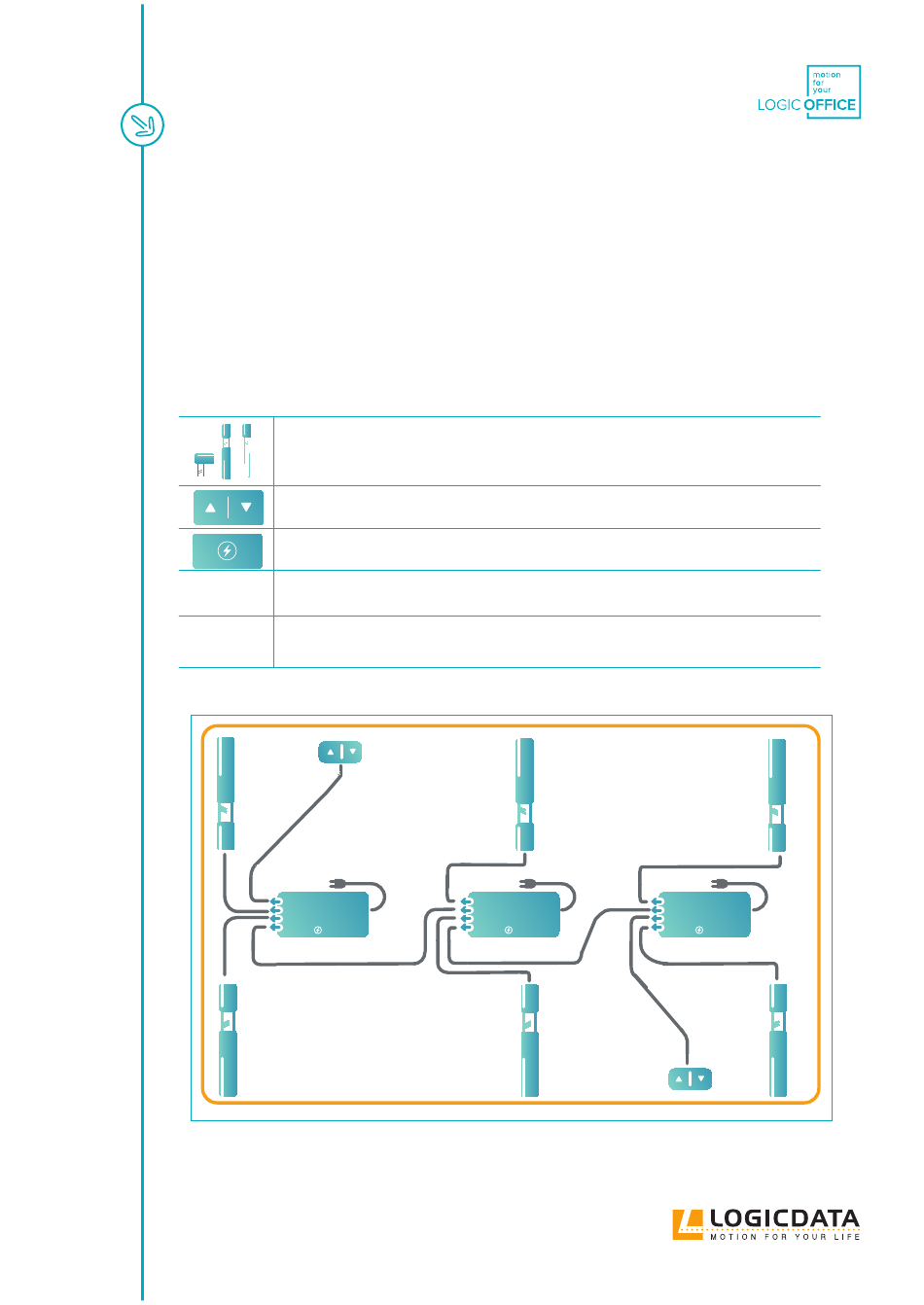

Fig. 4: Connection map (table system with multiple Power Units. 3 Actuator Groups, 6 Height
Adjustable Columns, 3 Power Units (Power Hubs), 2 User Interfaces)
