7 CHANGING THE TABLE SYSTEM
7.1
REPLACING AN ACTUATOR
1.
(If a Power Hub is Used) Disconnect the Power Unit from the Mains
2.
Disconnect the Actuator from the Power Unit
3.
Remove the Height-Adjustable Column from the Table Top by undoing the fastening screws
4.
Remove the Actuator from the Height-Adjustable Column by undoing the fastening screws
5.
Mount the new Actuator into the Height-Adjustable Column. Consult the relevant Operating
Manual for exact instructions and safety information
6.
Mount the Height-Adjustable Column back onto the Table Top
7.
Plug the Actuator back into the Power Unit
8.
(If a Power Hub is Used) Reconnect the system to the Mains
7.1.1
UNPLUGGING THE CABLE FROM THE ACTUATOR
Risk of minor or moderate injury through electric shocks
CAUTION
Inserting foreign objects into connectors may lead to minor or moderate injury
through electric shocks.
•
Disconnect the Actuator from the Power Unit before unplugging the Cable.
Unplugging the Actuator Cable incorrectly may damage the connectors irreparably.
NOTICE
•
Do not attempt to remove the Actuator Cable by hand
•
Read the instructions below in full
1.
(If a Power Hub is Used) Disconnect the Power Unit from the Mains
2.
Disconnect the Actuator from the Power Unit and wait for residual voltage to dissipate
3.
Insert a screwdriver into the gap behind the cable until it reaches the bottom of the connector
4.
Use the screwdriver to lever the Actuator Plug gently upwards and out of the connector
Fig. 7:
Removing the Actuator Cable
7.2 REPLACING A USER INTERFACE
1.
(If a Power Hub is Used) Disconnect the Power Unit from the Mains
2.
Disconnect the User Interface from the Power Unit
3.
Remove the User Interface from the Table Top
4.
Mount the new User Interface onto the Table Top (use the User Interface's Manual to help you)
5.
Plug the User Interface back into the Power Unit
6.
(If a Power Hub is Used) Reconnect the system to the Mains
DYNAMIC MOTION SYSTEM - SYSTEM MANUAL // PAGE 24

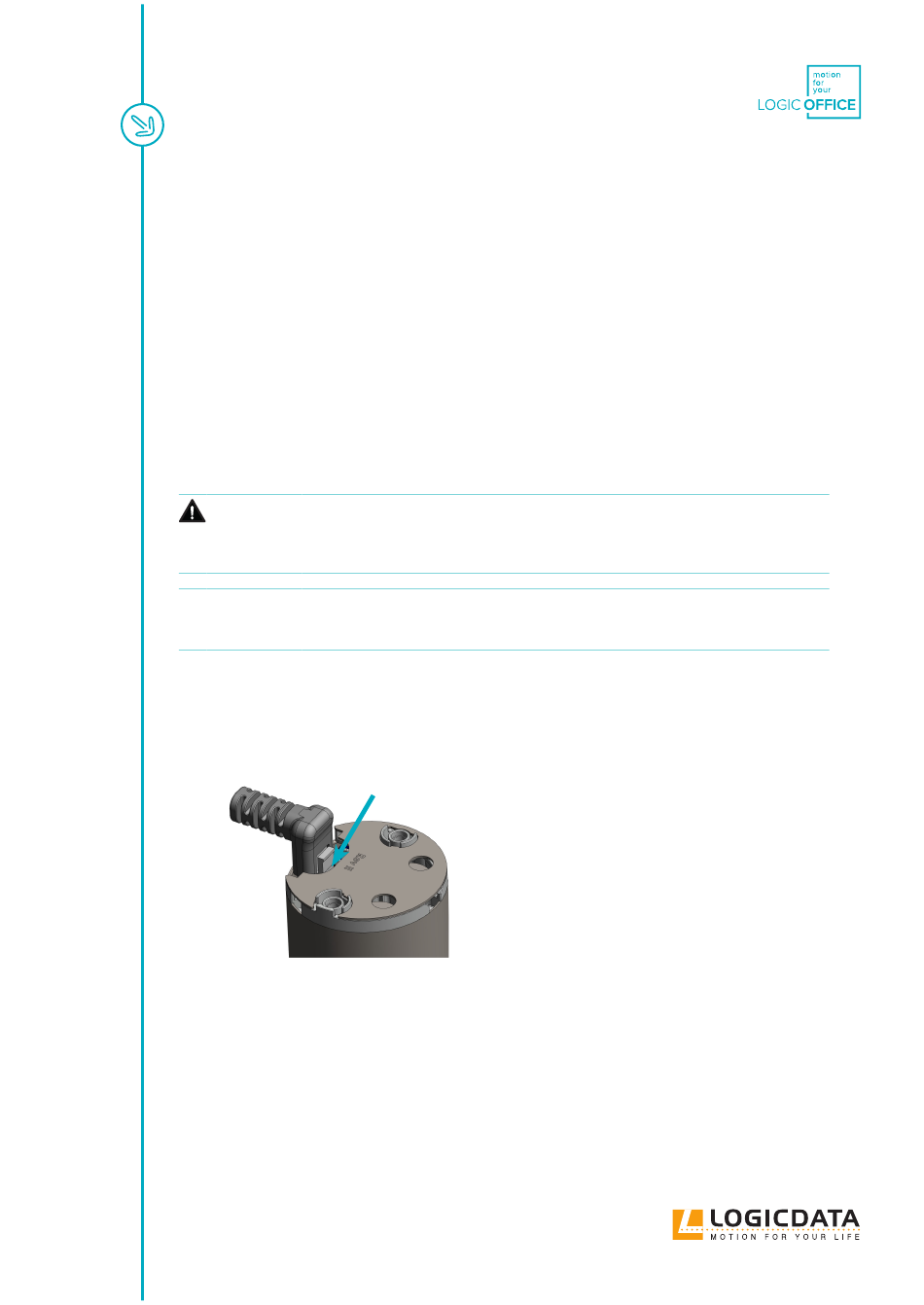

Insert screwdriver here
