- Page 1 MANUAL Document Version 1.0 / May 2019 Valid for: HSU-C-FL-LD...
- Page 2 HSU - MANUAL // PAGE 2 HSU - Operating Manual Document Version 1.0 / May 2019 This document was originally published in English. LOGICDATA Electronic & Software Entwicklungs GmbH Wirtschaftspark 18 8530 Deutschlandsberg Austria Phone: +43 (0) 3462 51 98 0 Fax:...
-
Page 3: Table Of Contents
HSU - MANUAL // PAGE 3 CONTENTS General information Other applicable documents Copyright Royalty-free use of images and text Trademarks Safety Target audience General safety regulations Intended use Reasonably foreseeable misuse Explanation of symbols and signal words Liability Residual risks Skilled Persons Notes for Resellers Scope of delivery... - Page 4 HSU - MANUAL // PAGE 4 Software-Dependent Functions Disassembly Maintenance 8.3.1 Cleaning 8.3.2 Replacing a Handset Troubleshooting Disposal...
-
Page 5: General Information
Height-Adjustable Table Systems. The license does not include logos, designs, and page layout elements belonging to LOGICDATA. The Reseller may make any necessary changes to the text and images to adapt them for the purpose of end user documentation. Texts and images may not be sold in their current state, and may not be published or sublicensed digitally. -
Page 6: Safety
• Do not remove, change, bridge, or bypass any protection, safety, or monitoring equipment • Do not convert or modify any components without written approval from LOGICDATA • In the event of malfunction or damage, faulty components must be replaced immediately •... -
Page 7: Explanation Of Symbols And Signal Words
Indicates important tips for handling the product. INFO 2.6 LIABILITY LOGICDATA products comply with all currently applicable health and safety regulations. However, risk can result from incorrect operation or misuse. LOGICDATA is not liable for damage or injury caused by: • Improper product use •... -
Page 8: Residual Risks
HSU - MANUAL // PAGE 8 2.7 RESIDUAL RISKS Residual risks are the risks that remain after all relevant safety standards have been complied with. These have been evaluated in the form of a risk assessment. Residual risks associated with the installation of HSU Handsets are listed here and throughout this Operating Manual. -
Page 9: Notes For Resellers
2.9 NOTES FOR RESELLERS Resellers are companies that purchase LOGICDATA products for installation in their own products. For reasons of EU conformity and product safety, Resellers should provide end users INFO with an Operating Manual in their native EU official language. -
Page 10: Product

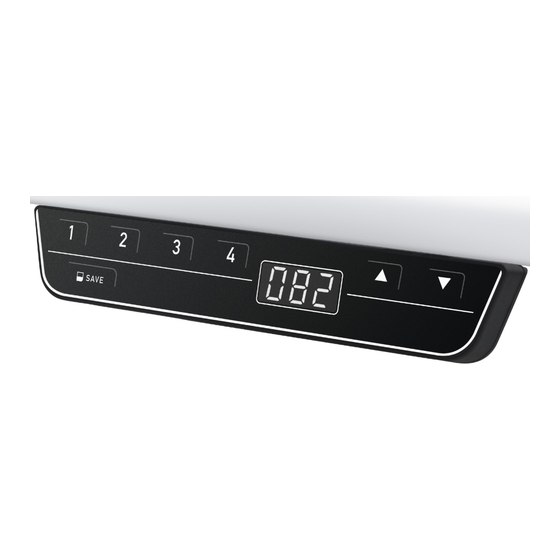

HSU - MANUAL // PAGE 10 5 PRODUCT Fig.1 shows a standard model of the HSU Handset. The exact variant of the HSU is denoted by the product's order code. Consult the accompanying data sheet to ensure that you have received the correct variant. KEY PRODUCT FEATURES Memory Position Keys Mounting Points... -
Page 11: Dimensions
HSU - MANUAL // PAGE 11 5.2 DIMENSIONS Length 71.4 mm 5.35 “ Width 136.0 mm | 2.18 " Height (to underside of Table Top) 24.5 mm | 0.96 " 136mm 5,35in Fig. 2: Product dimensions, HSU... -
Page 12: Assembly
HSU - MANUAL // PAGE 12 6 ASSEMBLY This chapter describes the process of installing the HSU Handset into the Height-Adjustable Table System. SAFETY DURING ASSEMBLY Risk of death or serious injury through electric shocks WARNING HSU Handsets are electrical devices. Basic safety precautions must be taken at all times. -
Page 13: Required Components
The mounting points for the HSU have a width of 5 mm. The Mounting Screws should hold the Handset safely and securely in place. Exact specifications can be provided by LOGICDATA on request. 6.3 PROCESS Position the Handset under the table top and mark the position of the Mounting Points. -
Page 14: Operation
This section of the Operating Manual contains a selection of instructions for operating the Table System to which the HSU Handset is connected. HSU Handsets are compatible with a large number of LOGICDATA Control Boxes. Before using the Table System, you must also read the Operating Manual for the installed Control Box, including all relevant safety information, in full. -
Page 15: Adjusting The Table Top Height
HSU - MANUAL // PAGE 15 ADJUSTING THE TABLE TOP HEIGHT CAUTION Risk of minor or moderate injury through crushing Your fingers may be crushed when you attempt to change the height of the table • Keep fingers away from moving parts •... -
Page 16: Adjusting The Table To A Memory Position
(EN 60335-1). These cannot be met by LOGICDATA Control Boxes. • LOGICDATA is not liable for injuries or damage caused by activating the double- click function Double-click the required Memory Position Key (e.g. 2) ▸ The table will move to the Memory Position. You do not have to hold the Key... -
Page 17: Additional Information
Using a Handset alongside unauthorized spare or accessory parts may lead to death or serious injury through electric shocks and other hazards. • Only use accessory parts produced or approved by LOGICDATA • Only use replacement parts produced or approved by LOGICDATA •... - Page 18 HSU - MANUAL // PAGE 18 8.4 TROUBLESHOOTING Usually, malfunctions occur when Handsets are pressed while calibrating. If the Handset fails to function, you will need to restart the system. To do this: Unplug the Handset from the Control Box. Plug the Handset back into the Control Box.
- Page 19 LOGICDATA LOGICDATA North America, Inc. Electronic & Software Entwicklungs GmbH 5300 Broadmoor Ave SE, Suite D Wirtschaftspark 18 Grand Rapids, MI 49512 8530 Deutschlandsberg Austria Phone: +1 (616) 328 8841 Phone: +43 (0)3462 5198 0 Email: office.na@logicdata.net Fax: +43 (0)3462 5198 1030 Email: office.at@logicdata.net...
