4 ASSEMBLY

This chapter of the Operating Manual describes the process of connecting the table system's components
after they have been mounted to the Height-Adjustable Table System. You must read the documentation for
each part of the system (Actuator, User Interface, Power Unit, etc.) for that product's mounting instructions.
The chapter "Assembly" outlines three common configurations for Table Systems. For further information
concerning other configurations of the DM System, please contact LOGICDATA.
1

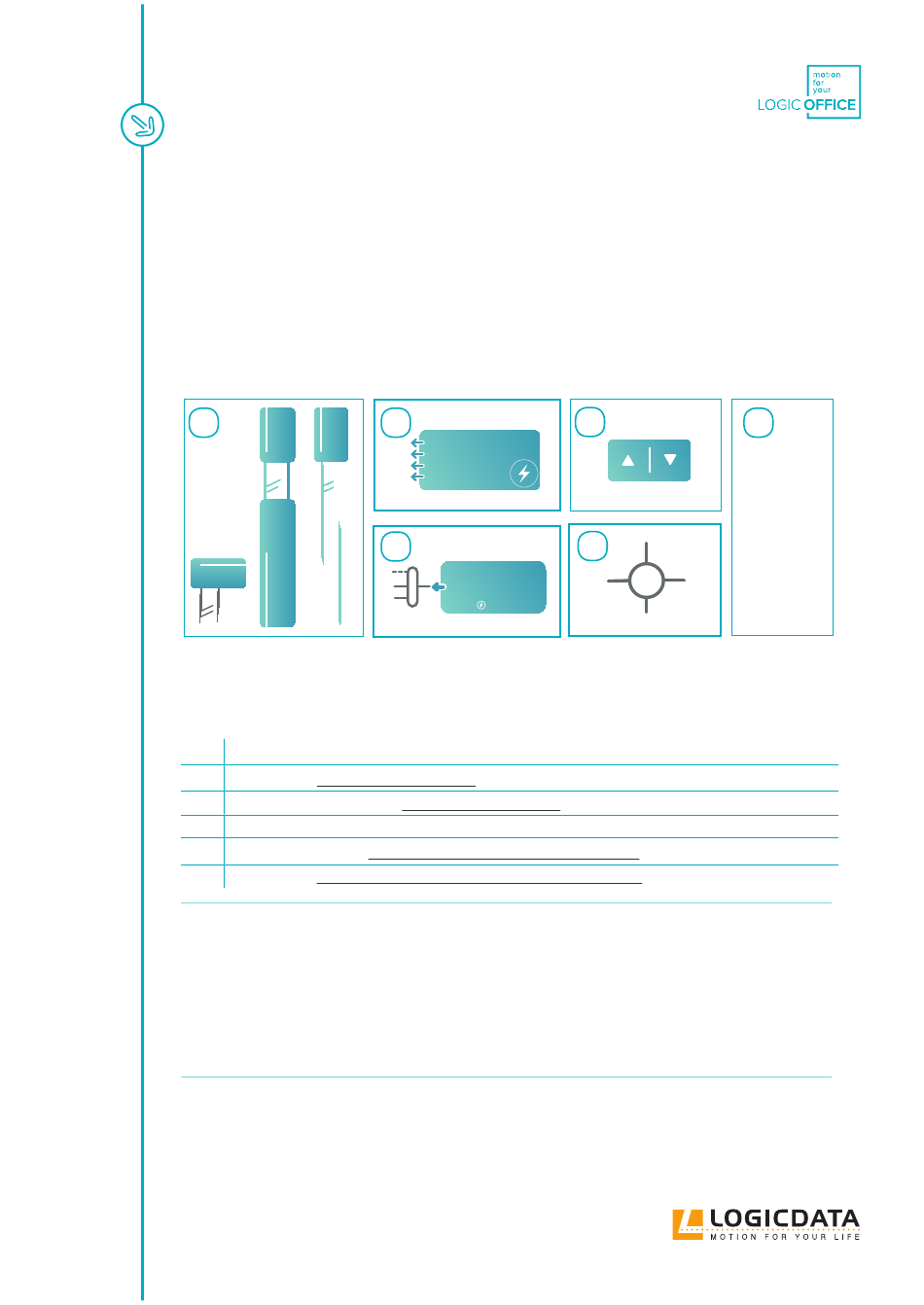

Fig. 1: Required components
NOTE: This is a summary list of the components used in the different installation variants of the DM System.
Not all components are required for all variants.
DYNAMIC MOTION Actuators (should be mounted into Height-Adjustable Columns)
1
Power Hub (Optional - See Chapter 4.7)
2a
LOGICcell Battery Pack (Optional - See Chapter 4.7)
2b
User Interface (Handset or other)
3
Benching Adapter (for Benching Table Systems - see Chapter 4.3)
4
Sync Cable (for Tables with Multiple Power Hubs - see Chapter 4.4)
5
INFO
Your Table
compatible Power Unit. A Power Unit is a general term that covers the
DM Power Hubs and all LOGICDATA Battery Packs. The assembly pro-
cess differs slightly depending on which type of Power Unit will be installed.
Unless otherwise stated, the instructions in this Operating Manual assume that the
user has installed a Table System alongside a Power Hub that adapts Mains electricity.
If you have purchased a DM System for use alongside a LOGICDATA Battery Pack, you
are obliged to read the Operating Manual of your chosen Battery Pack in full.
DYNAMIC MOTION SYSTEM - SYSTEM MANUAL // PAGE 10
2a
2b
LOGICcell
System must be
3
4
powered using a DYNAMIC
5
MOTION-
