4.3 ASSEMBLY: BENCHING TABLE SYSTEM
This chapter describes how to assemble a Benching Table System. In a Benching System, multiple tables are
connected by one Power Unit. The tables are operated separately. You will need one User Interface for each
table. The Benching Adapter works like a power distributor. A Benching Table System consists of between
two and four tables. The Actuators within a single table are operated simultaneously by one User Interface.
The Table Top and Height-Adjustable Columns are supplied by the Reseller.

4.3.1 REQUIRED COMPONENTS

Up to 8 Height-Adjustable Columns with DYNAMIC MOTION Actuators
2 to 4 User Interfaces (Handset or other)
1 Power Unit (Power Hub or Battery Pack)
1 to 3 Bench Adapters

4.3.2 CONNECTING THE COMPONENTS

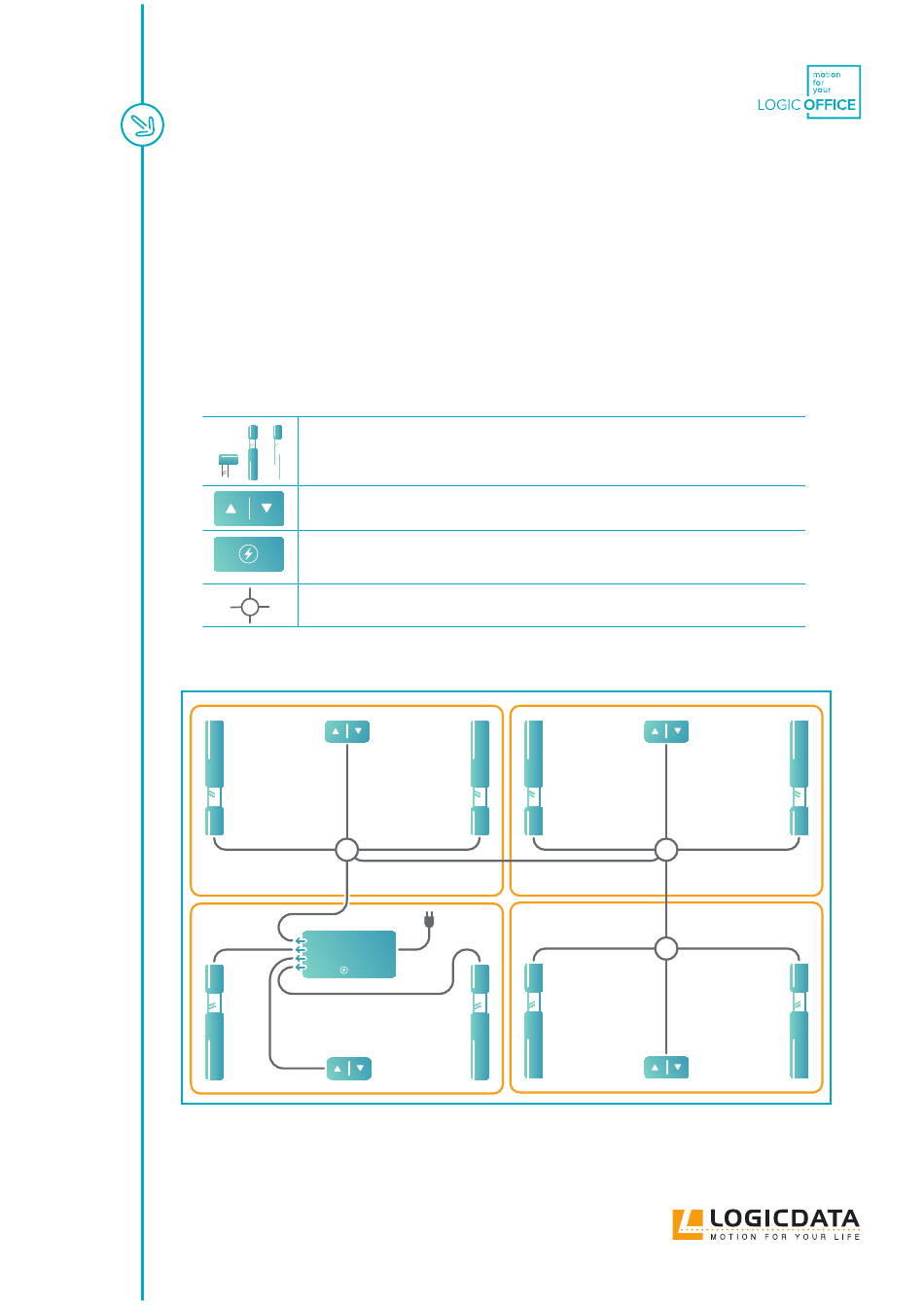

Fig. 3: Connection map (Benching Table System, 4 tables, each with 2 Height-Adjustable
Columns, powered by a Power Hub). Note: This is the largest possible configuration.
