Summary of Contents for LOGICDATA SMARTneo Series

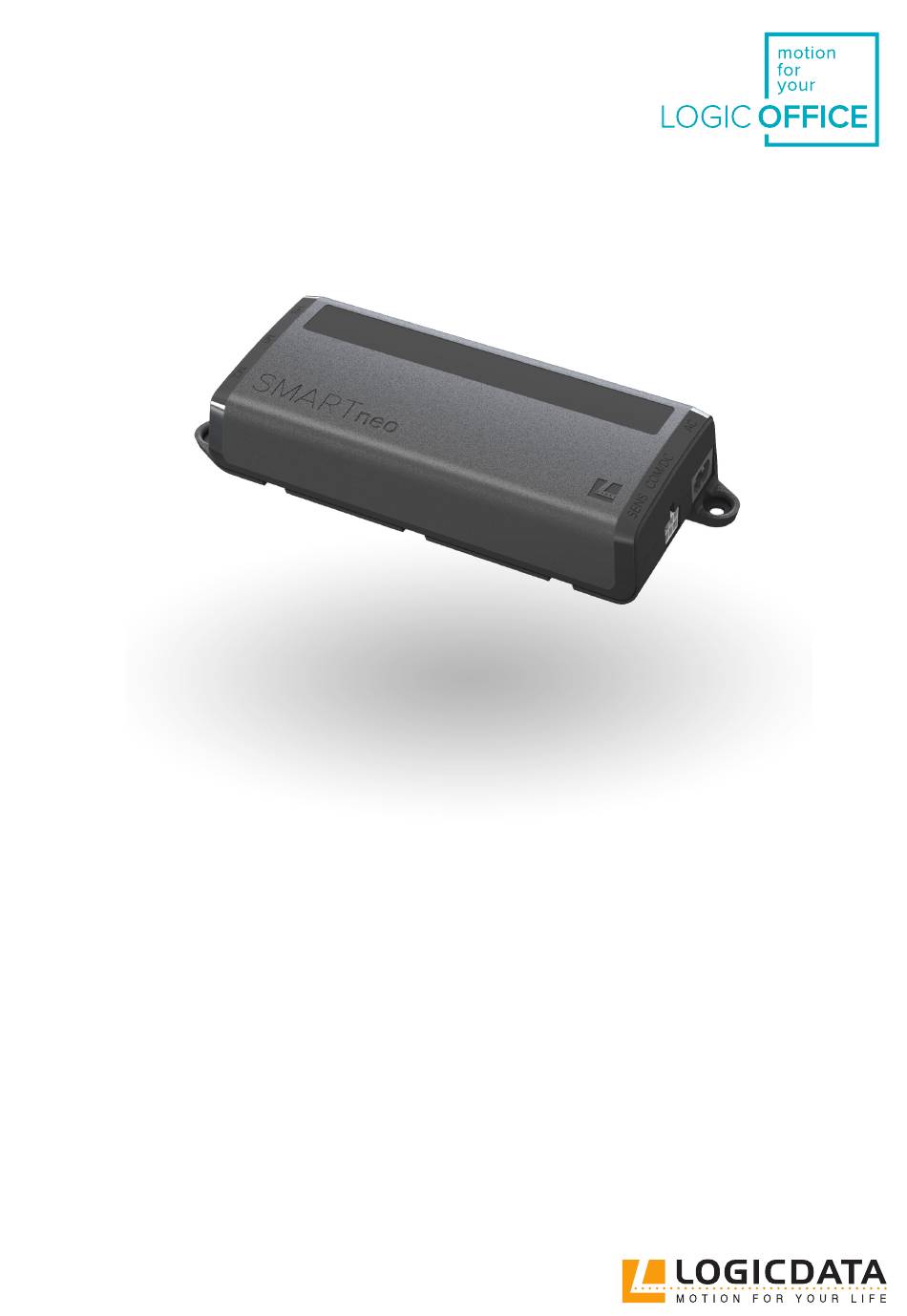

- Page 1 User Manual Document Version 2.0/October 2018 SMARTneo...
-
Page 2: Table Of Contents
USER MANUAL SMARTneo // PAGE 2 INHALT Preface Copyright Royality-free use of images and text Trademark Symbols and signal words used Safety General safety regulations and obligations Residual hazards Qualified persons Liability Product Description Intended use Delivery scope Unpacking Assembly Commissioning Connecting drives Connecting the hand control... - Page 3 USER MANUAL SMARTneo // PAGE 3 Adjusting the table height Saving the memory position Actuating the memory position Manual reset Correcting the height display 10 Software-dependent functions 10.1 Slow travel speed area 10.2 Safety area 10.3 Container stop and shelf stop positions 10.4 Plug Detection 10.5 Auto Detect Number of Drives 10.6 Detection of SLIMdrive drives...
-
Page 4: Preface
The texts and graphics must not be – changed or unchanged – sold, published digitally or sublicensed. A transfer of this licence to third parties without the permission of LOGICDATA is also preclu- ded. The complete property rights and copyright for the texts and graphics remains with LOGICDATA. Texts and graphics are offered in the current state without warranties or promises of any kind. -
Page 5: Trademark
Documentation can possibly also include representations of registered trademarks of goods or services as well as information on copyrighted or otherwise protected know-how of LOGICDATA or third parties. In all cases, all rights remain exclusively with the respective owner of the rights. -
Page 6: Safety
• It is prohibited to remove, change, bridge or circumvent any protection, safety or monitoring equipment. • It is prohibited to convert or change the product without the written release of LOGICDATA. • In case of malfunctions or damage, the product must be replaced immediately. - Page 7 USER MANUAL SMARTneo // PAGE 7 Don‘t change or convert components DANGER The components must never be changed or converted. Danger of crushing when changing the tabletop height There is a crushing hazard if the table top position is changed. DANGER Therefore always make sure that there are no items or persons in the danger zone and that no one reaches into the danger zone.
- Page 8 Danger due to self-built products Connecting self-built products on the motor control unit is DANGER prohibited. Use only components suitable for LOGICDATA motor control units as the device may otherwise be damaged or destroyed. Remove from the electricity network before plugging...
- Page 9 To use the double-click function, you have to carry out a new assessment of the higher safety requirements according to EN 60335-1 which cannot be met by this product. LOGICDATA is not liable for injuries or damage which can result from the activation of the double-click function.
-
Page 10: Qualified Persons
LOGICDATA products in the specific application and the compliance with the correspon- ding guidelines, standards and laws. LOGICDATA is not liable for damage that can be attributed directly or indirectly to the delivery, performance or use of this document. -
Page 11: Product

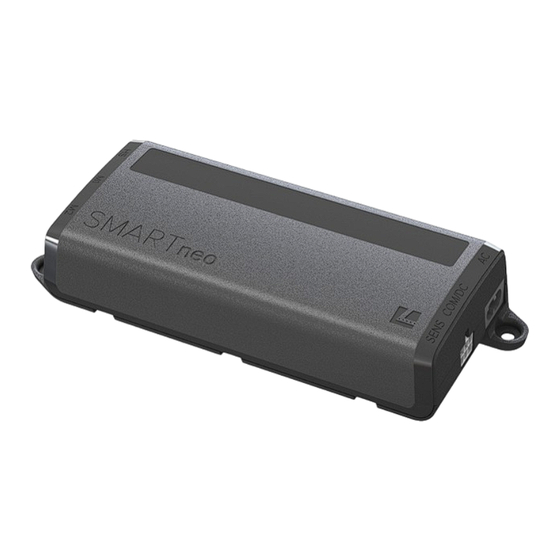

USER MANUAL SMARTneo // PAGE 11 3 PRODUCT 3.1 DESCRIPTION SMARTneo is a motor control for electrically height-adjustable desks. The following variants are available: SMARTneo-2-YYY-EU • Designed for the European power supply system. • The double-click function is not permissible in Europe. •... - Page 12 One engined table • 1 control SMARTneo • 1 actuator, e. g.: SLIMdrive-500, SLIMdrive-660s • 1 hand control e. g.: TOUCHfx, HSF or another LOGICDATA hand control, LOGIClink • 1 mains cable with two-pin connection C8 Two engined table • 1 control SMARTneo •...
-
Page 13: Intended Use
USER MANUAL SMARTneo // PAGE 13 3.2 INTENDED USE SMARTneo is an electrical device for use at home. It may be used only in dry interior spaces and according to the product description. The installation site must be level, vibration-free and free from contamination. It must be ensured that there is no extraordinary exposure through dust or toxic or caustic gases and vapours or through inadmissible heat exposure at the installation site. -
Page 14: Assembly
USER MANUAL SMARTneo // PAGE 14 6 ASSEMBLY Mount the SMARTneo motor control on the underside of the table top. For assembly you need the following tools and materials: • 1 cross screwdriver • 1 pencil • 1 drilling machine (for predrilling) •... - Page 15 USER MANUAL SMARTneo // PAGE 15 Fig. 2: drilling template...
-
Page 16: Commissioning
USER MANUAL SMARTneo // PAGE 16 7 COMMISSIONING The table system may be assembled only by qualified persons. The workplace must be clean, dry and ESD protected. NOTICE Ensure ESD-oriented handling during the unpacking. Errors that can be attributed to electrostatic discharge will void warranty claims. -
Page 17: Connecting The Hand Control
NOTICE Operating instructions are available in the download area of the homepage www.logicdata.net 7.4 CONNECTING THE POWER SUPPLY Check before you connect the power supply Before you connect the power supply cable, check again: •... -
Page 18: Overall Configuration (Example)
USER MANUAL SMARTneo // PAGE 18 7.5 OVERALL CONFIGURATION (EXAMPLE) The following figure shows a sample configuration: Motor control SMARTneo-2 2 motors (in the table legs) (M1, M2) hand control (HC) Power supply cable 2-pin(AC) Abb. 3: Connections to the control SMARTneo 7.6 RESET DURING FIRST START-UP During the first start-up, there is a compulsory reset in order to be able to commission the product. -
Page 19: Dismantling
USER MANUAL SMARTneo // PAGE 19 8 DISMANTLING Proceed as follows for dismantling: 1. Disconnect the table’s power supply. 2. Disconnect all plug connectors from the control. 3. Dispose of all parts within the scope of the valid shut-down in an environmentally responsible way and sorted according to material (see Chapter 14.2). -
Page 20: Adjusting The Table Height
USER MANUAL SMARTneo // PAGE 20 Memory position button 1 Memory position button 2 Memory position button 3 Memory position button 4 9.1 ADJUSTING THE TABLE HEIGHTS This function serves for easy adjustment of the table top position up or down. Proceed as follows to move the table top up or down: Table top up Push the button until the required table top height has been reached. -
Page 21: Actuating The Memory Position
USER MANUAL SMARTneo // PAGE 21 This function saves a defined table top height (one table top height per memory position button can be sa- ved). Proceed as follows to save the table top position: Move the table top to the desired height. o 7 3 The display shows the table top position (e.g. -
Page 22: Manual Reset
To use the double-click function, you have to carry out a new assessment of the higher safety requirements according to EN 60335-1 which cannot be met by this product. LOGICDATA is not liable for injuries or damage which can result from the activation of the double-click function. -
Page 23: Correcting The Height Display
USER MANUAL SMARTneo // PAGE 23 Press the button Table top down. Press the button Table top down until the table top has reached the lowest table top position (programmed table top position). Press the button Table top down (and continue to press it). After about 5 seconds, the table top is adjusted downward until the absolute lowest table top position is reached. -
Page 24: Software-Dependent Functions
USER MANUAL SMARTneo // PAGE 24 10 SOFTWARE-DEPENDENT FUNCTIONS The motor control unit SMARTneo is parameterised with software before delivery. The following functions can be used only when the motor control unit is parameterised appropriately. 10.1 SLOW TRAVEL SPEED AREAS This function (low speed area) causes the speed to be slowed automatically during the table top adjustment before the following positions are reached: •... -
Page 25: Container Stop And Shelf Stop Positions
USER MANUAL SMARTneo // PAGE 25 10.3 CONTAINER STOP AND SHELF STOP POSITIONS These two features can be used to limit the travel range of the table (if e.g. a container is below the table). A container stop position can be set in the lower half of the travel range, a shelf stop position in the upper half. -
Page 26: Plug Detection
USER MANUAL SMARTneo // PAGE 26 Proceed as follows to deactivate a container stop / shelf stop position: Put the table top in a random position in the lower half of the travel range in order to deactivate the container stop. Put the table top in a random position in the upper half of the travel range in order to deactivate the shelf stop. -
Page 27: Auto Detect Number Of Drives
USER MANUAL SMARTneo // PAGE 27 10.5 AUTO DETECT NUMBER OF DRIVES The SMARTneo can automatically detect the number of connected drives, it can thus be determined during commissioning whether e.g. 1 or 2 motors are to be controlled without having to change the parameteri- sation of the control. -
Page 28: Duty Cycle Monitoring
The automatic detection function of the SLIMdrive drive types NOTICE depends on the settings in the software parameters of the SMARTneo. Please contact LOGICDATA for additional informa- tion. If the number or type of connected drives changes, the control NOTICE must be reset to the factory settings. -
Page 29: Change Of The Display Unit (Cm Or Inches)
USER MANUAL SMARTneo // PAGE 29 10.8 CHANGE OF THE DISPLAY UNIT (CM OR INCHES) This function can be used to switch the unit of the display of the memory hand control from centimetres to inches and vice versa. The table height itself is not changed by this function. Simultaneously press the memory position buttons 1, 2 and the button Table top up. -
Page 30: Changing The Number Of Motors
USER MANUAL SMARTneo // PAGE 30 10.9 CHANGING THE NUMBER OF MOTORS NOTICE The factory settings are 2 motors for the SMARTneo. Only skilled technical staff DANGER This function must be carried out only by skilled technical staff. An incorrect number of motors can lead to damage to the table. A hand control with display and memory buttons is required for NOTICE this procedure. -
Page 31: Control System To Factory Settings Reset
USER MANUAL SMARTneo // PAGE 31 When 000 flashes on the display, a manual reset is necessary. This process is o oo explained in Chapter 9.4. The menu has a time-out of 5 seconds, which means that the NOTICE menu is closed automatically and without saving the settings if no entry is made within 5 seconds. - Page 32 USER MANUAL SMARTneo // PAGE 32 Reset to factory settings DANGER If the drives in a system are replaced, the control system must first be reset to the factory settings and a manual reset carried out without fail. If a hand control is used with only one up and down button each, proceed as follows: Disconnect the power supply of the SMARTneo and wait at least 5 seconds.
-
Page 33: Collision Protection
11 COLLISION PROTECTION 11.1 INTELLIGENT SYSTEM PROTECTION (ISP) ISP (Intelligent System Protection) is a collision protection system that LOGICDATA has developed accor- ding to the newest state of the technology. It reduces damage to the system in case of a collision. -
Page 34: Drive Back
Furthermore, the shutdown sensitivity is influenced by mechanical equipment, motor and environmental conditions. LOGICDATA as control manufacturer can therefore not comple- tely rule out this residual risk and does not assume and liability. 12 MAINTENANCE SMARTneo is maintenance-free for the entire service life. -
Page 35: Possible Malfunctions And Their Remedy
USER MANUAL SMARTneo // PAGE 35 13.1 POSSIBLE MALFUNCTIONS AND THEIR REMEDY Problem Possible cause Remedy Drives does not work Power supply cable not plugged Plug in the power supply cable of motor control unit Drives not connected Plug the motor cable into the motor control unit Poor plug contact Plug in motor cable, power supply... -
Page 36: Error Messages On The Display Of The Hand Control
USER MANUAL SMARTneo // PAGE 36 13.2 ERROR MESSAGES ON THE DISPLAY OF THE HAND CONTROL Problem Cause Remedy H O T The motor control unit SMART- Wait until the motor control unit neo is equipped with overheating has cooled off and the message The display shows protection. - Page 37 USER MANUAL SMARTneo // PAGE 37 Number Description Remedy Internal error channel 1 Switch off the motor control unit. Con- tact the customer service. Internal error channel 2 Defect channel 1 Disconnect the motor control unit. Remedy the external short circuit. Defect channel 2 Plug in the correct motor at the affected bushing.
- Page 38 USER MANUAL SMARTneo // PAGE 38 Change of the drive configuration Disconnect the power supply for 5 sec- onds. Connect the required motors and plug the power supply back in. Carry out a manual reset. Internal error Carry out a manual reset. Disconnect the power supply cable and plug it back in after a few seconds.
-
Page 39: Click-Codes
USER MANUAL SMARTneo // PAGE 39 13.3 CLICK-CODES As soon as the SMARTneo is supplied with current, the control uses the installed relays to inform the user acoustically about the system status as well as the reason for the last shut-off. The following table shows how the number of clicks correlates with the different information. -
Page 40: Additional Information
USER MANUAL SMARTneo // PAGE 40 14 ADDITIONAL INFORMATION 14.1 TECHNICAL SPECIFICATIONS You can find the technical data of your motor control unit in the corresponding data sheet. 14.2 DISPOSAL The SMARTneo is an electrical and electronic device which must be disposed of separately from household trash in accordance with the WEEE guideline 2012/19/EU. - Page 41 LOGICDATA LOGICDATA North America, Inc. Electronic & Software Entwicklungs GmbH 1525 Gezon Parkway SW, Suite C Wirtschaftspark 18 Grand Rapids, MI 49509 8530 Deutschlandsberg Austria Phone: +43 (0)3462 5198 0 Phone: +1 (616) 328 8841 Fax: +43 (0)3462 5198 1030 E-mail: office.na@logicdata.net...
