CONNECTING TO THE WEB GRAPHICAL USER INTERFACE (GUI)

1. On a PC web browser, enter the default IP address of the BACnet Interface Module
(192.168.1.24) to determine if the module is up and communicating.
2. The following screen should automatically appear in the web browser:
2-6

USING THE WEB GUI TO SET IP ADDRESS

1. From the GUI main home page, click on Setup and then Network Settings to enter the
Edit IP Address Settings menu. Refer to Figure 2-4.
2. Modify the IP address (N1 IP address field) of the Ethernet port. Type in a new IP address
in the format 192.168.2.X.
3. If necessary, change the Netmask (N1 Netmask field).
4. Type in a new Subnet Mask.
5. If necessary, change the IP Gateway (Default Gateway field).
6. Type in a new IP Gateway.
Note:If the BACnet Interface Module is connected to a router, the IP Gateway of the mod-
7. Select <Update IP Settings> to save your new settings.
8. Reset the BACnet Interface Module by selecting <System Restart>. Updated settings
only take effect after a system restart.
Note: If you have changed the IP address of the BACnet Interface Module, you will have
9. Unplug the Ethernet cable from the PC/laptop and connect it to the network hub or router.
P/N 06-237214-002

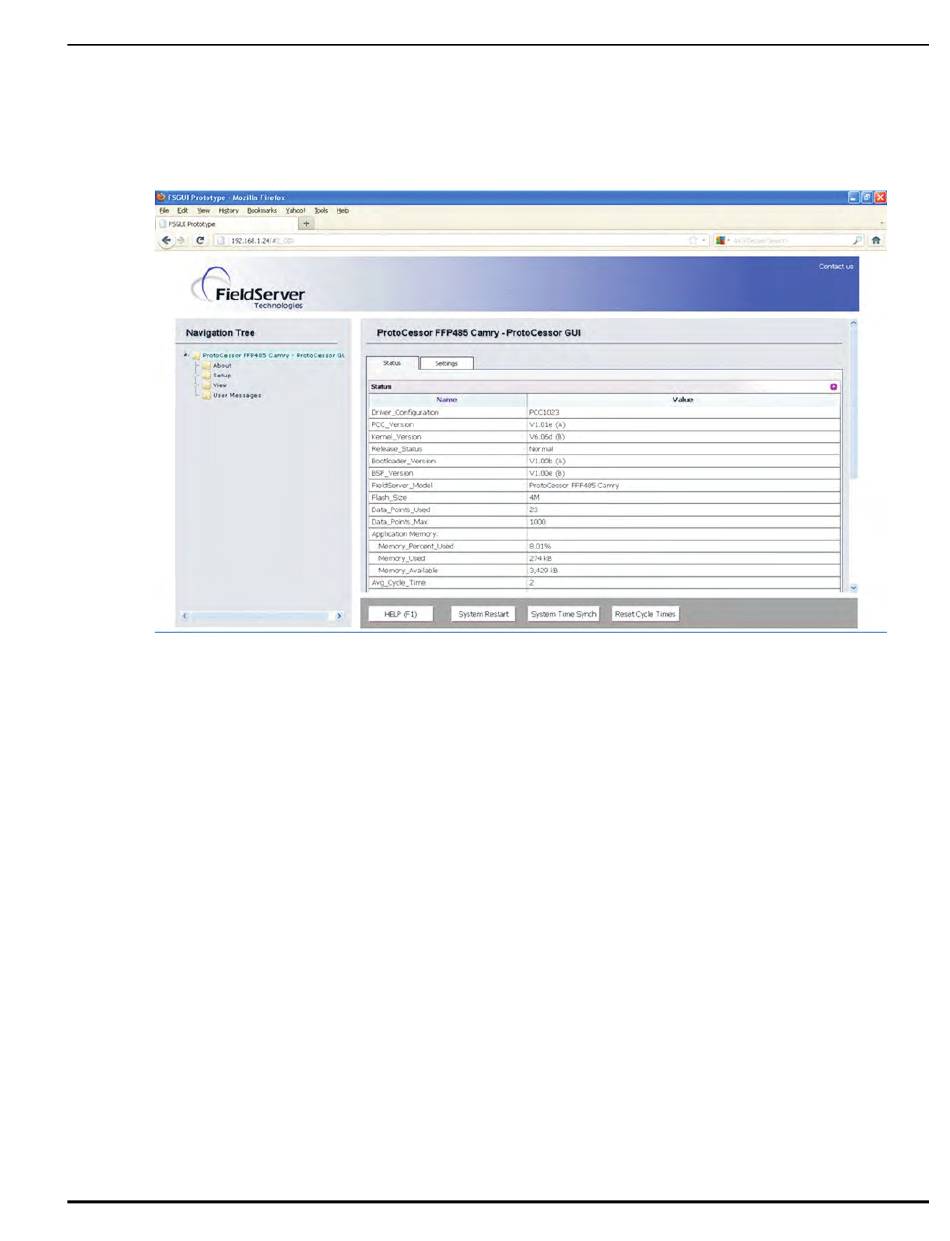

Figure 2-3. WEB GUI Home Page
