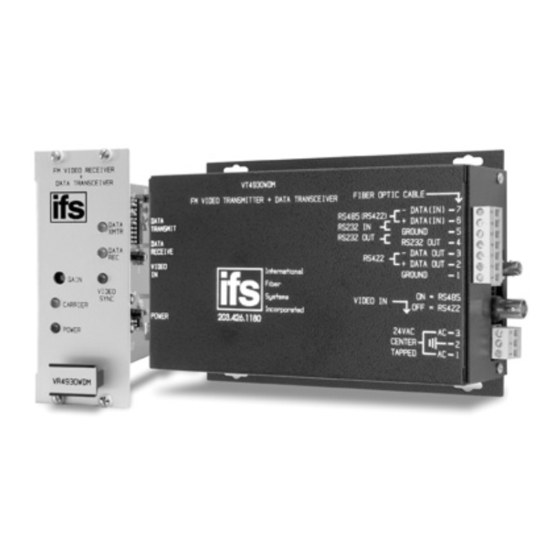

- Page 1 VR4930WDM VT4930WDM VR4930WDM-R3 VT4930WDM-R3 VR4930WDM-6065 VT4930WDM-606 VR4930WDM-6065-R3 VT4930WDM-6065-R3 IFS Fiber Module Installation & Operation Instructions P/N 1062797 • REV B • ISS 01JUL11...
- Page 2 DATA INPUT RS - 232 DATA DATA OUT GROUND - DATA INPUT + DATA INPUT RS - 422 / 4-WIRE RS-485 DATA - DATA OUTPUT + DATA OUTPUT - DATA INPUT / OUTPUT + DATA INPUT / OUTPUT 2-WIRE RS-485 DATA...
- Page 3 Coax cable Video Source VT4930WDM FM VIDEO TRANSMITTER + DATA TRANSCEIVER FIBER OPTIC CABLE DATA - DATA (IN) - 7 RS485 (RS422) TRANSMIT + DATA (IN) - 6 RS232 IN GROUND - 5 RS232 OUT DATA RS232 OUT - 4 RECEIVE International - DATA OUT - 3...
- Page 4 VT4930WDM Data Transmit Data Receive LED illuminates Video In D Power NOTE: WITHOUT PROPER FIBER CONNECTION, LED's DO NOT INDICATE CORRECT OPERATIONAL STATUS OF THE UNIT. VR4930WDM Data Transmit Data Receive LED illuminates Video Sync D Gain Adjustment Carrier LED illuminates Power...
-
Page 5: Fcc Compliance
FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesirable operation. Changes or modifications not expressly approved by International Fiber Systems, Inc. - Page 6 Contacting us For help installing, operating, maintaining, and troubleshooting this product, refer to this document and any other documentation provided. If you still have questions, contact us during business hours (Monday through Friday, excluding holidays, between 5 a.m. and 5 p.m. Pacific Time). Sales and support contact information North Toll-free: 855.286.8889 in the US, including Alaska and Hawaii;...
- Page 7 Product Disassembly Instructions for WEEE Per European Directive 2002/95/EC Waste Electrical and Electronic Equipment Required Tools: One number 2 Phillips (crosstip) screwdriver. One number 2 flat screwdriver. For the enclosed box version: 1. Locate and remove box cover securement screws. Usually, but not limited to, at least 4 screws.
- Page 8 Copyright © 2011 UTC Fire & Security. All rights reserved. Trademarks and Interlogix and IFS names and logos are trademarks of patents UTC Fire & Security. Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products.
