1-3

COMPONENTS OVERVIEW

Key components of the BACnet Interface Module are shown in the photograph below.
"A Bank" DIP Switches
"B Bank" DIP Switches
"S Bank" DIP Switches
ProtoCessor Board LEDs
Main Board LEDs
1-3.1 Grounding
Kidde Fire Systems recommends connecting the provided grounding wire(s) from one of the
BACnet Interface Module mounting screws to one of the Earth Ground studs located inside the
enclosure. Refer to the wiring diagrams provided in Figure 1-1 and Figure 1-2.
P/N 06-237214-002

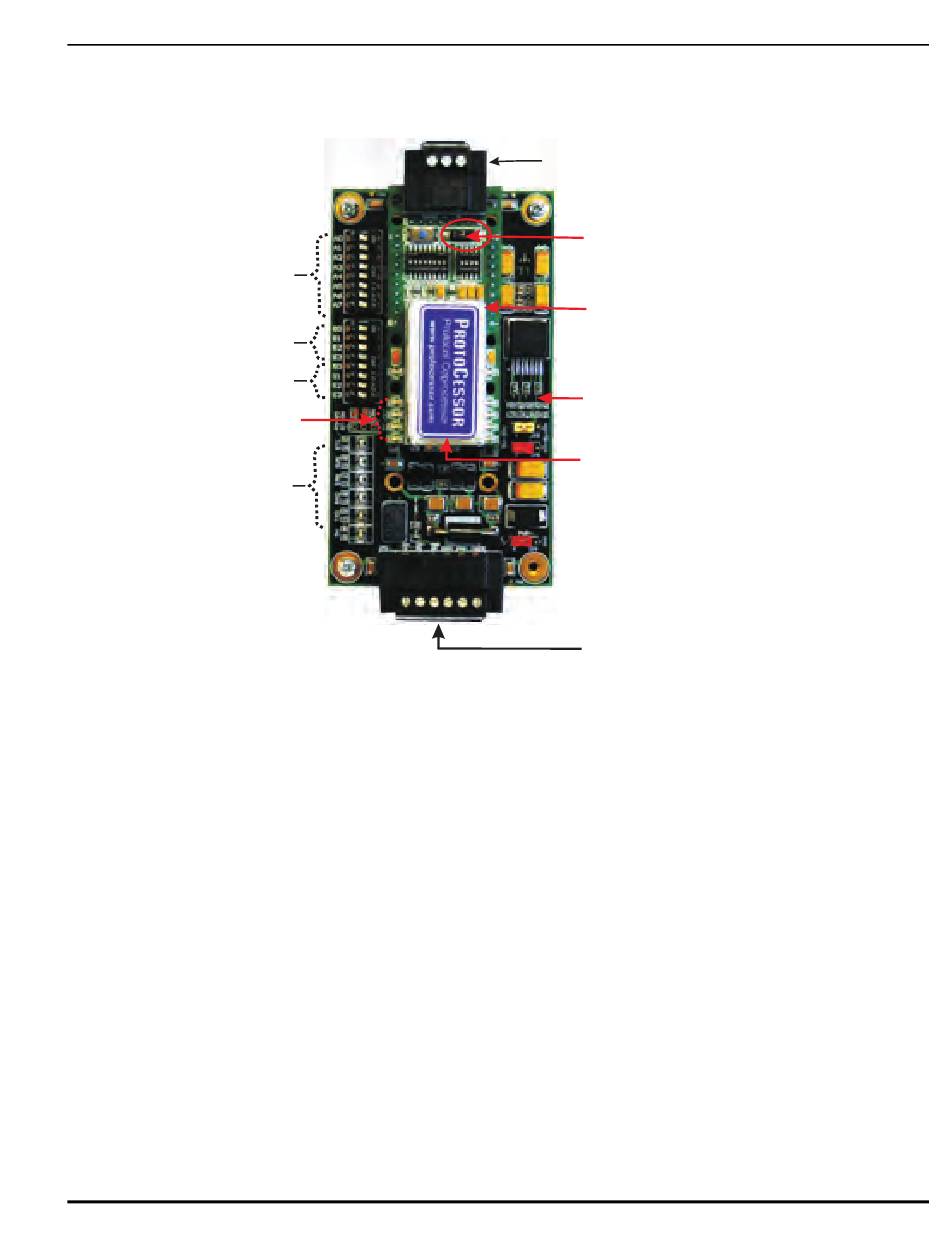

Figure 1-4. The BACnet Interface Module
1-5
3-Pin Connector for BACnet MS/TP network
End-Of-Line Switch
ProtoCessor Board
Main Board
Ethernet port for BACnet/IP network
Phoenix Connector
(RS232, Power +/- and
Frame Ground (FG) Connections)
General Information
June 2012
