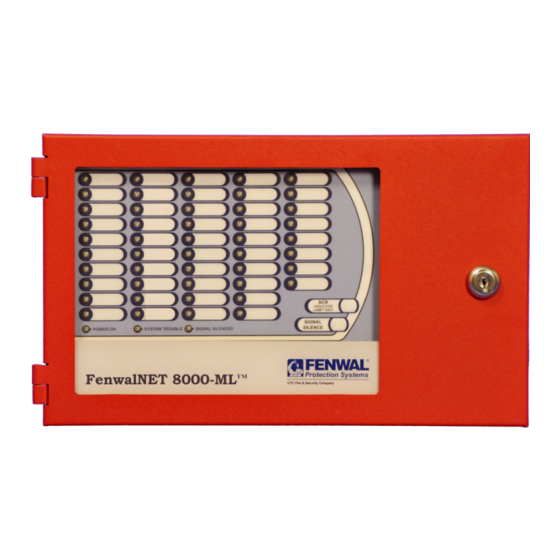

Page 1 Protection Systems FenwalNET 8000-ML Intelligent Fire Alarm-Suppression Control Unit (Installation, Operation, and Maintenance Manual) FM Approvals UL Listing File Project ID 3038124 No. S2422 P/N 06-237041-001 February 2011...
Page 3: Foreword
Kidde-Fenwal, Inc. Kidde-Fenwal, Inc. is a manufacturer of the components that make up the FenwalNET 8000-ML system, and may not have the opportunity to visit the sites where the product is installed or intended to be installed. It is the responsibility of the professional installer (described above) to properly install and configure the systems.
Page 4: Terms And Abbreviations
TERMS AND ABBREVIATIONS °C °Centigrade LCD: Liquid Crystal Display °F °Farenheit LED: Light Emitting Diode Ampere Main Controller Board Alternating Current NAC: Notification Appliance Circuit ADA: Americans with Disabilities Act N.C.: Normally Closed Ampere Hour NEC: National Electrical Code AHJ: Authority Having Jurisdiction NFPA: National Fire Protection Association...
Page 5: Safety Summary
SAFETY SUMMARY WARNING AND CAUTION DEFINITIONS This section defines the safety conventions used throughout this manual (“WARNING” and “CAUTION”). Review the definitions below to familiarize yourself with what these conventions mean and why and when they are used. Indicates an imminently hazardous situation which, if not avoided, could result in death, serious bodily injury and/or property damage.
Page 6 Any communications wiring which exits the building or facility should not be routed to or located inside the same conduit as the AC power. Follow the instructions in this manual. These instructions must be followed to avoid damage to the control unit and associated equipment.
Page 7 GENERAL PRECAUTIONS The following general safety precautions are to be observed at all times: All electrical components associated with equipment shall be installed and grounded in accordance with NEC and local regulatory requirements. Special precautionary measures are essential to prevent applying power to equipment at any time maintenance work is in progress.
Page 8 THIS PAGE INTENTIONALLY LEFT BLANK. February 2011 P/N 06-237041-001...
Page 9: Table Of Contents
Table of Contents TABLE OF CONTENTS Foreword ..........................i Terms and Abbreviations ....................ii Safety Summary ......................... iii Table of Contents........................ vii List of Figures........................xi List of Tables ........................xv CHAPTER 1 GENERAL INFORMATION Introduction......................1-1 Listings and Approvals ................... 1-1 Codes and Standards....................
Page 10: Table Of Contents
Table of Contents TABLE OF CONTENTS (CONT.) CHAPTER 2 INSTALLATION Introduction ......................2-1 Preparing for Installation..................2-1 2-2.1 Unpacking the System .....................2-1 2-2.2 Materials/Tools Required ..................2-2 2-2.3 Determining Wall Location ..................2-2 2-2.4 Removing Knockouts From Enclosure ..............2-2 2-2.5 Installing Conduit....................2-3 2-2.6 Installing Electrical Boxes ..................2-3 Overview of Installation Steps..................2-3 2-3.1 Step One: Shut Off AC Power ..................2-3...
Page 11 Entering Passwords ....................4-6 System Startup Procedure ..................4-6 4-9.1 Preliminary Procedures ..................4-6 4-9.2 Initial Power-Up ...................... 4-7 4-10 FenwalNET 8000-ML System Operation Overview ..........4-10 4-10.1 Normal Operation ....................4-10 4-10.2 Trouble State ......................4-10 4-10.3 Alarm State......................4-12 4-10.4...
Page 12 Available Parts......................7-1 APPENDIX A— Battery and Power Supply Calculations ..............A-1 APPENDIX B— Wiring Requirements for FenwalNET 8000-ML Signaling Line Circuit ..... B-1 APPENDIX C— List of Agency Listed Compatible Devices ............... C-1 APPENDIX D— FM Rules for Preaction/Deluge Systems ..............D-1 APPENDIX E—...
Page 13: List Of Figures
Figure Name Page Number Full FenwalNET 8000-ML Fire Suppression System Application..........1-3 Cutout Showing PMU Audible Trouble Sounder Mounted on Inside of Enclosure ....1-5 Illustration of Typical 3-Tiered Main Enclosure Configurations..........1-6 Illustration of Typical 2-Tiered Main Enclosure Configurations..........1-7 Large Expansion Enclosure (a) and Small Expansion Enclosure (b).........
Page 14 FenwalNET 8000-ML Isolate Menu Functions (Cont’d - Fig. 3 of 3)...........3-9 3-13 FenwalNET 8000-ML List Menu Functions (Fig. 1 of 4) ............3-10 3-14 FenwalNET 8000-ML List Menu Functions (Cont’d - Fig. 2 of 4) ..........3-12 3-15 FenwalNET 8000-ML List Menu Functions (Cont’d - Fig. 3 of 4) ..........3-13 3-16 FenwalNET 8000-ML List Menu Functions (Cont’d - Fig.
Page 15 Location of knockouts (b) ......................E-5 An Example of a Typical FenwalNET 8000-ML Wiring Scenario ..........E-6 An Example of a Typical FenwalNET 8000-ML Wiring Scenario - MCB Opened .......E-7 An Illustration of Suggested Methods to Dress Wires..............E-8 3-Tiered Canadian Application Enclosures ................F-1 2-Tiered Canadian Application Enclosures ................
Page 16 THIS PAGE INTENTIONALLY LEFT BLANK. February 2011 P/N 06-237041-001...
Page 17: List Of Tables
Operator Control Keys and Their Functions ................4-3 System Status LEDs and Functions..................4-4 LCD Panel System Status Messages..................4-5 Progressive Alarm States of a FenwalNET 8000-ML System ............. 4-21 Priority Levels for Different Types of Concurrent Events ............4-22 Available Standby Batteries ...................... 5-2 Testing Frequency ........................
Page 18 THIS PAGE INTENTIONALLY LEFT BLANK. February 2011 P/N 06-237041-001...
Page 19: General Information
Control Unit (hereinafter referred to as the “FenwalNET 8000-ML”). LISTINGS AND APPROVALS The FenwalNET 8000-ML basic control unit is designed to meet the requirements of the agencies shown in Table 1-1 for system classifications as described in NFPA 72 Standard “National Fire Alarm and Signaling Code,”...
Page 20: Suppression System Standards
General Information 1-3.1 Suppression System Standards The FenwalNET 8000-ML control unit is designed for the control and activation of suppression systems listed in Table 1-2 , which the designer/installer should be familiar with. Table 1-2. Listed/Approved Suppression Systems Application Applicable NFPA Standard...
Page 21: System Description
General Information SYSTEM DESCRIPTION The FenwalNET 8000-ML system is an intelligent control panel which coordinates and monitors the varied components of a protected-premises fire suppression system and/or fire alarm system. For each protected zone, the FenwalNET 8000-ML system can provide: •...
Page 22: System Components
Remote Configuration Software (for connectivity to user-supplied PC) SYSTEM ENCLOSURE TYPES The FenwalNET 8000-ML control unit enclosure is designed to house all of the standard features of the control unit; expanded systems may require additional enclosures. Two different sizes of the enclosure are available (specified at time of order): •...
Page 23: 1-7.1 Enclosure Features
General Information 1-7.1 Enclosure Features • Surface Mountable or Semi-Flush Mountable: The enclosure may be easily wall mounted with provided hardware. Refer to Chapter 2, Section 2-4.1 for complete instructions on wall mounting. The enclosure may optionally be semi-flush mounted between standard 16-in. spaced wall studs with provided hardware.
Page 24 General Information 1-7.1.1 3-TIERED MAIN ENCLOSURE Guidelines for internal configuration of the 3-Tiered Main Enclosure are listed below: • Top Tier: Always reserved for the Power Supply Unit/Power Management (PMU) Board and Main Controller Board (MCB) with keypad/display. The System Enclosure door is designed for the LCD Display to show through the window at this location.
Page 25 1-7.1.3 EXPANSION ENCLOSURES The FenwalNET 8000-ML system is capable of substantial expansion in its total number of add-on cards, Power Supply/PMU Assemblies and batteries. The illustrations below demonstrate available ways of expanding the system. Figure 1-5a shows the large Expansion Enclosure with a power supply/PMU Assembly and two expansion card cages.
Page 26 0.5 in. or 0.75 in. standard electrical conduit fittings. An additional conduit knockout of the same size is provided in the center of each side. The Remote Enclosure, as with all FenwalNET 8000-ML enclosures, can be surface or semi-flush mounted. A trim ring for the Remote Enclosure (P/N 74-800300-004) fits over the enclosure.
Page 27: Keypad And Display
The built-in keypad and display is the physical means by which an operator and/or installer performs system functions, enters the security password, navigates the system menus, configures and tests the entire FenwalNET 8000-ML system. Refer to Chapters 3 and 4 for complete instructions on how to operate the system using the keypad/display.
Page 28: Main Controller Board (Mcb)
FenwalNET 8000-ML system. It receives loop device data, processes the data based on pre- programmed instructions and transmits output commands to the output modules, field devices and display(s).
Page 29: Main Controller Board Features
• Ground Fault indication: A Ground Fault can be identified to a single circuit (LED indicator lights on the front display). Refer to Section 1-13 for information on expanding the functionality of the FenwalNET 8000-ML system with add-on cards. 1-10...
Page 30: 1-10.1 Power Supply Units
An AC-to-DC switching power supply unit provides a total filtered output of 5.4 A @ 27 Vdc to support the basic FenwalNET 8000-ML system and its associated devices and to charge standby batteries. The power supply unit is user-configurable for either 120 Vac or 220/ 240 Vac, 50/60 Hz line voltage (switch located on side of power supply).
Page 31: Batteries
10-minute alarm period. Refer to Appendix A, Battery and Power Supply Calculations to calculate required battery capacity and standby times. The FenwalNET 8000-ML software includes an optional Battery Monitoring Mode which can track battery lifetime from the original install date and emit an audible signal beginning one month before the replacement due date.
Page 32: Expansion Card Cage
1-12 EXPANSION CARD CAGE The expandable and flexible nature of the FenwalNET 8000-ML system is facilitated by the Expansion Card Cage, where an Expansion Card can be easily plugged into a backplane connector. The Expansion Card Cage is a metal frame which supports and secures a maximum of six Expansion Cards.
Page 33 General Information Expansion Card Backplane Connectors (6) Figure 1-12. FenwalNET 8000-ML Expansion Backplane The Expansion Backplane interfaces to the Main Controller Board and Power Supply Assembly via two dedicated connectors: System Power IN (J9) and Communications IN (J10). • The System Power IN connects +24 Vdc power to all six Expansion Card connectors on the backplane.
Page 34: Optional Expansion Cards
An Expansion Card Cage contains a total of six Expansion Card slots. A fully expanded FenwalNET 8000-ML system can include a total of four Expansion Card Cages. A fully expanded FenwalNET 8000-ML system (24 available slots) can include the total number of Expansion Cards listed below: •...
Page 35 There is no limit on the number of R-NAC Expansion “Installation” for wiring Cards which may be included in a fully expanded diagrams for NAC and FenwalNET 8000-ML system (dependent only on how releasing circuits. many slots are available). P/N 06-237041-001...
Page 36 Card Cage Assembly and plugs directly into the backplane. +24 Vdc power is supplied via the backplane connector. A FenwalNET 8000-ML system can include only one City Tie Expansion Card per node. Refer to Figure 2-35 in Chapter 2, “Installation”...
Page 37: Optional Remote Devices
Signal Silence and System Acknowledge/Self-Test commands. Note: The file LAM label template.doc is provided on the FenwalNET 8000-ML User Disk, P/N 06- 220289-001, to assist with customized labeling. Text for the labels can be entered into preset form fields (up to two lines of text per window).
Page 38: 1-14.2 Remote Devices Using Rs232 Or Usb Ports
General Information 1-14.1.2 REMOTE DISPLAY CONTROL MODULE (RDCM) The Remote Display Control Module (RDCM) is a separate unit which is housed in the Remote Enclosure. The RDCM permits system events to be displayed, and operator intervention to be accomplished, from more than one location in a facility. The RDCM is a duplicate of the FenwalNET 8000-ML’s keypad/display and allows full operator intervention and system control.
Page 39: Signaling Line Circuit (Slc) Devices And Modules
SmartOne Devices The FenwalNET 8000-ML supports the SmartOne Series of intelligent smoke and heat detectors. These detectors have their own data transceivers, micro-controllers, micro-controller memory, and algorithms that allow the detectors to determine whether a normal, pre-alarm, alarm, or trouble condition exists at their monitoring locations.
Page 40: High Sensitivity Smoke Detectors
General Information 1-16 HIGH SENSITIVITY SMOKE DETECTORS Table 1-5. Supported High Sensitivity Smoke Detectors ® AnaLASER II The AnaLASER II High Sensitivity Smoke Detector is designed for early warning smoke detection applications such as telecommunications facilities, data processing rooms, museum, warehouses and cleanrooms.
Page 41: Smartone Addressable Modules
Relay Module: This module supplies an unpowered, Form-C contact at a point-specific address. • Control Modules: These modules provide a uniquely-identifiable interface between the FenwalNET 8000-ML and conventional notification appliances such as horns and strobes. • Remote Releasing Modules: These modules provide the ability to remotely activate extinguishing- system control devices (i.e., electro-explosive initiators and solenoid valves).
Page 42 INSTRUCTIONS P/N 06-235717-001 INSTRUCTIONS P/N 06-235717-001 INSTRUCTIONS P/N 06-235717-001 Model ASM the FenwalNET 8000-ML’s SLC. The ASM is PC LINE TERMINALS - POWER LIMITED PC LINE TERMINALS - POWER LIMITED ALL OTHERS - POWER LIMITED ALL OTHERS - POWER LIMITED...
Page 43 Manufacturer Part Number Multi-Zone Power Supply Assembly Fenwal 89-300020-001 24 VDC, 2A Auxiliary Power Outputs located Fenwal on FenwalNET 8000-ML PMU Board 24Vdc, 3A Power Supply, red enclosure Altronix AL400ULXR 24Vdc, 3A Power Supply, grey enclosure Altronix AL400ULX 24Vdc, 6A Power Supply, red enclosure...
Page 44: Optional Software
General Information 1-18 OPTIONAL SOFTWARE Two optional means of accessing the FenwalNET 8000-ML system are available. Both methods require the use of a personal computer with specific software installed previously. 1-18.1 Remote Configuration Software Complete programming and configuration of the FenwalNET 8000-ML system can be accomplished with a user-provided personal computer running the FenwalNET 8000-ML Configuration Software.
Page 45: System Specifications
General Information 1-19 SYSTEM SPECIFICATIONS Item Description OPERATING ENVIRONMENT Temperature: 32°F to 120°F (0°C to 49°C) Relative Humidity: 93% RH @ 90 ° MAIN & EXPANSION ENCLOSURES Material of Construction: 16 Gauge (0.059 inches or 1.49 mm) rolled steel Color: Red (C21136 of Federal Standard 595) 3-Tiered Main and 31-1/2 in.
Page 46 General Information Item Description RELAY CARD Includes four (4) Form C Programmable Relays; no limit on number of Relay cards in fully expanded system (if slots available) Contact Rating: 3.0 A @ 24 Vdc (resistive) 3.0 A @ 120 Vac (resistive) CITY TIE CARD Includes three (3) output circuits to connect to Municipal Tie inputs;...
Page 47 General Information Item Description POWER MANAGEMENT Each Power Management Unit can interface with two AC-to-DC switching power UNIT (PMU) BOARD supplies for a total of 10.8 A @ 27.6 Vdc. Maximum of 4 PMU’s in fully expanded system. AC-to-DC Power 1 or 2 switching power supplies per PMU Conversion: Primary AC Power Input:...
Page 48 General Information Item Description ON-BOARD NOTIFICATION MCB includes two (2) NAC Circuits. APPLIANCE CIRCUITS (NACs) Wiring Types/Electrical – 24 Vdc regulated Supervision: – CLASS-A or CLASS-B, supervised and power-limited – Either synchronized or non-synchronized strobes are supported. End-of-Line Resistor: 10 K, 5%, 1/2 W Total Voltage Drop at End-of-Line: Max.
Page 49: Chapter 2 Installation
2-2.1 Unpacking the System Check the contents of the FenwalNET 8000-ML shipping carton(s) to ensure that you have received the components listed below. (Refer to the Parts List in Chapter 7 for part numbers of some items.) Remove the keys from the envelope taped to the top of the enclosure.
Page 50: 2-2.2 Materials/Tools Required
Materials/Tools Required The materials listed below are NOT supplied with the system, but may be needed for installation. • The FenwalNET 8000-ML Configuration Software (may be downloaded at no cost from the secure “Distributor Extranet” link on www.fenwalfire.com) • 1/4” mounting bolts to mount the control unit cabinet (recommended) •...
Page 51: Installing Conduit
Installation 2-2.5 Installing Conduit Route properly-sized conduit from the control unit to locations designated on the approved layout drawings for peripheral devices. Refer to the locations of the automatic and manual initiating devices, notification appliances, Remote Display Control Modules, LED Annunciator Modules, control heads for the extinguishing system, and addressable relay modules on the system drawings.
Page 52: 2-3.6 Step Six: Install Batteries
Installation 2-3.6 Step Six: Install Batteries • Install standby batteries into bottom tier or Large Capacity Battery Cabinet. 2-3.7 Step Seven: Install Expansion Enclosures and/or Remote Modules (if applicable) • Install add-on cabinets and equipment: Expansion Enclosure(s), Remote Display Control Modules, LED Annunciator Modules, additional Power Supply/PMU Assembl(ies), additional Card Cages.
Page 53: Standard System Installation Procedure
Installation STANDARD SYSTEM INSTALLATION PROCEDURE The instructions which follow pertain to installation of a standard FenwalNET 8000-ML control unit, which includes one Power Supply Unit, one Power Management Unit (PMU) Board and Main Controller Board (MCB) with Keypad/Display. Installation for additional equipment follows this section.
Page 54: 2-4.2 Semi-Flush Mounting Of Main Or Expansion Enclosures
Installation 2-4.2 Semi-Flush Mounting of Main or Expansion Enclosures To semi-flush mount the control unit: Cut and plumb an opening in the wall on which the control unit will be mounted: • approximately 15 in. wide by 32 in. high (see Figure 2-2 (a) for 3-Tiered Enclosure) •...
Page 55 Installation Figure 2-3. Semi-Flush Mounting of 3-Tiered and 2-Tiered Main & Expansion Enclosures P/N 06-237041-001 February 2011...
Page 56: Installing A Power Supply Unit Into The Enclosure Top Tier
Installation 2-4.3 Installing A Power Supply Unit into The Enclosure Top Tier Use a ground strap to prevent static discharge that could damage the power supply. CAUTION Note: The top tier of the enclosure has been designed to accommodate two power supply units and a Power Management Unit (PMU) Board.
Page 57: 2-4.4 Installing The Power Management Unit (Pmu) Board Into Enclosure Top Tier
Main Controller Board and Keypad/Display which fits over these components. Note: If AC power is lost on any PMU Board of a FenwalNET 8000-ML system containing multiple PSU/PMU Board assemblies, the system will immediately stop charging standby batteries and the batteries will supply the load of all PMU Boards that are in the Trouble state.
Page 58 Installation Use a ground strap to prevent static discharge that could damage the PCB. CAUTION Ensure that the dedicated AC circuit is shut off at its source before beginning this procedure. WARNING To install the PMU Board into the top tier of an enclosure: Make sure the control unit location is dry and that the enclosure is free of construction dust and metal shavings prior to installing the PMU Board.
Page 59 Installation Figure 2-7. Connecting Power Supply Wiring Harness to PMU Board Terminal on Power Supply Colored Harness Wire to Attach (from Left to Right) 1. White and Black wire 1 (Line) 2. All-White wire 2 (Neutral) 3. Green wire 3 (Ground) No connection 4.
Page 60 Installation Green Black Black White 120 VAC, 50/60 Hz, 3.2 A (single PSU) / 6.4 A (two PSUs) 240 VAC, 50/60 Hz, 1.6 A (single PSU) / 3.2 A (two PSUs) To EarthGround stud on inside of enclosure To PSU1 To PSU 2 To EarthGround stud on inside of enclosure To MCB J2 PMU COMMS...
Page 61: 2-4.5 Installing The Audible Pmu Trouble Sounder
Installation 2-4.5 Installing the Audible PMU Trouble Sounder A stand-alone buzzer, connected to the standby batteries, is located on the inside of the enclosure. The buzzer is activated by the Trouble relay on the PMU board and sounds upon PMU microprocessor failure and loss of AC power.
Page 62 Installation 24 VDC Power Management Unit (PMU) AUX-1 AUX-2 TBL RELAY BATTERY Positive (Red) Wire Negative (Black) Wire Power Jumper (Red) Wire NOTES: 1. Route wires over small bracket on enclosure. 2. Lay wires flat against the back of enclosure. 3.
Page 63: 2-4.6 Making Ac Power Source And Earth Ground Connections
The branch-circuit wire must run continuously, without any disconnection devices from the source of AC power to the FenwalNET 8000-ML control unit. Over-current protection for this branch circuit must be limited to 15 Amp maximum and comply with Article 760 of the National Electric Code, in addition to any other local electrical codes.
Page 64 Installation Ground (Green) Wire Connection Neutral (White) Wire connection Line (Black) Wire connection Earth Ground stud Figure 2-12. AC Connections to PMU Board (shown without AC Voltage Protection Cover, Standoff and PMU Ground Wire Assembly) Figure 2-13. AC Voltage Protection Cover (prohibits access to AC Power input terminals) February 2011 2-16 P/N 06-237041-001...
Page 65: 2-4.7 Installing The Main Controller Board Into Enclosure Top Tier
Installation 2-4.7 Installing the Main Controller Board into Enclosure Top Tier Use a ground strap to prevent static discharge that could damage sensitive components on the main PCB. CAUTION Note: The top tier of the enclosure has been designed to accommodate two power supply units and a Power Management Unit (PMU) Board.
Page 66 Installation Hinges Figure 2-14. Installing A Main Controller Board with Keypad/Display into the Enclosure Top Tier February 2011 2-18 P/N 06-237041-001...
Page 67: Replacing Enclosure Door
Figure 2-15. Wiring Diagram for Main Controller Board 2-4.8 Replacing Enclosure Door When access to the internal components of the FenwalNET 8000-ML control unit is no longer required: Re-attach the enclosure door by lifting it onto its built-in hinges. Attach the ground wire assembly from the Earth Ground stud located on the door to the Earth Ground stud located on the left inside of the enclosure.
Page 68: Making Internal 24Vdc Power Connections
Installation MAKING INTERNAL 24VDC POWER CONNECTIONS Figure 2-16 provides an overview of internal 24Vdc power supply connections for the FenwalNET 8000-ML system. Note: Output connectors are white; input connectors are black. All connectors are keyed for correct orientation when inserted. February 2011 2-20 P/N 06-237041-001...
Page 69: Making Internal Communication Connections
Installation MAKING INTERNAL COMMUNICATION CONNECTIONS Figure 2-17 provides an overview of internal communication connections for the FenwalNET 8000- ML system. P/N 06-237041-001 2-21 February 2011...
Page 70: Optional Equipment Installation Procedure
12. Connect the COM harness from connector J10 on the backplane to connector J9 on the MCB. Note: If this is the only Card Cage in the entire FenwalNET 8000-ML system, insert an End-of-Line Terminator into connector J11 on the backplane.
Page 71 Installation Figure 2-18. Installing the Expansion Card Cage P/N 06-237041-001 2-23 February 2011...
Page 72: 2-7.2 Inserting And Securing An Expansion Card
Installation 2-7.2 Inserting and Securing an Expansion Card Use a ground strap to prevent static discharge that could damage sensitive components on the PCBs. CAUTION To install a card into a Card Cage slot: Make sure the enclosure location is dry and that the enclosure is free of construction dust and metal shavings prior to installing the card.
Page 73: 2-7.3 Installing Add-On Power Supply/Pmu Assembly With Bracket
Installation 2-7.3 Installing Add-On Power Supply/PMU Assembly With Bracket Use a ground strap to prevent static discharge that could damage sensitive components on the PCB. CAUTION To install an Add-On Power Supply/PMU Assembly into any tier of an enclosure: Make sure the control unit location is dry and that the enclosure is free of construction dust and metal shavings prior to installing the power supply.
Page 74: 2-7.4 Installing The Battery Tray
Installation 2-7.4 Installing the Battery Tray The battery tray (P/N 74-800030-006) fits securely into the bottom tier of a Main or Expansion Enclosure and serves to support the batteries while providing easy access to wiring at the bottom of the enclosure. Note: Insertion of the battery tray is not necessary if knockouts at bottom of enclosure will not be used.
Page 75: 2-7.5 Connecting Standby Batteries To Pmu Board
Installation 2-7.5 Connecting Standby Batteries To PMU Board Batteries contain sulfuric acid that can cause severe burns to the skin and eyes and can damage clothing. Immediately flush areas of the skin or eyes that have been contacted WARNING with sulfuric acid for 15 minutes with water and seek medical attention promptly. Note: Observe polarity when connecting batteries to the control unit.
Page 76: Setting Up Wiring To Field Devices
Installation SETTING UP WIRING TO FIELD DEVICES Requirements for field wiring connections to the control unit are determined by national and local codes. Refer to NFPA 72, “National Fire Alarm and Signaling Code” for more detailed information. 2-8.1 Installing Electrical Wiring and Making Connections Route the properly-sized and required wiring through conduit from the control unit to the field devices.
Page 77: 2-8.4 Wiring Auxiliary Power Outputs
2-8.5 Wiring Signaling Line Circuits The Signaling Line Circuit (SLC) is the communications path between the FenwalNET 8000-ML control unit and the SmartOne and associated field devices. The SLC can accommodate any combination of up to 255 addressable devices, which include SmartOne automatic initiating devices, monitor modules, relay modules, and control modules.
Page 78 2-8.5.2 USE OF ADDRESSABLE OUTPUT MODULES In order to meet the requirements of UL864 33.1.2.a, the FenwalNET 8000-ML system is limited to a maximum of 14 addressable output modules that are programmed to activate in response to an Alarm or Supervisory condition from an SLC-based initiating device. These modules include SmartOne Model AO Addressable Relay Modules, SmartOne Model ASM Addressable Signal Modules and SmartOne Remote Releasing Modules.
Page 79 Installation on-board SLC Connectors (2) Expansion Card SLC Connector (1) Signaling Line Circuit Connectors (located on MCB and SLC Expansion Card) CLASS A SIGNALING LINE CIRCUIT W/LOOP ISOLATORS CLASS B SIGNALING LINE CIRCUIT IN - OUT - To Next Device IN + ZONE 1 RET 24V RET 24V...
Page 80 Installation CLASS A, STYLE 7 SIGNALING LINE CIRCUIT W/LOOP ISOLATORS Refer to Note 10 ZONE 1 RET 24V RET 24V RET 24V RET 24V RET 24V RET 24V LOOP Refer to Note 10 LOOP LOOP ISOLATOR ISOLATOR ISOLATOR IN - ZONE 2 OUT - IN +...
Page 81 Installation 2-8.5.3 MEASURING CLASS-B SLC WIRING RESISTANCE Note: The following methods for measuring SLC wiring resistance and capacitance apply to SLC circuits located on the Main Controller Board and/or the SLC Expansion Card. The total wiring resistance from the control unit to the end of each individual branch line cannot exceed 40 ohms.
Page 82 Installation 2-8.5.5 MEASURING CLASS-A SLC WIRING RESISTANCE Note: The following resistance reading MUST be taken PRIOR to the installation of any loop device. The total wiring resistance from the start of the “Out” leg to the end of the “Return” leg cannot exceed 40 ohms.
Page 83: 2-8.6 Wiring Notification Appliance Circuits
Note: For enclosures which include one or two power supply units, total current output of the FenwalNET 8000-ML must not exceed 5.4 A per power supply unit. For enclosures which include three or more power supply units, total current output must not exceed the parameters listed in Appendix A, Section A-5, Calculating Maximum Load For Multiple Power Supply Units In One Enclosure.
Page 84 Installation Both NAC circuits are supervised, power limited, and are compatible with conventional, UL-Listed, 24-Vdc notification appliances such as: • MT Series Multi-Tone Horns and Horn/Strobes (See Note 1) • NS Series Horn/Strobes • NH Series Horns (See Note 1) •...
Page 85: Wiring R-Nac (Combination) Circuits
2-8.7 Wiring R-NAC (Combination) Circuits The FenwalNET 8000-ML control unit has two on-board R-NAC circuits that can be used either as notification-appliance circuits (NACs) or as releasing circuits. The R-NAC circuits are labeled RNAC1 and RNAC2. These circuits have field-wiring connections that terminate at J17 and J18, respectively.
Page 86 Note: For enclosures which include one or two power supply units, total current output of the FenwalNET 8000-ML must not exceed 5.4 A per power supply unit. For enclosures which include three or more power supply units, total current output must not exceed the parameters listed in Appendix A, Section A-5, Calculating Maximum Load For Multiple Power Supply Units In One Enclosure.
Page 87 Installation Release Notification-Appliance Connectors (located on MCB and R-NAC Expansion Card) R-NAC 1 R-NAC 2 Expansion Card R-NAC Connectors (3) R-NAC 3 Release Circuits - Solenoid Release Circuits - Solenoid CLASS A, Power-Limited Wiring CLASS B, Power-Limited Wiring n-Line Releasing Device, P/N 74-800000-004 In-Line Releasing Device, P/N 06-220023-001 R-NAC 1 or 2 R-NAC 1 or 2...
Page 88 Installation 2-8.7.2.2 R-NAC Circuits for Series-Wired Initiator Assemblies Initiator assemblies are Class-C explosives. Always use safety glasses or a face shield when handling them. Do not remove the shorting cap from the initiator assembly until the assembly is installed in the agent-storage container. Physical abuse or static-electricity discharge could cause inadvertent initiator actuation and personnel injury.
Page 89 Installation Release Notification-Appliance Connectors (located on MCB and R-NAC Expansion Card) R-NAC 1 R-NAC 2 Expansion Card R-NAC Connectors (3) R-NAC 3 Release Circuits - Initiators Release Circuits - Initiators CLASS B, Power-Limited Wiring CLASS B, Non-Power-Limited Wiring R-NAC 1 or 2 Current Limiting Resistor Current Limiting Resistor IN+ IN-...
Page 90: 2-8.8 Relay Outputs
Installation 2-8.8 Relay Outputs The Main Controller Board includes three Form-C, programmable relays and one Form-C, dedicated Trouble relay. All of these relays have the following contact ratings: • 3.0 A @ 24 Vdc (resistive) • 3.0 A @ 120 Vac (resistive) The Relay Expansion Card includes four Form-C, programmable relays as shown in Figure 2-34.
Page 91: 2-8.9 City Tie Wiring
Installation 2-8.9 City Tie Wiring Refer to the wiring diagram shown below (Figure 2-35) for City Tie Card connections. OUTPUTS: City Tie Expansion Card Local Energy End-of-Line Position of Manual Resistor Disconnect Switch: TOP = Normal Reverse Polarity J7 End-of-Line Resisitor 5.1K, 0.5W Manual Disconnect Switch SW2 BOTTOM = Disconnected (supplied with City Tie Card)
Page 92: Setting Up Communications
Installation SETTING UP COMMUNICATIONS 2-9.1 Setting up RS232 Communications Port The Main Controller Board has two RS232 communications ports (RS232A and RS232B) to connect to various third-party supplementary devices such as serial printers and graphical monitoring systems. The default parameters for these communications ports are: •...
Page 93: 2-9.2 Setting Up Usb Communications Ports
• Connect a serial printer to either RS232A or RS232B ports on the MCB Ports can be configured using either the FenwalNET 8000-ML Configuration Software or the Port Control command from the FenwalNET 8000-ML SET Menu (accessed from the Keypad/Display).
Page 94: Setting Up Peripheral Devices And Enclosures
RS485 communications circuit. The peripheral devices are listed below, along with the maximum numbers for each particular type of device. Note: If an integrated LED Annunciator is included in the FenwalNET 8000-ML, the total number of remote devices cannot exceed more than 30 addresses.
Page 95: Installing The Remote Enclosure
Installation 2-10.1 Installing the Remote Enclosure The Remote Enclosure houses either the Remote Display Control Module or the Remote LED Annunciator Module and mounts to the wall (surface or semi-flush mounting). 2-10.1.1 PREPARATION Before you begin installation of the Remote Enclosure, prepare the enclosure by doing the following: Remove knockouts from the enclosure to enable the connection between the conduit and the enclosure.
Page 96 Installation ½ (215.90 mm) ⅜ (161.93 mm) Figure 2-39. Surface Mounting of the Remote Enclosure (shown without RDCM or R-LAM modules) 2-10.1.3 SEMI-FLUSH MOUNTING ON WALL To semi-flush mount the Remote Enclosure: Remove the keys from the envelope taped to the top of the enclosure. Remove the Remote Enclosure door first by unlocking it and then lifting the door up to allow the door’s hinges to clear the mating-hinge pins on the enclosure.
Page 97 Installation 13 in. 8 in. (Rough Opening) 9.8 in. (250 mm) 66 in. 8.5 in. (216 mm) 15.0 in. (381 mm) (FLOOR) Figure 2-40. Semi-Flush Mounting of Remote Enclosure (shown without RDCM or R-LAM modules) P/N 06-237041-001 2-49 February 2011...
Page 98 Installation The RS-485 communications circuit is power-limited. Figure 2-41 shows typical interconnections among the FenwalNET 8000-ML control unit and the peripheral devices using both a single and dual communications channel. Installation Notes: (J8) Communications Circuit Voltage: 24 VDC RS485 circuits must be terminated at the...
Page 99 Installation Use Figure 2-42 to estimate the maximum length of wire that can be connected to RS-485 peripheral devices. 4000 3500 3000 2500 2000 1500 1000 Total Current (A) for RS-485 Peripheral Devices Figure 2-42. 24 Vdc-Power Wiring Length vs. Peripheral-Devices Current P/N 06-237041-001 2-51 February 2011...
Page 100: Installing The Large Capacity Battery Cabinet
Installation 2-11 INSTALLING THE LARGE CAPACITY BATTERY CABINET A separate Large Capacity Battery Cabinet, P/N 74-6000000-514, may be used to house up to two 12V, 40-AH sealed lead-acid batteries. The enclosure is designed to be surface-mounted using hardware similar to that used to mount the Main and Expansion Enclosures. Note: Wiring for the batteries to the PMU Board must be sized accordingly to prevent unacceptable voltage drops.
Page 101: Configuration And Programming
Refer to the FenwalNET 8000-ML Configuration Software User’s Guide, P/N 06-237042-001, for instructions on how to program the FenwalNET 8000-ML System from a PC or laptop. Refer also to the Operating Instructions, P/N 06-237048-001, that are packaged with the FenwalNET 8000-ML system.
Page 102 The control unit will restart in order to begin to use the new settings. Confirm that no new trouble messages have appeared on the display. The FenwalNET 8000-ML control unit is now ready for site-specific programming. February 2011 P/N 06-237041-001...
Page 103: 3-1.2 Site-Specific Programming
A PC (or laptop) must be connected to the RS232 or USB port of the Main Controller Board to be able to configure the FenwalNET 8000-ML system using the configuration software. Refer to Section 2-9.3, Connecting A Laptop, Remote Computer or Printer, for instructions on how to connect a remote PC to the RS232 or USB port.
Page 104: Menu Operation
Configuration and Programming MENU OPERATION The FenwalNET 8000-ML has a built-in menu structure. This menu structure has been implemented to aid users with system operating functions. An operator can use menu operation to: • Isolate initiating devices and/or outputs •...
Page 105 Note: It is easier and faster to use the configuration software to configure the modules, than to use the Keypad/Display on the Control Unit. Refer to the FenwalNET 8000-ML Configuration Software (FCS8000) User’s Guide, (Chapters 2 and 3) P/N 06-237042-001, to configure the modules.
Page 106: 3-3.1 Isolate Menu Functions
3-3.1 ISOLATE MENU FUNCTIONS The Isolate functions prevent the FenwalNET 8000-ML control unit from acting upon signals from initiating devices or from issuing activation commands to control unit-based and SLC-based outputs. The initiating devices and outputs remain operational, but are disconnected from the control unit in the sense that events reported by isolated initiating devices are ignored by the control unit and commands to activate are ignored by isolated outputs and control modules.
Page 107 Isolation CITY TIE  1: Isolate 2. De-Isolate *  Enter Logical Address Range __ to __ * Isolation PMU  1: Isolate 2. De-Isolate * Figure 3-10. FenwalNET 8000-ML Isolate Menu Functions (Fig. 1 of 3) P/N 06-237041-001 February 2011...
Page 108 SLC Devices. Purpose: To prevent initiating and trouble signals from selected SmartOne automatic detectors and monitor modules from being processed and acted upon by the FenwalNET 8000-ML control unit. Also to prevent selected SmartOne control and relay modules from carrying out activation instructions issued by the FenwalNET 8000-ML control unit. Note: An SLC device can only be isolated if it is not in either a trouble or alarm condition.
Page 109 Execute a User-Defined Inputs/Outputs Isolation Routine. Purpose: To perform multiple input and/or output isolations via a single menu selection. The inputs and/or outputs to be isolated are assigned to an "isolation macro" that is defined via the FenwalNET 8000-ML Configuration Software. The FenwalNET 8000-ML Configuration Software permits two "isolation macros"...
Page 110: 3-3.2 List Menu Functions
SLC Devices*__ to ___ (1-255)  4. Walk Test Results SLC Module Selection Enter SLC Module Number (1-8):_* Walk Test Results Listing SLC Devices*__ to ___ (1-255) Figure 3-13. FenwalNET 8000-ML List Menu Functions (Fig. 1 of 4) February 2011 3-10 P/N 06-237041-001...
Page 111 FenwalNET 8000-ML control unit. Walk Test Results. List Most Recent WalkTest Results for the Initiating Devices on the SLC.
Page 112 3. Call for Service  6. General Alarm Figure 3-14. FenwalNET 8000-ML List Menu Functions (Cont’d - Fig. 2 of 4) FOOTNOTES (Figure 3-14): Active Events. Purpose: To view the list of active events by event type. Use this option to view lower-level events such as trouble events whose display is suppressed by the concurrent occurrence of higher-level events.
Page 113 Enter Logical Address Range: *__to__ 5. SLC Figure 3-15. FenwalNET 8000-ML List Menu Functions (Cont’d - Fig. 3 of 4) FOOTNOTES (Figure 3-15): 10 Line Voltage. List a Range of SLC Device Voltages. Purpose: To view the SLC line voltages for a range of initiating and/or control devices.
Page 114 Enter Logical Address Range:*__to__ 5. SLC Enter Logical Address Range:*__to__ Figure 3-16. FenwalNET 8000-ML List Menu Functions (Cont’d - Fig. 4 of 4) FOOTNOTES (Figure 3-16): 15 RRM Memory Status. View the Memory Status of Remote Release Modules. Purpose: To get diagnostic information concerning the memory status of RRM modules.
Page 115: 3-3.3 Set Menu Functions
(Use either Steps 6a or 6b in table, depending on desired format). Set Date. Set the Date. Purpose: To set the correct date for a FenwalNET 8000-ML control unit. Port Control. Configure the Communications Ports. Purpose: To change the RS-232 communications ports for use with a serial printer, laptop or desktop computer (PC), and/or terminal emulator.
Page 116  Day Alarm Level *._ (0.5-1.5 %/ft. Set Detector Sensitivity  Night Alarm Level *._ (0.5-1.4) %/ft. Level-2 (Installer) Password required . Figure 3-18. FenwalNET 8000-ML Set Menu Functions (Cont’d - Fig. 2 of 14) February 2011 3-16 P/N 06-237041-001...
Page 117 Configuration and Programming FOOTNOTES (Figure 3-18: Fixed Settings. Change an Ionization Detector’s Pre-Alarm and Alarm Thresholds. Purpose: To change the pre-alarm and alarm thresholds of one or more ionization detectors. The ionization detector is UL Listed and FM Approved for alarm reporting anywhere within the obscuration range of 0.5 to 1.5 percent per foot when used for an open-area application.
Page 118 2. Day/Night Settings Set Detector Sensitivity  Day Alarm Level *._ (0.5-3.5 %/ft. Set Detector Sensitivity  Night Alarm Level *._ (0.5-3.4) %/ft. Figure 3-19. FenwalNET 8000-ML Set Menu Functions (Cont’d - Fig. 3 of 14) February 2011 3-18 P/N 06-237041-001...
Page 119 Configuration and Programming FOOTNOTES (Figure 3-19): Set Detector Sensitivity. Change a Photoelectric Detector’s Pre-Alarm and Alarm Thresholds. Purpose: To change the pre-alarm and alarm thresholds of one or more photoelectric detectors. The photoelectric detector is UL Listed and FM Approved for alarm reporting anywhere within the obscuration range of 0.5 to 3.5 percent per foot when used for an open-area application.
Page 120  Alarm 1: Normal 2: Overheat Figure 3-20. FenwalNET 8000-ML Set Menu Functions (Cont’d - Fig. 4 of 14) FOOTNOTES (Figure 3-20): 12 Alarmline. Change the Configuration of an Addressable AlarmLine Module. Purpose: To change one or more of the following Addressable AlarmLine Module (AAM) operating characteristics for a single module or range of modules: pre-alarm and alarm thresholds as defined by the module’s variable-threshold-setting switch;...
Page 121 FOOTNOTES (Figure 3-21): 14 Registration. Manually Register SLC Devices. Purpose: The FenwalNET 8000-ML control unit needs to know which SLC addresses (of the 255 possible addresses) will be occupied by a SmartOne detector, monitor module, relay module or control module. The Registration Procedure enters an occupied address into the control-unit's configuration memory for each SLC device that it encounters during execution.
Page 122 Execute the De-Registration prior to re-registering any previously-registered addresses. 15 De-Registration. Manually De-Register SLC Devices. Purpose: To remove one or more SLC devices from the FenwalNET 8000-ML control unit’s configuration memory. The de-registered device(s) must be physically removed from the SLC prior to or following the execution of the De-Registration Procedure.
Page 123 SLC Devices. Change an SLC Device Address. Purpose: To create or change an SLC device address using the FenwalNET 8000-ML keypad. All SLC devices are shipped with the default address of 000. This address must be changed to a valid address in the range 1 to 255 before the device can be used on the SLC.
Page 124  1. Activate 2. De-Activate * Figure 3-23. FenwalNET 8000-ML Set Menu Functions (Cont’d - Fig. 7 of 14) FOOTNOTES (Figure 3-23): 19 Set Day/Night/Weekend Mode. Activate Day/Night Operation for SmartOne Smoke Detectors. Purpose: To enable one or more SmartOne smoke detectors to automatically adjust alarm thresholds by time of day.
Page 125 Configuration and Programming 21 Set Periods. Change the Day/Night Periods for Smoke Detectors. Purpose: To change daytime and nighttime periods for smoke detectors. 22 Activate. Activate Day/Night Alarm Thresholds for Smoke Detectors. Purpose: To activate daytime and nighttime alarm thresholds for smoke detectors. 23 Nighttime Settings at Night.
Page 126 Enter SLC Module Number (1-8):_* Level-2 (Installer) Password required . Clearing Walk Test Results  SLC Devices From*__ to __ (1-255) 9. Resynch Network Figure 3-24. FenwalNET 8000-ML Set Menu Functions (Cont’d - Fig. 8 of 14) February 2011 3-26 P/N 06-237041-001...
Page 127 Purpose: The AutoSetup Procedure executes a Registration Procedure for all unregistered SLC devices and, in addition, configures the system for operation as a waterless fire-suppression system. The following operating characteristics are assigned to the FenwalNET 8000-ML control unit and its associated SLC devices.
Page 128 Each AO output module with address within the range of 121 to 125 will be assigned as a release output point. Sequence of Operation The FenwalNET 8000-ML will progress through the pre-alarm, pre-release, and release states as defined in Table 4-5. The time delay between the pre-release and the release states will be 30 seconds. Control-Unit-Based Outputs Assignments...
Page 129 Section 4-10.3.5.1 for the description of positive-alarm sequence. 30 Clear Events. Clear the System Event Log. Purpose: To remove all previously recorded system events from the FenwalNET 8000-ML event log. 31 Clear SLC Tests. Clear the Contents of the SLC-Initiating Devices Test Log.
Page 130 Nightly Test Time *__:__ (24 Hour Clock) Level-2 (Installer) Password required . Figure 3-25. FenwalNET 8000-ML Set Menu Functions (Cont’d - Fig. 9 of 14) FOOTNOTES (Figure 3-25): 34 Global Acknowledge. Activate Global Acknowledge. Purpose: To enable the "Acknowledge" Switch to process any combination of up to 30 unacknowledged supervisory or trouble events.
Page 131 180 seconds in one-second increments, or 0 (zero). 37 PAS. Change the Smoke-Detectors’ Positive-Alarm Sequence Investigation Period. Purpose: To change the period of time that the FenwalNET 8000-ML control unit will wait for the occupants to investigate a smoke-detector’s positive-alarm-sequence report before it executes the smoke- detector's programmed alarm actions.
Page 132 PRESS ENTER TO VIEW NEXT SETTING After final parameter, the following appears: ONBOARD RNAC# (X) USE SCROLL FOR OPTIONS, ENTER TO SELECT END OF CONFIGURATION, SAVE? Figure 3-26. FenwalNET 8000-ML Set Menu Functions (Cont’d - Fig. 10 of 14) February 2011 3-32 P/N 06-237041-001...
Page 133 USE SCROLL FOR OPTIONS, ENTER TO SELECT USE SCROLL FOR OPTIONS, ENTER TO SELECT END OF CONFIGURATION, SAVE?: END OF CONFIGURATION , SAVE?: Level-2 (Installer) Password required . Figure 3-27. FenwalNET 8000-ML Set Menu Functions (Cont’d - Fig. 11 of 14) P/N 06-237041-001 3-33 February 2011...
Page 134 USE SCROLL FOR OPTIONS, ENTER TO SELECT CIRCUIT: Level-2 (Installer) Password required . DISABLE BATTERY CONFIGURATION USE SCROLL FOR OPTIONS, ENTER TO SELECT END OF CONFIGURATION, SAVE?: Figure 3-28. FenwalNET 8000-ML Set Menu Functions (Cont’d - Fig. 12 of 14) February 2011 3-34 P/N 06-237041-001...
Page 135 Configuration and Programming FOOTNOTES (Figure 3-28): Battery Disp Enable. Set the Display to Show the Standby-Battery Condition. Purpose: To replace the "Normal" message on the display with the standby-battery charging voltage and current. Battery Voltage 25.5V. Battery Current 0.50 A. If the control unit is restarted due to a configuration change or power cycle, this option must be re-enabled.
Page 136 ENTER THE LAM NUMBER (01-16):__ CONFIRM CHANGE ADDRESS ?  4. RDCM (1=Y, 2=N)__ RESET MODE ENTER THE RDCM NUMBER (01-15):__ Level-2 (Installer) Password required . Figure 3-29. FenwalNET 8000-ML Set Menu Functions (Cont’d - Fig. 13 of 14) February 2011 3-36 P/N 06-237041-001...
Page 137 USE SCROLL FOR OPTIONS, ENTER TO SELECT END OF CONFIGURATION , SAVE?: Level-2 (Installer) Password required . Figure 3-30. FenwalNET 8000-ML Set Menu Functions (Cont’d - Fig. 14 of 14) FOOTNOTES (Figure 3-30): 39 LAM #01. Register Remote-Annunciator Modules. Purpose: To add/remove one or more Remote LED Annunciator Modules.
Page 138: Test Menu Functions
FenwalNET 8000-ML control unit. Note: The FenwalNET 8000-ML control unit automatically runs this test once a day for all the configured initiating devices on the SLC. The most current test results for all initiating devices are stored in the SLC Test Results log.
Page 139 SmartOne initiating devices. The FenwalNET 8000-ML control unit will not display and act upon alarm reports from initiating devices selected for walk testing. There is no need for the operator to acknowledge, silence, or reset an event initiated during a walk test.
Page 140 Alarm Sim Test. Run an Alarm-Simulation Test. Purpose: Purpose: To activate system outputs by simulating an initiating-device event during system testing. The initiating device is not activated. The FenwalNET 8000-ML system outputs are activated as if the simulated initiating device had actually reported an alarm condition.
Page 141  1. Activate 2. De-activate  Level-2 (Installer) Password required . 8: Trouble Relay* RLY4 Trouble Relay  1. Activate 2. De-activate Figure 3-33. FenwalNET 8000-ML Test Menu Functions (Cont’d - Fig. 3 of 5) P/N 06-237041-001 3-41 February 2011...
Page 142 Configuration and Programming FOOTNOTES (Figure 3-33): On Board Circuit. Activate Control-Unit-Based Outputs. Purpose: To manually activate control-unit outputs during system testing to confirm proper operation. There is no indication at the control unit that an output is activated. Be sure to de-activate the output after proper operation has been confirmed.
Page 143 1: Activate 2: De-activate 6. Output Group Figure 3-34. FenwalNET 8000-ML Test Menu Functions (Cont’d - Fig. 4 of 5) FOOTNOTES (Figure 3-34): On Board Circuit. Activate or De-Activate Control Modules (i.e., as AO, ASM or RRM). Purpose: To manually activate or de-activate one or more control modules during system testing to confirm the proper operation of control functions via AOs, NAC operation via ASMs or RRMs.
Page 144 Configuration and Programming Note: All control modules must be manually de-activated via a menu operation or a system reset before the system can be returned to normal operating condition. There is no indication at the control unit that an output is activated. Be sure to de-activate the output after proper operation has been confirmed.
Page 145 6. SLC Debug Off SLC Debug Off Enter SLC Module Number (0-8):__ Figure 3-35. FenwalNET 8000-ML Test Menu Functions (Cont’d - Fig. 5 of 5) FOOTNOTES (Figure 3-35): 10 SLC Resistance. Measure SLC Resistance. Purpose: To measure the SLC line resistance.
Page 146 Configuration and Programming THIS PAGE INTENTIONALLY LEFT BLANK. February 2011 3-46 P/N 06-237041-001...
Page 147: Chapter 4 Operation
This chapter addresses operation of individual FenwalNET 8000-ML systems. Instructions on how to start up and operate a configured FenwalNET 8000-ML System, including how to distinguish the different operating states, how to use the operator keys, entering passwords to access the system menus, and what the Status Indicating LEDs mean are presented in this chapter.
Page 148: 4-2.1 The Event Output Control (Eoc) Program
Note: All alarm events must be annunciated by public-mode notification. USER INTERFACE KEYS AND FUNCTIONS Operator keys for the FenwalNET 8000-ML System are located on the Keypad/Display. Figure 4-1 shows the location of the operator keys and System Status LEDs on the display. Table 4-2 lists the names and functions of the operator keys.
Page 149: Operator Control Keys
<SYSTEM ACKNOWLEDGE> The <SYSTEM ACKNOWLEDGE> Key allows the operator to signal the FenwalNET 8000-ML System that a new event currently being displayed is understood. The control unit's audible notification appliance will silence and all flashing Pre-Alarm, Alarm, Supervisory, or Trouble LEDs will light steadily when all active events have been acknowledged.
Page 150: Status-Indicating Leds
Yellow A steady LED indicates a Ground Fault has occurred in some circuit on the FenwalNET 8000-ML system. A Ground Fault condition will automatically cause the System Trouble LED to light and flash. The circuit with the wiring problem can be identified through the system menus.
Page 151: Lcd Panel System Status Messages
Before beginning the system startup procedure, the user should become familiar with the use of password protection. The FenwalNET 8000-ML provides three distinct levels of program protection, as required by UL Standard 864. The user can only access the system by entering a valid password.
Page 152: 4-8.2 Default Passwords
Preliminary Procedures Ensure that the following tasks were successfully completed: • The FenwalNET 8000-ML control unit is securely mounted in a clean and dry area that has a normal range of environmental temperatures. • The power supply unit has been configured correctly for the AC supply voltage.
Page 153: Initial Power-Up
4-9.2 Initial Power-Up The FenwalNET 8000-ML power-up procedure is as follows: Close the circuit breaker to apply AC power to the control unit. Verify that the green "Power On" LED illuminates. Immediately, the buzzer will sound and the yellow Trouble LED will light.
Page 154 Operation The following message appears for 10 to 20 seconds and the Trouble LED extinguishes. SYSTEM INITIALIZING FENWALNET 8000-ML X.X.X/UI VX.X.X SLC1Vx.x.x/SLC2vx.x.x/CPCvx.x.x Figure 4-6. Initialization Message Connect the standby batteries as shown in Figure 2-20. The Trouble LED will again light and the buzzer will sound.
Page 155 Operation e. Press the 3 Key to select “SET TIME FORMAT” 1: AM/PM 2: MILITARY Figure 4-12. Sub-Menu for Time-Display Format Press the <BACKSPACE> key. g. Press the 1 Key again to select "AM/PM" format SET TIME (AM/PM 1-12 HOURS) ENTER THE TIME *_:_ _ (HH:MM) Figure 4-13.
Page 156: Fenwalnet 8000-Ml System Operation Overview
4-10.2 Trouble State The FenwalNET 8000-ML enters the Trouble State when an event occurs such as an open in a supervised installation conductor. The upper line of the LCD display shows the trouble event by the device or circuit address, the type of trouble event and its state change, and the device or circuit type.
Page 157 Operation Device SLC Loop Device Type with Fault Address 002 Number 2 L2:002 TROUBLE OPEN ON ALARM FIRST FLOOR POWER ROOM Device-Specific Custom Message Figure 4-20. Typical Trouble Message Display The following actions also occur when any trouble condition is reported: •...
Page 158: 4-10.3 Alarm State
4-10.3 Alarm State The Alarm State occurs when the FenwalNET 8000-ML receives an emergency signal from an alarm- initiating device such as a smoke detector, a manual release station, or a waterflow switch. The upper line of the LCD display shows the event by the device address, the change of state, and the device type.
Page 159 Press the <SIGNAL SILENCE> Key to de-activate any silenceable outputs such as NACs and SLC- based signal or relay modules after all alarms have been acknowledged. Outputs are configured as silenceable through the FenwalNET 8000-ML Configuration Software. The control unit will display the following message for 5 to 10 seconds.
Page 160 4-10.3.3 ALARM DISPLAY LIMITATION The FenwalNET 8000-ML control unit can display a maximum of 64 active alarm messages by manually scrolling through them. All alarms in excess of 64 will be processed by the control unit even though they are not displayed, and all outputs will be activated as programmed in the control unit’s application program.
Page 161 Refer to NFPA 72, National Fire Alarm Code (latest edition) for further details. Refer to the FenwalNET 8000-ML Configuration Software User’s Guide, P/N 06-237042-001, to configure a smoke detector for PAS operation.
Page 162 Refer to NFPA 72, National Fire Alarm Code (latest edition) for details. The Alarm Verification State occurs when the FenwalNET 8000-ML control unit receives an emergency signal from a smoke detector configured for alarm verification.
Page 163: Supervisory State
4-10.4 Supervisory State The FenwalNET 8000-ML control unit enters the Supervisory State when an initiating event occurs such as a monitor module report of a low-air-pressure condition in a pre-action-sprinkler system. It also occurs when any SLC-based initiating or control device, or any control unit based output circuit, is isolated.
Page 164: 4-10.5 Pre-Alarm State
The upper line of the LCD display shows the pre-alarm event by the device address, the change of state, and the device type. The lower line indicates the up-to-40-character message assigned to the alarm device using the FenwalNET 8000-ML Configuration Software. February 2011...
Page 165 Press the <SIGNAL SILENCE> Key to de-activate any silenceable outputs such as control unit-based notification-appliance circuits and SLC-based signal or relay modules after all pre-alarms have been acknowledged. Outputs are configured as silenceable through the FenwalNET 8000-ML Configuration Software. The control unit will display the following message for 5 to 10 seconds: OUTPUTS SILENCED Figure 4-32.
Page 166: 4-10.6 Concurrent States
4-10.6 Concurrent States It is possible for the FenwalNET 8000-ML system to be in more than one of the event-driven, Off- Normal Mode states concurrently. In general, any new event, regardless of its type, is prioritized for immediate display, and the control unit's application program runs to activate the outputs, if any, associated with the new event.
Page 167 The FenwalNET 8000-ML system uses temporal-coded horns and strobes (or other method of non-voice-messaging, public notification acceptable to the authority having jurisdiction) to notify the occupants to evacuate the building.
Page 168 Lower-level events will not be automatically displayed if higher-level events are active. 4-10.6.3 HOW CONCURRENT EVENTS ARE DISPLAYED The information shown on the FenwalNET 8000-ML display will change if the system is in more than one state concurrently. 4-10.6.4 LEVEL-1 EVENT DISPLAY...
Page 169 Operation The display will show the following message when an extinguishing system has been released: Release Release Circuit Message SYSTEM RELEASE ON Zone-Specific ELECTRONIC SPACE #1 Custom Message DISCHARGE-01 CNTDN-00 ABT-00 ALM-01 PREALM-00 AVCNTDN-00 SPV-000 TBL-000 Number of Number of Alarms Extinguishing- System Releases...
Page 170 Operation Press the <SYSTEM ACKNOWLEDGE> key when the message in Figure 4-37 appears to silence the buzzer. Press the <SCROLL> Keys to display the information for the next highest-priority and subsequent events. The display will show the 1st event, then each subsequent event as the <SCROLL> key is pressed.
Page 171 4-10.6.10 LEVEL-3 DISPLAY LIMITATIONS The FenwalNET 8000-ML can display a maximum of 300 active trouble, supervisory, pre-alarm, and alarm-verification messages. However, new events in excess of the 300 active reports will be processed by the control unit, and all outputs associated with the 300th (or higher) event will be activated as programmed in the control unit's application program.
Page 172 Operation THIS PAGE INTENTIONALLY LEFT BLANK. February 2011 4-26 P/N 06-237041-001...
Page 173: Testing And Maintenance
Follow the required inspection, testing, and maintenance procedures for the associated extinguishing system(s) as directed by the manufacturer and by the standards and codes that apply to those systems. Do not attempt any testing or maintenance of the FenwalNET 8000-ML System until you have: WARNING •...
Page 174: 5-2.3 Initiating-Devices Test
Note: Other capacity (AH) batteries can be used (obtained from third party suppliers). 5-2.3 Initiating-Devices Test The FenwalNET 8000-ML control unit automatically tests all of the initiating devices connected to the signaling line circuit on a daily basis. You should re-test the initiating devices by selecting on-board circuits: “RNAC1” and/or “RNAC2”...
Page 175: Testing Frequency
The PMU Board includes a 15A fuse (F1) which may need to be replaced periodically. A replacement fuse kit, P/N 74-800030-007, is available. Note: If the FenwalNET 8000-ML displays a “Battery Disconnected Fault” when batteries are physically connected, the fuse on the PMU Board may need to be replaced. A bad fuse will report this trouble.
Page 176 Testing and Maintenance THIS PAGE INTENTIONALLY LEFT BLANK. February 2011 P/N 06-237041-001...
Page 177: Chapter 6 Troubleshooting
TROUBLESHOOTING INTRODUCTION This chapter lists all the error messages, their probable causes, and suggested procedures to return the FenwalNET 8000-ML System to proper operating condition. Do not attempt any of the corrective actions listed in this chapter until you have: •...
Page 178 If AC power is lost on any PMU Board of company. Message will appear if AC a FenwalNET 8000-ML system containing multiple PSU/PMU Board supply voltage drops to 85% or less of the normal operating voltage.
Page 179 Troubleshooting Table 6-1. General System Events (Continued) General System Events Error Message Probable Cause Corrective Action Faulty battery connection, no batteries • Check battery connections to Power BATTERY DISCONNECTED connected or battery connection is Management Unit (PMU) Board J10. Refer FAULT On reversed.
Page 180 Troubleshooting Table 6-1. General System Events (Continued) General System Events Error Message Probable Cause Corrective Action Low impedance path between positive • Use the control unit menu to view the PMU GROUND FAULT +VDC On field conductor and earth ground. ground fault offset voltage.
Page 181 Troubleshooting Table 6-1. General System Events (Continued) General System Events Error Message Probable Cause Corrective Action The PMU has detected a second power • Change and upload the configuration using PMU# PSU2 NOT CONFIGURED supply unit, but the configuration the PC configuration software or the settings do not include a second PSU.
Page 182 Troubleshooting Table 6-1. General System Events (Continued) General System Events Error Message Probable Cause Corrective Action A signal indicating faulty expansion • Use the PC configuration software to BACKPLANE ADDRESS FAULT backplane addressing detected. download the event log and forward an electronic copy to Fenwal Technical Services.
Page 183 Troubleshooting Table 6-1. General System Events (Continued) General System Events Error Message Probable Cause Corrective Action Faulty storage • Use the PC configuration software to EVENT MEMORY WRITE download the event log and forward an FAILURE On electronic copy to Fenwal Technical Services.
Page 184 Troubleshooting Table 6-2. SLC Events (Continued) For the following SLC-related events, L# is the SLC loop number and Addr is the SLC Events device address. Error Message Probable Cause Corrective Action A failure of the internally generated • Check SLC wiring. Refer to L#: Addr Device 9V DC FAULT On...
Page 185 Troubleshooting Table 6-2. SLC Events (Continued) For the following SLC-related events, L# is the SLC loop number and Addr is the SLC Events device address. Error Message Probable Cause Corrective Action A loss of communications between the • Check device connections to SLC L#: Addr DEVICE COMMUNICATION SLC's driver circuit and the device at...
Page 186 Troubleshooting Table 6-2. SLC Events (Continued) For the following SLC-related events, L# is the SLC loop number and Addr is the SLC Events device address. Error Message Probable Cause Corrective Action There is more than one SLC device with • Find all SLC devices with rapidly- L#: Addr DUPLICATE ADDRESS address L#: Addr.
Page 187 Troubleshooting Table 6-2. SLC Events (Continued) For the following SLC-related events, L# is the SLC loop number and Addr is the SLC Events device address. Error Message Probable Cause Corrective Action A failure of the DC-to-DC converter in • Check SLC wiring. Refer to L#: Addr LINE VOLT FAULT On the device type at address L#: Addr.
Page 188 Troubleshooting Table 6-2. SLC Events (Continued) For the following SLC-related events, L# is the SLC loop number and Addr is the SLC Events device address. Error Message Probable Cause Corrective Action The AO at address L#: Addr failed to CAUTION: Be sure to bypass the L#: Addr OUTPUT RELAY FAULT activate upon receipt of an activation...
Page 189 Troubleshooting Table 6-2. SLC Events (Continued) For the following SLC-related events, L# is the SLC loop number and Addr is the SLC Events device address. Error Message Probable Cause Corrective Action Loss of 24 Vdc signal to power-input • Refer to ASM Installation L#: Addr PSU OPEN CIRCUIT On circuit of ASM at address L#: Addr.
Page 190 Troubleshooting Table 6-2. SLC Events (Continued) For the following SLC-related events, L# is the SLC loop number and Addr is the SLC Events device address. Error Message Probable Cause Corrective Action The device at address L#: Addr is • Ensure that the device installed at L#: Addr Device TYPE ERROR On...
Page 191 Troubleshooting Table 6-2. SLC Events (Continued) For the following SLC-related events, L# is the SLC loop number and Addr is the SLC Events device address. Error Message Probable Cause Corrective Action A problem in a high-sensitivity smoke • Look for leaks in the HSSD's piping L#: Addr HIGH AIRFLOW On detector (HSSD) being monitored by an...
Page 192 Troubleshooting Table 6-3. R-NAC Card-Related Events For the following R-NAC-related events, # is the logical address of the R-NAC R-NAC Card-Related Output Events Expansion Card as defined in the configuration. The numbers “1”, “2” and “3” refer to the three (3) circuits available on each R-NAC Expansion Card. Error Message Probable Cause Corrective Action...
Page 193 Troubleshooting Table 6-4. MCB-Related Output Events MCB-Related Output Events Error Message Probable Cause Corrective Action This indicates that there has been a • Use the PC configuration software to SLC1 COMMUNICATIONS FAULT On communication problem between the download the event log and forward SLC2 COMMUNICATIONS FAULT On two processors on the control unit and an electronic copy to Fenwal...
Page 194 Troubleshooting Table 6-5. Other Card-Related Events For the following expansion card-related events, # is the logical address of the Card-Related Events expansion card as defined in the configuration. Error Message Probable Cause Corrective Action Open circuit in field wiring connected to •...
Page 195 Troubleshooting Table 6-5. Other Card-Related Events • Re-initialize the control unit by first RNAC# RAM FAILURE On removing, and then re-applying, RELAY# RAM FAILURE On primary and secondary power RNAC# RAM FAILURE On sources • Functionally test the system The expansion card has failed its check •...
Page 196 Troubleshooting Table 6-6. Remote-Display/Annunciator Events Remote-Display/Annunciator Events Error Message Probable Cause Corrective Action COMMUNICATION FAULT On A communications fault between the • Check the RS-485 wiring from Main Addr RDCM Main Controller Board/User Interface Controller Board Terminal Block J8 and the RDCM at address Addr. to RDCM J8.
Page 197 Troubleshooting Table 6-6. Remote-Display/Annunciator Events Remote-Display/Annunciator Events Error Message Probable Cause Corrective Action • Re-initialize the control unit by first RDCM Addr PROGRAM MEMORY FAULT removing, and then re-applying, primary and secondary power sources • Functionally test the system A communications fault between the •...
Page 198 Troubleshooting Table 6-6. Remote-Display/Annunciator Events Remote-Display/Annunciator Events Error Message Probable Cause Corrective Action • Re-initialize the control unit by first Addr CONFIGURATION FAULT On removing, and then re-applying, primary and secondary power sources • Reconfigure the module using PC configuration software or the control unit menu •...
Page 199: Available Parts
Part Category Part Name Number Systems and FenwalNET 8000-ML 3-Tiered Control Unit (includes Main Control Board with 74-800100-001 Options: Keypad/Display, 5.4A Power Supply and Power Management Unit Board) FenwalNET 8000-ML 2-Tiered Control Unit (includes Main Control Board with 74-800200-001 Keypad/Display, 5.4A Power Supply and Power Management Unit Board)
Page 200 -- with window for integrated LED Annunciator Module (Dead Front Cover Enclosures may be ordered separately, if needed.) and Covers Dead Front Cover for FenwalNET 8000-ML 3-Tiered Main Enclosure 74-800101-005 (for Canadian and City of Chicago Applications) Dead Front Cover for FenwalNET 8000-ML 2-Tiered Main Enclosure...
Page 201 Parts List Part Category Part Name Number Spare Parts 74-800030-002 Expansion Power Supply, 5.4 A (with wiring harness to PMU Board) (continued): 74-800030-001 Replacement Power Supply, 5.4 A (without wiring harness to PMU Board) 74-800030-004 Power Management Unit (PMU) Board 74-800030-005 Power Supply Assembly Mounting Bracket Add-on Power Supply/PMU Assembly (includes 1 Power Supply, PMU...
Page 202 Parts List Part Category Part Name Number SmartOne Handheld Device Programmer, complete with accessories 70-600000-100 (includes SLC Interface Adapter, AC Adapter (120 VAC), AI/AO Module Adapter, 4 NiMH AA Rechargeable Batteries and Storage Case) Handheld Programmer SmartOne Handheld Device Programmer (includes SLC Interface Adapter 70-600000-101 and Quick Reference Guide) SmartOne Handheld Device Programmer Accessory Kit (includes SLC...
Page 203: Appendix Abattery And Power Supply Calculations
Table A-1. Current and Alarm Load Worksheet Unit Standby Unit Alarm Total Total Alarm Unit Description Current Current Standby Current Current FenwalNET 8000-ML Components: MCB (with Keypad/Display) 0.1583 0.300 PMU Board 0.070 0.090 Integrated LED Annunciator (Canadian) 0.032 0.0684 RS-485 External Modules: Remote Display Control Module 0.0895...
Page 204 Table A-1. Current and Alarm Load Worksheet (Continued) Unit Standby Unit Alarm Total Total Alarm Unit Description Current Current Standby Current Current Solenoid-Based Devices: (continued) 897494-000 (WK-897494-000) 1.500 897494-530 (WK-897494-530) 1.500 Marioff 3-101-46A/2 (D21070), Standard 0.920 FM Solenoid (Group A) 0.458 FM Solenoid (Groups B,D) 0.700...
Page 205 Deluge or Pre-Action Water Spray Systems per Factory Mutual 90 hours 10 minutes Note: FenwalNET 8000-ML systems must comply with Table A-2 in order to satisfy UL and FM requirements. Note: The maximum battery capacity that can be charged per UL 864, ULC S527 and FM requirements is 165-AH, derated by 20-percent.
Page 206 CALCULATING POWER SUPPLY NEEDS Use Tables A-3 through A-4 to determine power supply configuration needs. Table A-3. Minimum Power Supply Requirements for 3-Tiered Enclosure Number of Charging Current Total Alarm Current Power Supply Units Available 5.4 A 8.9 A 10.8 A 8.9 A 12 A 8.9 A...
Page 207 CALCULATING MAXIMUM LOAD FOR MULTIPLE POWER SUPPLY UNITS IN ONE ENCLOSURE ° ° At a nominal operating temperature range of 32 to 120 F (0 to 49 C), the installer needs to be aware of power supply limitations which occur when three or more PSU’s are present in a 3-Tiered or 2-Tiered Enclosure.
Page 208 THIS PAGE INTENTIONALLY LEFT BLANK. February 2011 P/N 06-237041-001...
Page 209 Wiring Requirements for FenwalNET 8000-ML Signaling Line Circuit APPENDIX B WIRING REQUIREMENTS FOR FENWALNET 8000-ML SIGNALING LINE CIRCUIT RECOMMENDED WIRE TYPES For best results, use twisted, unshielded, low-capacitance, addressable-fire-alarm wire with a nominal F) per foot for the wire-to-wire capacitance of approximately 20 pf (picofarads, where 1 pf = 10 signaling line circuit.
Page 210 Wiring Requirements for FenwalNET 8000-ML Signaling Line Circuit Table B-2. Typical Wire Types - 16 AWG Manufacturer Part Number Rating Capacitance (pf/ft.) Atlas Wire and Cable Corp. 228-16-1-1TP 12.5 West Penn Wire D990 18.0 Coleman Cable 98161 20.0 Coleman Cable...
Page 211: Appendix B- Wiring Requirements For Fenwalnet 8000-Ml Signaling Line Circuit
Wiring Requirements for FenwalNET 8000-ML Signaling Line Circuit EXAMPLE NO. 1 Determine the recommended wire size for a daisy-chained, CLASS-B, Style-4 SLC with 160 devices and a total wire length of 7,500 feet. The total wire length is the sum of wiring for the positive and negative SLC legs, and is not the linear distance from the control unit to the most-remote device.
Page 212 Wiring Requirements for FenwalNET 8000-ML Signaling Line Circuit THIS PAGE INTENTIONALLY LEFT BLANK. February 2011 P/N 06-237041-001...
Page 213: Appendix Clist Of Agency Listed Compatible Devices
List of Agency Listed Compatible Devices APPENDIX C LIST OF AGENCY LISTED COMPATIBLE DEVICES Table C-1. SLC Initiating and Control Devices Model No. Part Number Description PSD-7152 71-402001-100 Photoelectric Detector PSD-7140 71-401001-000 Photoelectric Detector (retrofit only) PSD-7140 71-401004-000 Photoelectric Detector w/Relay (retrofit only) CPD-7052 70-402001-100 Ionization Detector...
Page 214 List of Agency Listed Compatible Devices Table C-2. Releasing Devices - Solenoid-Based Wire Length (ft.) Max. Max. Resistance Device Model and (Min.) “On” Time Agency (Max.) Part Number Amps Ohms R-NAC Circuit Kidde-Fenwal 2.40 10.0 Momentary — 1 or 2 UL, FM Sol.
Page 215 List of Agency Listed Compatible Devices Table C-2. Releasing Devices - Solenoid-Based Wire Length (ft.) Max. Max. Resistance Device Model and (Min.) “On” Time Agency (Max.) Part Number Amps Ohms R-NAC Circuit For FM Systems: Kidde-Fenwal 0.225 108.0 Steady 3000 2000 1200 1 or 2...
Page 216 List of Agency Listed Compatible Devices THIS PAGE INTENTIONALLY LEFT BLANK. February 2011 P/N 06-237041-001...
Page 217: Appendix Dfm Rules For Preaction/Deluge Systems
FM Rules for Preaction/Deluge Systems APPENDIX D FM RULES FOR PREACTION/DELUGE SYSTEMS FenwalNET 8000-ML applications which require Factory Mutual (FM) approved Pre-Action and/or Deluge Systems must conform to the following guidelines: • Detection Zone 1 (Det1), Detection Zone 2 (Det2) and Waterflow (W'Flow) Initiating Circuits must be configured for CLASS-A, Style D wiring.
Page 218 FM Rules for Preaction/Deluge Systems THIS PAGE INTENTIONALLY LEFT BLANK. February 2011 P/N 06-237041-001...
Page 219: Appendix Eroutings For Power-Limited And Non-Power- Limited Wiring
2-Tiered Enclosure with location of knockouts also noted. Figures E5 through E7 are photographs of a FenwalNET 8000-ML control unit where standard electrical tie wraps and clamps, in addition to the enclosure’s standoffs, brackets and card cage frame, are used to properly dress power-limited and non-power-limited wiring with the required 1/4-in.
Page 220 Routings for Power-Limited and Non-Power-Limited Wiring NOTES: 1. Route wires over small bracket on enclosure. 2. Lay wires flat against back of enclosure. 3. Maintain 1/4-in. separation between power-limited and non-power-limited wiring. Figure E-1. Example Showing Wires Routed From Audible PMU Trouble Sounder to PMU Board February 2011 P/N 06-237041-001...
Page 221 Routings for Power-Limited and Non-Power-Limited P/N 06-237041-001 February 2011...
Page 222 Routings for Power-Limited and Non-Power-Limited Wiring February 2011 P/N 06-237041-001...
Page 223 Routings for Power-Limited and Non-Power-Limited P/N 06-237041-001 February 2011...
Page 224 Routings for Power-Limited and Non-Power-Limited Wiring February 2011 P/N 06-237041-001...
Page 225 Routings for Power-Limited and Non-Power-Limited P/N 06-237041-001 February 2011...
Page 226 Routings for Power-Limited and Non-Power-Limited Wiring February 2011 P/N 06-237041-001...
Page 227: Appendix Ffenwalnet 8000-Ml For Canadian Applications
ULC-S527-99. The dead front cover is constructed of the same steel and matching color as the FenwalNET 8000-ML and is installed between the front door and its internal components. With the dead front cover installed, an operator has access to the front Keypad/Display and LED Annunciator only.
Page 228: Installation
FenwalNET 8000-ML For Canadian Applications (a) Control Unit with Integrated LED Annunciator (b) Control Unit with Blanking Plate Figure F-2. 2-Tiered Canadian Application Enclosures (shown with Enlosure Door removed) INSTALLATION To install the Dead Front Cover and LED Annunciator Module (LAM): Remove the control unit door by first unlocking it, disconnecting the door’s Earth Ground...
Page 229: Appendix Gfenwalnet 8000-Ml For City Of Chicago Applications
The contents of the 3-tiered and 2-tiered City of Chicago Kits are shown below: Part Number Description City of Chicago FenwalNET 8000-ML Kit (consists of FenwalNET 8000-ML 3-Tiered 74-800102-001 Control Unit, City of Chicago Dead Front Cover, City of Chicago Stand-Alone Control Box...
Page 230: Overview Of The Stand-Alone Control Box
The FenwalNET 8000-ML supports an external FIRE ALARM TROUBLE indicator and controller for City of Chicago applications. The external indicator is a 24 Vdc bell. When the FenwalNET 8000-ML panel enters a Trouble state, the System Trouble LED on the FenwalNET 8000-ML front display begins to flash.
Page 231: G-2.2 City Tie Trouble
A pushbutton switch is also located on the front of the box (labeled “Bell Test”) to permit testing of the bell as desired. Note: If a hardware problem occurs with the City Tie Expansion Card, the FenwalNET 8000-ML panel will go into a Trouble state and the FIRE ALARM TROUBLE indicator will activate.
Page 232 FenwalNET 8000-ML For City Of Chicago Applications Refer to Figure G-3 for a guide to connections. SPARE Fire Alarm Control Panel Local Energy Output CITY TIE – To City Box Minus side Minus side Fire Alarm Control Panel Local CITY TIE +...
Page 233: Appendix Hconversion Instructions For Fenwalnet 2000
CONVERSION INSTRUCTIONS FOR FENWALNET 2000 INTRODUCTION This appendix provides instructions on how to convert a FenwalNET 2000 control unit into a fully-functional 2-Tiered FenwalNET 8000-ML control unit, housed in the existing FenwalNET 2000 enclosure. FENWALNET 2000 CONTROL UNIT RETROFIT KIT This procedure requires the purchase of one FenwalNET 2000 Control Unit Retrofit Kit (P/N 74-800400-001) for each FenwalNET 2000 control unit to be retrofitted.
Page 234: H-2.2 Operational Parts
Conversion Instructions for FenwalNET 2000 H-2.2 Operational Parts To fully convert a FenwalNET 2000 control unit into a standard functioning FenwalNET 8000-ML control unit, one of each of the following FenwalNET 8000-ML parts is required: • Expansion Power Supply, 5.4A, with wiring harness to PMU Board, P/N 74-800030-002 •...
Page 235: Procedure
Conversion Instructions for FenwalNET 2000 PROCEDURE Remove the empty electronics brackets which are attached to the FenwalNET 2000 control unit. (An installer may chose his own method to remove the empty brackets, based on individual experience and available tools.) Note: A suggested method, which is safe and easy to perform, is to use a Drummel tool (with a grinding wheel attached) to first grind off all pop rivets in the cabinet.
Page 236 Chapter 2 of this manual (or packaged individually with the equipment). 17. After all electronics have been installed, place the replacement door on the enclosure hinges. PMU Audible Trouble Sounder Figure H-2. The Retrofitted Enclosure with FenwalNET 8000-ML Electronics Installed February 2011 P/N 06-237041-001...
Page 237: Index
INDEX INDEX 2-Tiered enclosure Battery Monitoring Mode , 1-4, 1-7, 1-13, 1-27, 2-5 , 1-13, 5-1 battery tray to 2-7, 7-1 to 7-3, A-4 to A-5, E-1, E-5, F-1, G-1, , 1-4, 2-2, 7-3 installation , 2-26 2-Tiered enclosure see also enclosure, battery, Real-Time Clock , 4-10 main...
Page 238 INDEX dimensions 2-Tiered enclosure , 1-27 keypad/display , 1-4, 1-6 to 1-9, 1-11, 1-20, 3-Tiered enclosure , 1-4, 1-27 1-25, 1-29, 2-1, 2-5, 2-8 to 2-9, 2-17, 3-1, 3-3, main and expansion enclosures , 1-4 3-23, 3-38, 4-1 to 4-3, 4-5 to 4-6, 7-2, H-2, H-4 remote enclosure , 1-4 audible buzzer...
Page 239 INDEX notification appliances, 24-Vdc, recommended , 2-36 Relay Card , 1-4, 1-16, 1-18, 2-42 specifications , 1-28 relay module , 2-4, 2-29, 3-3, 3-8, 3-21, 4-13, operator control keys , 1-9 4-19 Model AO Fwd-ii, 1-23 to 1-24, 2-3, 2-30, 3-22, 4-6, 6-12, 7-4 parts list , 7-1 to 7-4...
Page 240 INDEX Signaling Line Circuit (SLC) Card , 1-4, 1-15 to 1-17 wiring diagram , Fwd-i, 1-17 to 1-18, 2-47 to specifications , 1-27 2-48 SmartOne addressable modules , 1-23 to City Tie , 2-43 1-25, 7-4, C-1 CLASS-A and CLASS-B SLC , 2-31 soft keys , 1-9, 1-20, 4-3...
Page 242 Fenwal, SmartOne, AnaLASER and AnaLASER II are registered trademarks of Kidde-Fenwal, Inc. FenwalNET 8000-ML and AIR-Intelligence are trademarks of Kidde-Fenwal, Inc. All other trademarks are the property of their respective owners. These instructions do not purport to cover all the details or variations in the equipment described,...

UTC Fire and Security FenwalNET 8000-ML Installation, Operation And Maintenance Manual

Chapter 2 Installation

Chapter 4 Operation

Chapter 6 Troubleshooting

Appendix Abattery and Power Supply Calculations

APPENDIX B- Wiring Requirements for Fenwalnet 8000-ML Signaling Line Circuit

Appendix Clist of Agency Listed Compatible Devices

Appendix Dfm Rules for Preaction/Deluge Systems

Appendix Eroutings for Power-Limited and Non-Power- Limited Wiring

Appendix Ffenwalnet 8000-Ml for Canadian Applications

Appendix Gfenwalnet 8000-Ml for City of Chicago Applications

Appendix Hconversion Instructions for Fenwalnet 2000

Quick Links

Need help?

Questions and answers

Related Manuals for UTC Fire and Security FenwalNET 8000-ML

Summary of Contents for UTC Fire and Security FenwalNET 8000-ML

Table of Contents
