Summary of Contents for UTC Fire and Security interlogix VT7820
- Page 1 VT7820 VR7820 VT7820-R3 VR7820-R3 VT7830 VR7830 VT7830-R3 VR7830-R3 IFS Fiber Module Installation & Operation Instructions P/N 1062792 • REV B • ISS 01JUL11...

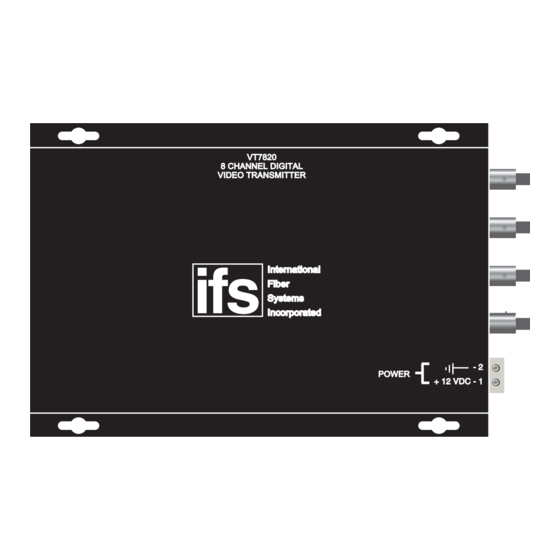

- Page 2 8 BNC Cables (Input from cameras) VT7820 8 CHANNEL DIGITAL VIDEO TRANSMITTER International Fiber Systems Incorporated Black wire POWER Black with + 12 VDC - 1 white stripe Simplex multimode fiber optic cable 8 BNC Cable (Output to monitors) VR7820 8 CHANNEL DIGITAL VIDEO RECEIVER International...
- Page 3 VR7800 VT VR VT VR VT VR VT VR CH 5 CH 6 CH 7 CH 8 VIDEO STATUS VT VR VT VR VT VR VT VR CH 1 CH 2 CH 3 CH 4 OPTICAL POWER CARRIER Camera on Status indicating Video Present LEDs will change...
- Page 4 VT7800 CH 7 CH 8 CH 5 CH 6 VIDEO STATUS CH 3 CH 4 CH 1 CH 2 POWER A Camera on Status indicating LEDs will change from RED to Power GREEN with these conditions. NOTE: WITHOUT PROPER FIBER CONNECTION, LED's DO NOT INDICATE CORRECT OPERATIONAL STATUS OF THE UNIT.
- Page 5 INSTALLATION INSTRUCTIONS FOR ADDITIONAL COMPONENTS REQUIRED TO MEET EMISSION REQUIREMENTS ON THE VT78XX-R3 AND VR78XX-R3 Series RACK MOUNT UNITS. GASKET INSTALL SUPPLIED CONDUCTIVE FOAM GASKET (IFS P/N MMRFGSKT 375X500 or CHOMERICS P/N 82-122-74021-09600) CUT TO 3 INCH LENGTH AND PLA CE ON THE TOP RAIL OF THE RACK WHERE THE UNIT IS TO BE INSTALLED.
-
Page 6: Fcc Compliance
FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesirable operation. Changes or modifications not expressly approved by International Fiber Systems, Inc. - Page 7 Contacting us For help installing, operating, maintaining, and troubleshooting this product, refer to this document and any other documentation provided. If you still have questions, contact us during business hours (Monday through Friday, excluding holidays, between 5 a.m. and 5 p.m. Pacific Time). Sales and support contact information North Toll-free: 855.286.8889 in the US, including Alaska and Hawaii;...
- Page 8 Product Disassembly Instructions for WEEE Per European Directive 2002/95/EC Waste Electrical and Electronic Equipment Required Tools: One number 2 Phillips (crosstip) screwdriver. One number 2 flat screwdriver. For the enclosed box version: 1. Locate and remove box cover securement screws. Usually, but not limited to, at least 4 screws.
- Page 9 Copyright © 2011 UTC Fire & Security. All rights reserved. Trademarks and Interlogix and IFS names and logos are trademarks of patents UTC Fire & Security. Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products.
