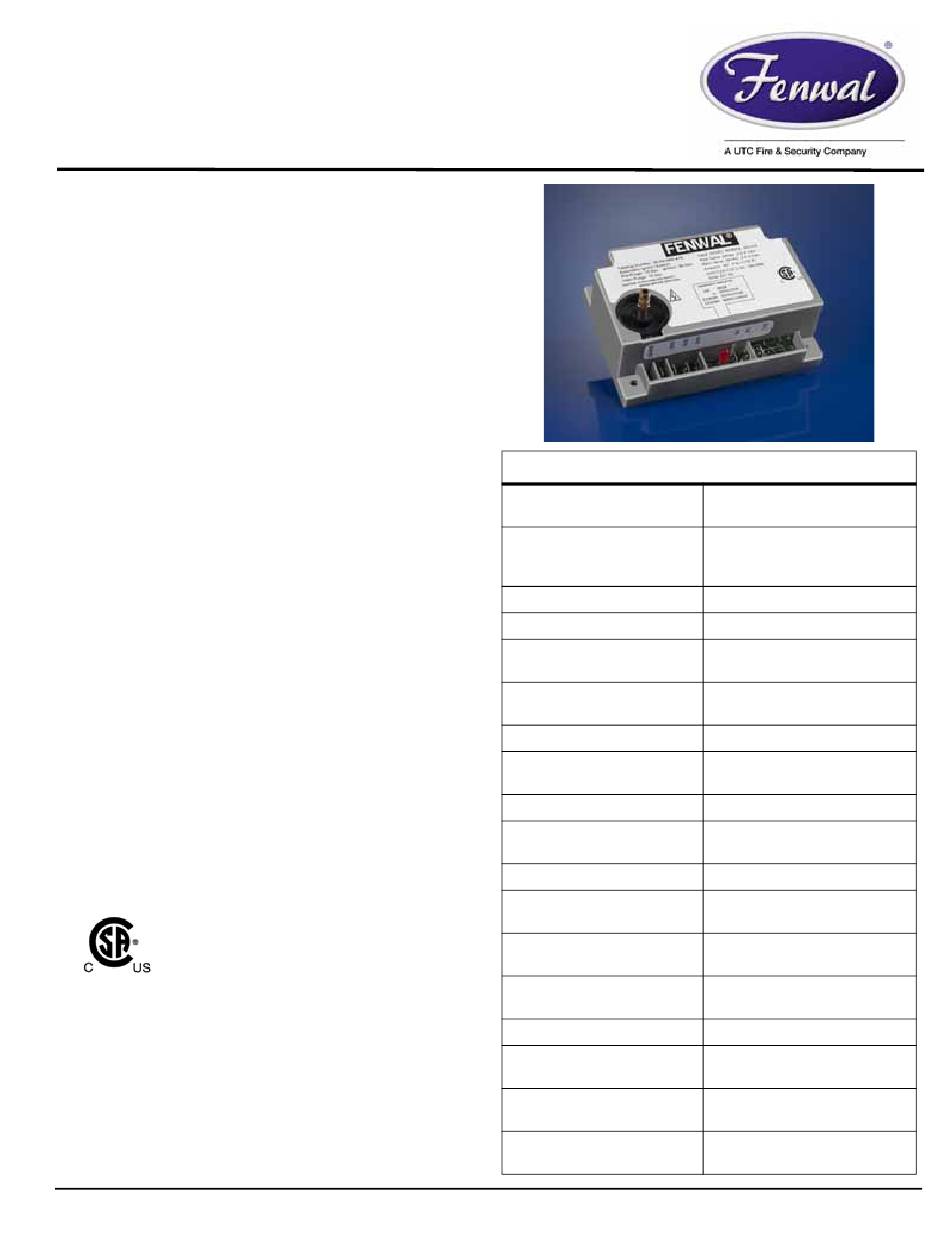

SERIES 35-63J
INSTALLATION INSTRUCTIONS FOR REPLACING JOHNSON CONTROLS G77X
AND OTHER MODELS WITH FENWAL SERIES 35-63J IP IGNITION CONTROL
APPLICATIONS
The Fenwal 35-63J series Intermittent Pilot Ignition Control (35-
63J) is a microprocessor based ignition control suitable for
replacing many existing intermittent pilot ignition controls from
various manufacturers.
The 35-63J is a direct form, fit, and functional replacement for
the discontinued Johnson G77x series controls. The 35-63J is
available in a number of timing configurations that match popu-
lar G77x applications providing a better solution than a univer-
sal type aftermarket control. The most common applications are
listed in "Control Cross Reference" on page 2.
The 35-63J is suitable for many types of heating applications
including commercial cooking, furnaces, boilers, and water
heaters that require intermittent pilot ignition, burner supervi-
sion through flame rectification, and safety shutoff. It is
designed for use with Natural, LP, and mixed gases used in
gas-fired appliances.
The microprocessor circuit design of the 35-63J provides pre-
cise, repeatable timing and operating sequences. High energy
spark output and excellent flame sense characteristics provide
reliable burner operation. The on-board diagnostics with LED
output make troubleshooting easy and ensure safe and efficient
operation.
FEATURES
•
Safe start and full-time flame sensing
•
Wide variety of prepurge and interpurge timings
•
Single or three trials for ignition
•
Diagnostic LED with Fenwal error codes
•
Three ground terminals for ease of wiring
•
Remote or local flame sense options
•
Automatic 5 min or 1 hour reset after lockout options
AGENCY CERTIFICATIONS
CSA Design certified to ANSI Z21.20,
CAN/CSA C22.2 No. 199-M99
SPECIFICATIONS
Input Power
Input Current Drain
Main Gas Valve
Pilot Gas Valve
Operating Temperature
Storage Temperature
Flame Sensitivity
Flame Failure Response or
Reignition Time
Flame Detector Self-check Rate
Flame Failure Lockout Time
Types of Gas
Spark Rate
Size (LxWxH)
Moisture Resistance
Tries for Ignition
Trial for Ignition Periods
Pre-purge Timings
Inter-purge Timings
June 2011
Control: 18-30 VAC 50/60 Hz
(Class 2 Transformer)
200 mA @ 24 VAC with gas and
pilot relays energized (Control
only)
2.0A max (continuous)
2.0A max (continuous)
-40°F to + 176°F
(-40°C to +80°C)
-40°F to + 185°F
(-40°C to +85°C)
0.3 μA minimum
0.8 seconds minimum
Once per second minimum
Varies by model, 500 seconds
maximum
Natural, LP, or manufactured
Remote sense (50/60 Hz)
Local sense (25/30 Hz)
4.70 x 3.10 x 2.50 inches
(11.94 x 7.87 x 6.35 cm)
Conformal coated to operate non-
condensing to 95% R.H.
One or three try versions available
8, 25, 50, 85, and 120 seconds
available
None, 4,15, or 30 seconds
available
None, 15, 30, or 45 seconds avail-
able
06-237172-001 Rev AA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for UTC Fire and Security Fenwal 35-63J Series
Summary of Contents for UTC Fire and Security Fenwal 35-63J Series
- Page 1 INSTALLATION INSTRUCTIONS FOR REPLACING JOHNSON CONTROLS G77X AND OTHER MODELS WITH FENWAL SERIES 35-63J IP IGNITION CONTROL APPLICATIONS The Fenwal 35-63J series Intermittent Pilot Ignition Control (35- 63J) is a microprocessor based ignition control suitable for replacing many existing intermittent pilot ignition controls from various manufacturers.
-
Page 2: Mounting And Wiring
CONTROL CROSS REFERENCE MOUNTING AND WIRING The 35-63J is not position sensitive and can be mounted verti- Manufacturer/ Model Number cally or horizontally. The case may be mounted on any surface with #6 sheet metal screws. Johnson Controls Fenwal Replacement G770KGA-1,3 35-63J101-011 The control must be mounted and located in... -
Page 3: Rollout Switch
ROLLOUT SWITCH Some control applications may have a separate rollout switch directly connected to the old ignition control. In this case, the Vent Damper rollout switch (normally closed) should be connected directly to the THS terminal on the 35-63J. Verify the rollout switch is wired in series (downstream) with the thermostat signal. -
Page 4: Wiring Diagrams
WIRING DIAGRAMS CHECKOUT Risk of Explosion or Fire Verify there are no gas leaks by using a rich soap and water solution on all joints and pipe connections. Never use a match or lighter to test for the presence of gas. Fail- WARNING ure to test properly before operation can lead to explosion or fire and may result in... - Page 5 SEQUENCE OF OPERATION / FLAME FLAME FAILURE RESPONSE RECOVERY / SAFETY LOCKOUT RECYCLE MODE (STANDARD) With "recycle after loss of flame", upon loss of pilot flame, both START UP - HEAT MODE the pilot and main gas valves are de-energized immediately. When a call for heat is received from the thermostat supplying After the flame recycle delay, the control attempts to relight the 24 volts to THS the following sequence occurs in the order...
-
Page 6: Troubleshooting Guide
TROUBLESHOOTING Troubleshooting Guide Risk of Explosion or Fire Symptom Probable Cause The 35-63J ignition control cannot be ser- viced by the user. If any control faults are 1. Control A. Mis-wired detected, the 35-63J control module must does not start B. - Page 7 STANDARD PART NUMBER CONTROL CONFIGURATION 35 – 6 3 J X X X X X X – Description TRIAL FOR PILOT IGNITION 1 = 8 Seconds 3 = 25 Seconds 5 = 50 Seconds 7 = 85 Seconds 8 = 120 Seconds INTER-PURGE (RECYCLE DELAY) 0 = None (Single try models only) 1 = 15 Seconds...
- Page 8 DIMENSIONS Figure 5. Control Dimensions with Cover Fenwal Controls, Kidde-Fenwal Inc. A UTC Fire & Security Company 400 Main Street ©2011 Kidde-Fenwal, Inc. 06-237172-001 Rev AA Ashland, MA 01721 Tel: 800-FENWAL-1 Fax: 508-881-7619 www.fenwalcontrols.com...
