Air Filter Element - Replace - Mahindra Genio DC BS-IV Maintenance Manual

Maintenance Manual
GENIO DC
(BS-III & BS-IV)
705-MAT-0010 : 0.25 hrs.
AIR FILTER - REPLACE
Nut/ Bolt description
Air filter top cover allen bolt

Hose clamps – air cleaner to

manifold
A
1

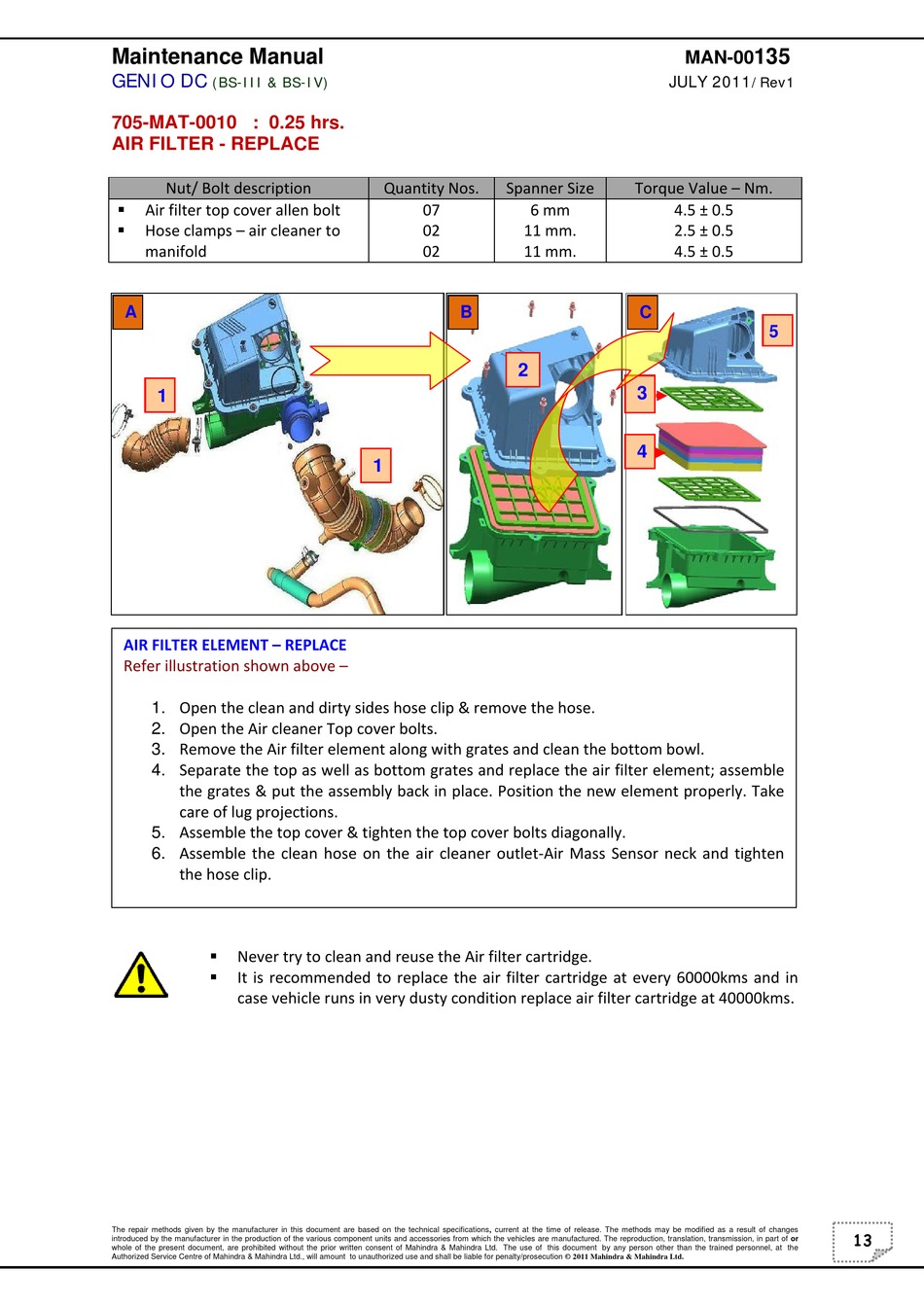

AIR FILTER ELEMENT – REPLACE
Refer illustration shown above –
1. Open the clean and dirty sides hose clip & remove the hose.
2. Open the Air cleaner Top cover bolts.
3. Remove the Air filter element along with grates and clean the bottom bowl.
4. Separate the top as well as bottom grates and replace the air filter element; assemble
the grates & put the assembly back in place. Position the new element properly. Take
care of lug projections.
5. Assemble the top cover & tighten the top cover bolts diagonally.
6. Assemble the clean hose on the air cleaner outlet-Air Mass Sensor neck and tighten
the hose clip.
Never try to clean and reuse the Air filter cartridge.

It is recommended to replace the air filter cartridge at every 60000kms and in

case vehicle runs in very dusty condition replace air filter cartridge at 40000kms.
