Auto Tensioner Replace - Mahindra Genio DC BS-IV Maintenance Manual

Maintenance Manual
GENIO DC
(BS-III & BS-IV)
705-MAT-0005 : 0.60 hrs.

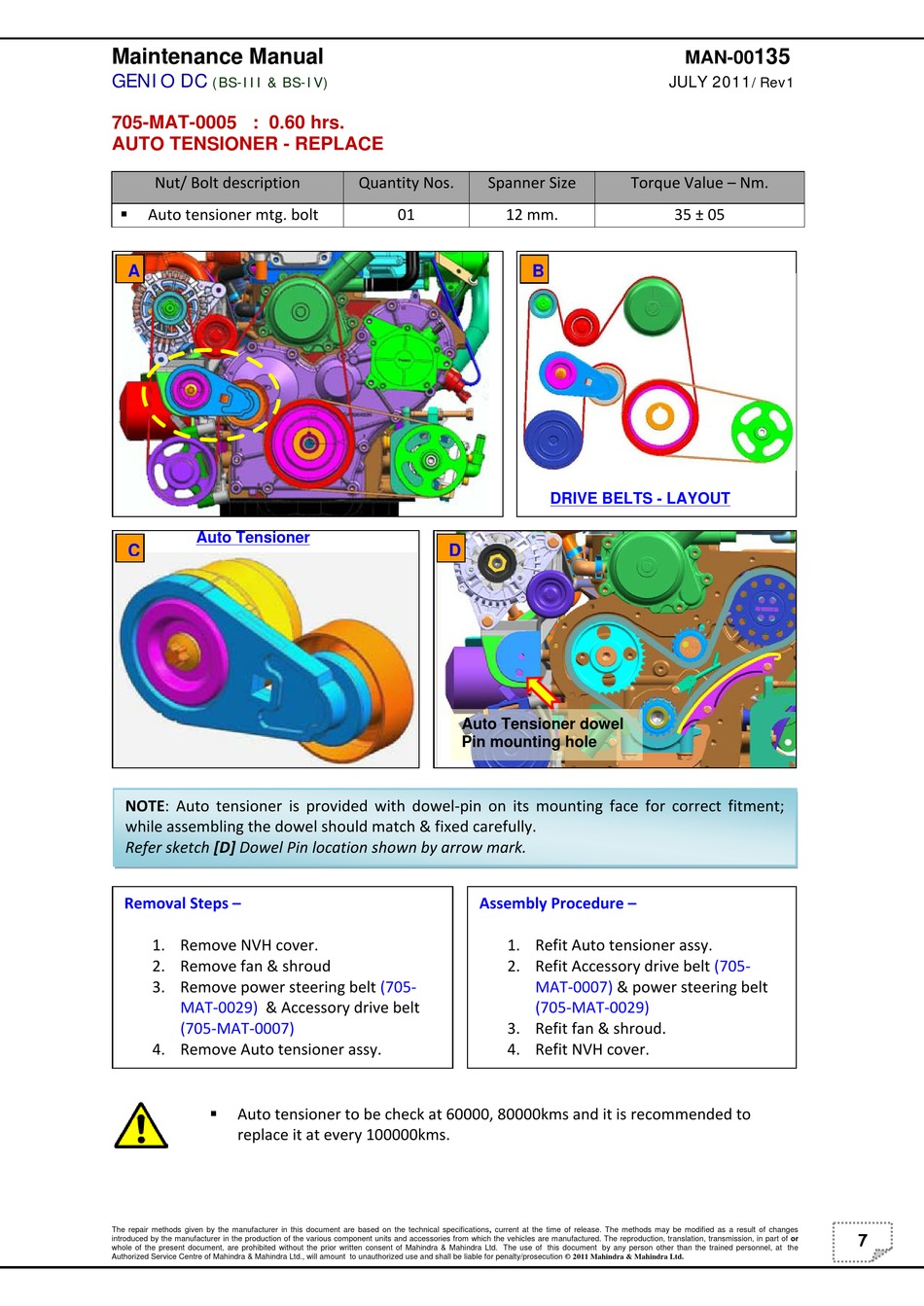

AUTO TENSIONER - REPLACE
Nut/ Bolt description
Auto tensioner mtg. bolt

A
Auto Tensioner
C
NOTE: Auto tensioner is provided with dowel-pin on its mounting face for correct fitment;
while assembling the dowel should match & fixed carefully.
Refer sketch [D] Dowel Pin location shown by arrow mark.
Removal Steps –
1. Remove NVH cover.
2. Remove fan & shroud
3. Remove power steering belt
MAT-0029) & Accessory drive belt
(705-MAT-0007)
4. Remove Auto tensioner assy.
Auto tensioner to be check at 60000, 80000kms and it is recommended to

replace it at every 100000kms.
