MAIN MACHINE COMPONENTS

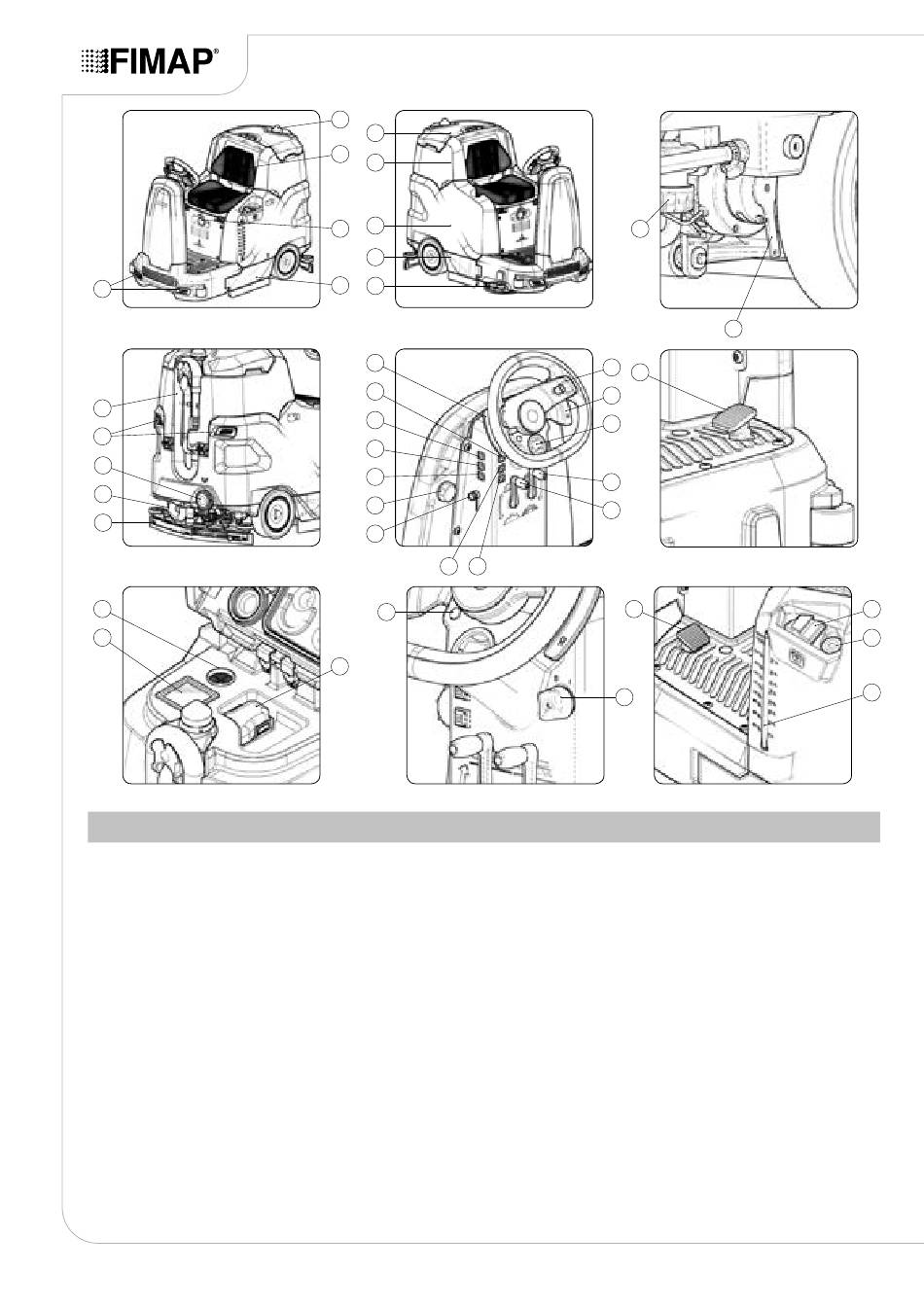

The machine's main components are the following:
1. Lateral scrubbing brush head (optional).
2. Scrubbing brush head.
3. Squeegee body.
4. Hour meter display – battery charge level.
5. Headlights (optional).
6. Tail lights (optional).
7. Suction motor air intake filter.
8. Suction motor air duct filter.
9. Recovery tank filter.
10. Detergent solution filter.
11. Main key switch.
12. Blinking light (optional).
13. Brush head extra pressure LED indicator.
14. Brush head control lever.
15. Electric brake control lever.
16. Detergent solution tap control lever.
17. Squeegee control lever.
18. Brush head extra pressure selection lever.
19. Reverse gear selection lever.
20. Service brake pedal.
21. Drive pedal.
12
27
26
28
29
25
30
31
1
18
22
23
42
41
40
16
24 43
13
9
22. Horn button.
23. Button for activating the automatic dosing system or the automatic
24. Side brush control button (optional).
25. Emergency button.
26. Operator seat
27. Recovery tank lid.
28. Recovery tank.
29. Solution tank.
30. Right hatch.
31. Left hatch.
32. Squeegee support.
33. Solution tank drainage shaft cap.
34. Solution tank cap.
35. Squeegee vacuum hose.
36. Solution tank rapid filling hose.
37. Solution tank level hose.
38. Recovery tank drainage hose.
39. Steering wheel.
40. Detergent canister cap (version with automatic dosing system).
41. Button activating the spray gun (optional).
42. Button adjusting the automatic dosing system (optional).
43. Button activating the vacuum wand (optional).
8
10
39
21
19
4
14
17
20
11
recycle system (optional).
15
34
36
37
