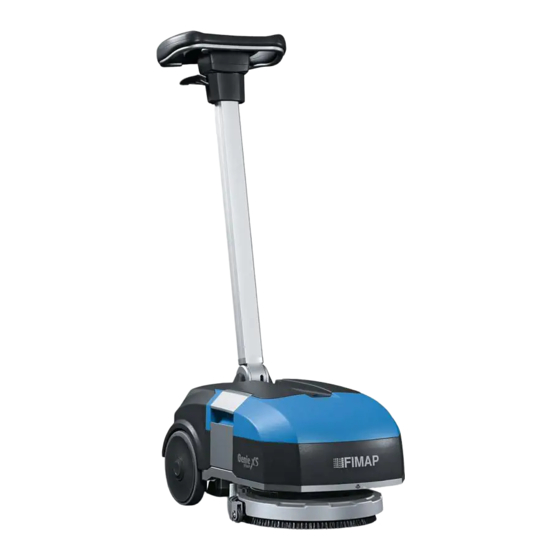

- Page 1 Genie XS PROFESSIONAL MICRO AUTOSCRUBBER USE AND MAINTENANCE MANUAL TRANSLATION OF THE ORIGINAL INSTRUCTION DOC. 10049257 - Ver. AD - 09-2015...
-
Page 3: Table Of Contents
CONTENTS CONTENTS ........................1 SYMBOLS USED IN THE MANUAL ................3 PURPOSE AND CONTENT OF THE MANUAL ...............3 TARGET GROUP ......................3 STORING THE USE AND MAINTENANCE MANUAL .............3 ON DELIVERY OF THE APPLIANCE ................3 INTRODUCTORY COMMENT ..................3 IDENTIFICATION DATA ....................4 TECHNICAL DESCRIPTION ....................4 INTENDED USE ........................4 SAFETY ..........................4 SERIAL NUMBER PLATE ....................4... - Page 4 OVERFLOW DEVICE ....................21 AT THE END OF THE WORK ..................22 MAINTENANCE ......................23 RECOMMENDED MAINTENANCE OPERATIONS ..........23 CHECKING AND CLEANING THE RECOVERY TANK ..........24 CHECKING AND CLEANING THE VACUUM COVER ..........25 CHECKING AND CLEANING THE BRUSH ..............26 CHECKING AND CLEANING THE SQUEEGEE BODY ..........26 CHECKING AND CLEANING THE VACUUM HOSE ..........27 CHECKING AND CLEANING THE SOLUTION FILTER ..........28 CHECKING AND CLEANING THE SOLUTION TANK ..........28...
-
Page 5: Symbols Used In The Manual
SpA cannot be held liable for damages resulting from failure to responsible for appliance maintenance. Operators must not perform comply with this prohibition. operations that should be carried out by qualified technicians. FIMAP STORING THE USE AND MAINTENANCE MANUAL The Use and Maintenance Manual must be stored in its special else that could compromise its legibility. -
Page 6: Identification Data
TECHNICAL DESCRIPTION The Genie XS is a scrubbing machine that is able to clean a wide removed and the detergent solution that has not been absorbed by range of flooring and dirt types by means of the mechanical action the floor. -
Page 7: Technical Data
TECHNICAL DATA Genie XS Working width Squeegee width Working capacity, up to Maximum gradient with full load Total power Disc brush no. / Ø mm 1 / 280 Brush motor 36 / 90 Disc brush rotations Maximum pressure on the brush... -
Page 8: General Safety Regulations
GENERAL SAFETY REGULATIONS The regulations below must be carefully followed in order to avoid harm to the operator and damage to the appliance. WARNING: • Carefully read the labels on the appliance. Do not cover them for any reason and replace them immediately if they become damaged. - Page 9 • The appliance must only be powered with a voltage equal to that shown on the serial number plate. • When left unattended, the appliance must be protected from unintentional movements. The appliance must not be transported or parked in its idle position when the solution tank and recovery tank are full.
- Page 10 • Adapt the speed to the adhesion conditions. • Avoid working with the brushes when the machine is standing still, so as not to damage the floor. • Do not knock against shelving or scaffolding, where there is a danger of falling objects. The operator must always be equipped with the appropriate safety devices (gloves, shoes, helmet, goggles, etc.).
-
Page 11: Symbols Used On The Appliance
The overall weight of the appliance with packaging is 25 kg (weight of empty machine plus packaging). The dimensions of the package are as follows: Genie XS HOW TO UNPACK THE APPLIANCE The appliance is enclosed within special packaging; to remove the 3. -
Page 12: How To Transport The Appliance
HOW TO TRANSPORT THE APPLIANCE To safety transport the appliance, proceed as follows: 4. It is now possible to safely transport the appliance. 1. Take all necessary steps to ensure that the device is in a safe condition (see “MACHINE SAFETY ’”). -
Page 13: Main Solution Tank Components
MAIN SOLUTION TANK COMPONENTS The pre-assembly solution tank components are identified as follows: 1. Tank filler plug. 2. Tank discharge plug. 3. Tank lifting handle. 4. Tank safety valve. MAIN RECOVERY TANK COMPONENTS The pre-assembly recovery tank components are identified as follows: 1. -
Page 14: Main Handlebar Control Components
MAIN HANDLEBAR CONTROL COMPONENTS The handlebar control components are identified as follows: 4. “VACUUM MOTOR” activation-de-activation button. 1. “AUTOMATIC” mode button. 5. Display. 2. “ECO - MODE” button. 6. Dead man's lever. 3. “DETERGENT SOLUTION” regulation control button. MAIN BATTERY CHARGING BASE COMPONENTS The basic components of the battery charger base are identified as 6. -
Page 15: Battery Type
BATTERY TYPE To power the appliance, use only the battery supplied in the package or by a specialised technician. OTHER BATTERY TYPES CANNOT BE USED. The appliance is powered by a lithium-ion battery. The battery compartment can accommodate a single battery slot at 36.5V. BATTERY MAINTENANCE AND DISPOSAL For maintenance and recharging, respect the instructions provided •... -
Page 16: Removing The Battery From The Appliance
REMOVING THE BATTERY FROM THE APPLIANCE To remove the battery, proceed as follows: ATTENTION: During this operation, do not rest your foot on 1. If the appliance is working, turn it off via the main switch (1) (Fig. the appliance. 2. - Page 17 7. Connect the battery charger power supply cable plug to the mains WARNING: Check that, when giving continuity to the circuit of socket. the battery charger, the green LED (8) present on the battery charger(Fig.8) turns on. This LED indicates that the battery WARNING: Before connecting to the plug to the socket, charger circuit is correctly powered.
-
Page 18: Control Handlebar Adjustment
CONTROL HANDLEBAR ADJUSTMENT Correct adjustment of the control handlebar guarantees comfortable ATTENTION: During this operation, do not rest your foot on use of the appliance. To adjust the control handlebar, proceed as the appliance. follows: 1. If the appliance is working, turn it off via the main switch (1) (Fig. 3. - Page 19 6. Check that the solution tank drainage cap (4) is positioned 8. Fill with clean water, at a temperature not higher than 50 °C and correctly; if not, rectify this (Fig.4). not lower than 10°C. 7. Remove the detergent solution filling cap (5) from its seat, on the solution tank (Fig.5).
-
Page 20: Detergent Solution
DETERGENT SOLUTION Add the liquid detergent to the solution tank in the concentration and and do not contain oxidising agents, chlorine or bromine, manner indicated on the detergent manufacturer's label. formaldehyde, mineral solvents. ATTENTION: The formation of excess foam could damage ATTENTION: protective gloves should always be worn before the vacuum motor, so use only the minimum amount of handling detergents or acidic or alkaline solutions, to avoid... -
Page 21: Work
5. Verify that the quantity of detergent solution in the solution tank is 6. Insert the battery into the battery holder compartment (read suitable for the type of work you wish to carry out, otherwise fill the paragraph “INSERTING THE BATTERY INTO THE APPLIANCE”). -
Page 22: Pre-Wash" Working Program
“PRE-WASH” WORKING PROGRAM If you need to perform a pre-wash working program without drying, the machine; behind the brush and beneath the main part of the proceed as follows: machine). 1. If the appliance is working, turn it off via the main switch (1) (Fig. 3. -
Page 23: Regulating The Detergent
REGULATING THE DETERGENT To regulate the detergent, proceed as follows: For each press of the button (2), the quantity of solution released will 1. Verify that the quantity of detergent solution in the solution tank increase by one level. The quantity of solution released can be set to is suitable for the type of work you wish to carry out, otherwise fill three successive levels. -
Page 24: At The End Of The Work
5. Turn the control steering column to the vertical position (Fig.4). 7. Tilt the machine and move the unit into a suitable place for discharging waste water. Empty the recovery tank (refer to TANK”) (Fig. 6). ATTENTION: During this operation, do not rest your foot on “CHECKING AND CLEANING THE RECOVERY the appliance. -
Page 25: Maintenance
8. Once the maintenance operations are complete, take the 10. When the handlebar is in the horizontal position, release the stop appliance to the designated storage area. lever (3) to lock the handlebar. 9. Block the handlebar in the horizontal position. Push the steering 11. -
Page 26: Checking And Cleaning The Recovery Tank
CHECKING AND CLEANING THE RECOVERY TANK Proceed as follows to empty the recovery tank: 4. Remove the recovery tank using the handles (2) present on the 1. Take the appliance to the dedicated waste water drainage area. tank (Fig.2). Gently place on the floor. ATTENTION: The place this operation is carried out should ATTENTION: Users are advised to always wear protective comply with current environmental protection regulations. -
Page 27: Checking And Cleaning The Vacuum Cover
CHECKING AND CLEANING THE VACUUM COVER The careful cleaning of the vacuum cover floats guarantees a longer 6. First with a jet of water and then with a damp cloth, thoroughly appliance life span. Proceed as follows to clean the vacuum cover: clean the central floats (3) (Fig.4). -
Page 28: Checking And Cleaning The Brush
CHECKING AND CLEANING THE BRUSH Careful cleaning of the brushes guarantees better cleaning of the floor as well as a longer brush motor life. To clean the brushes, proceed as follows: appliance must 1. Take the appliance to its designated maintenance area. 2. -
Page 29: Checking And Cleaning The Vacuum Hose
6. Lift the squeegee attachment (1) (Fig.4). 11. Check the wear of the front rubber blade (8) on the squeegee 7. Remove the squeegee from the slots on the squeegee connector body; if the edge of the rubber in contact with the floor is worn, (4), taking care not to lose the seal (5) on the vacuum nozzle replace it, however the rubber can be turned onto another of its (Fig.5). -
Page 30: Checking And Cleaning The Solution Filter
CHECKING AND CLEANING THE SOLUTION FILTER The careful cleaning of the detergent solution filter guarantees a 3. Disconnect the tank stop levers (1), and rotate in the direction longer appliance life span. Proceed as follows to clean the detergent indicated by the arrow (Fig.1). solution filter: 4. - Page 31 8. Insert the solution tank into the appliance, taking care not to ATTENTION: Before placing the recovery tank in position, damage the vacuum hose inlet (6) on the vacuum motor, and the check that the drainage cap is correctly in place; if not, rectify squeegee body vacuum hose (7).
-
Page 32: Troubleshooting
TROUBLESHOOTING This chapter lists the most common problems linked with the use of the appliance. If you are unable to resolve the problems with the information given here, please contact your nearest assistance centre. PROBLEM POSSIBLE CAUSE SOLUTION Check that the main switch has been The main switch is in the “0”... - Page 33 PROBLEM POSSIBLE CAUSE SOLUTION Read the section “THE APPLIANCE DOES The appliance does not switch on. NOT SWITCH ON”. The amount of detergent solution dispensed Read the section “NOT ENOUGH DETER- is inadequate. GENT SOLUTION ON THE BRUSH”. Check that the selected program The program selected is not appropriate for is suitable for the work to be carried out the work to be carried out.
-
Page 34: Disposal
