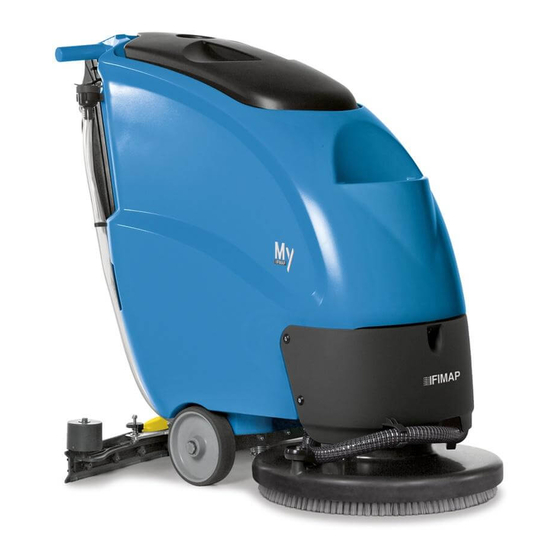

Fimap MY50 Use And Maintenance Manual
  1. Manuals
  2. Brands
  3. Fimap Manuals
  4. Scrubber
  5. MY50
  6. Use and maintenance manual

Fimap MY50 Use And Maintenance Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

USE AND MAINTENANCE MANUAL
MY50 2014 B-E 2014
ED. 09-2019
ENG
ORIGINAL
INSTRUCTIONS
Doc. 10049999
Ver.
AB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MY50 and is the answer not in the manual?

Questions and answers

Related Manuals for Fimap MY50

Summary of Contents for Fimap MY50

  • Page 1 USE AND MAINTENANCE MANUAL MY50 2014 B-E 2014 ED. 09-2019 ORIGINAL INSTRUCTIONS Doc. 10049999 Ver.
  • Page 2 The descriptions contained in this document are not binding. The company therefore reserves the right to make any modifications at any time to elements, details, or accessory supply, as considered necessary for reasons of improvement or manufacturing/commercial requirements. The reproduction, even partial, of the text and drawings contained in this document is prohibited by law.

  • Page 3: Table Of Contents

    CONTENTS ON CONSIGNMENT OF THE MACHINE ............................5 INTRODUCTORY COMMENT ..............................5 INTENDED USE ..................................5 SERIAL NUMBER PLATE ................................. 5 SYMBOLS USED ON THE MACHINE ............................7 GENERAL SAFETY REGULATIONS ............................9 PREPARATION OF MACHINE ..............................10 1. HANDLING THE PACKED MACHINE ................................10 2.
  • Page 4 DISPOSAL..................................... 27 CHOOSING AND USING THE BRUSHES ..........................28 EC DECLARATION OF CONFORMITY ............................29...

  • Page 5: On Consignment Of The Machine

    INTRODUCTORY COMMENT My50 is a scrubbing machine that is able to clean a wide variety of flooring and dirt types by using the mechanical action of at least one disk or cylindrical brushes (depending on the model), and the chemical action of a water-detergent solution.
  • Page 6 My50 E My50 E My50 B TECHNICAL DESCRIPTION 230V 110V Nominal input power [IEC 60335-2-72; IEC 62885-9] 0,91 0,82 Working width Squeegee width (standard – optional) 683-780 683-780 683-780 Working capacity, up to 1890 1890 1890 Disc brushes 510 (1)

  • Page 7: Symbols Used On The Machine

    SYMBOLS USED ON THE MACHINE Main switch symbol Used on the instrument panel, to indicate the switch for machine operation ON or OFF Symbol denoting suction motor Used on the instrument panel to indicate the switch that commands suction motor operation Brush uncoupling symbol Used on the instrument panel to indicate the button for automatic brush uncoupling Squeegee UP symbol...
  • Page 8 SYMBOLS USED ON THE MACHINE Warning - high voltage 110-230 Volt Indicates the earth connection point of the electric system of the machine Indicates the maximum gradient...

  • Page 9: General Safety Regulations

    GENERAL SAFETY REGULATIONS Before using the machine, please read the following document carefully and follow the instructions contained herein, along with the instructions in the document supplied with the machine itself, "GENERAL SAFETY REGULATIONS" (document code 10083659).

  • Page 10: Preparation Of Machine

    The machine is contained in specific packaging with a pallet for the handling with fork trucks. The packages CANNOT be placed on top of each other. The total mass of the machine with packaging is 76.5 kg (without batteries) The packaging dimensions are as follows: My50 A : 1145 mm B: 665 mm C: 1230 mm 2.

  • Page 11: Rear Components Of The Machine

    MACHINE PREPARATION 4. REAR COMPONENTS OF THE MACHINE The components at the rear of the machine are identified as follows: Brush operation / dead man's levers (located beneath the grip) Display for battery level / hour meter (battery-operated versions) Digital hour meter (electric versions) Main machine switch Suction motor switch Control lever for commanding the squeegee lifting cable...

  • Page 12: Fitting The Batteries Into The Machine (B Version)

    PREPARATION OF MACHINE ATTENTION: users are advised to always wear protective gloves, to avoid the risk of serious injury to hands. ATTENTION: you are advised to only lift and move the batteries with lifting and transportation means suitable for the specific weight and size 8.

  • Page 13: Battery Charger Connection (B Version, Without Bc)

    ATTENTION: you are advised to have the electric connections made by a qualified, FIMAP trained technician 9. BATTERY CHARGER CONNECTION (B VERSION, WITHOUT BC) In order not to cause permanent damage to the batteries, it is essential to avoid their complete discharge: arrange the recharge within a few minutes of the switching on of the "discharged batteries"...
  • Page 14 PREPARATION OF MACHINE To connect the batteries you must: 1. Make sure the dirty water recovery tank is empty; if necessary, empty it completely 2. Make sure the switch is in the OFF position 3. Take the machine to the designated machine storage place ATTENTION: park the machine indoors, on a flat and level surface;...

  • Page 15: Digital Hour Meter (B Versions)

    MACHINE PREPARATION 11. DIGITAL HOUR METER (B VERSIONS) On the upper part of the display, you will see the total operating time. The line visualised shows the operating hours; the number consists of five figures, plus one figure after the point “.” to show the tenth of an hour.

  • Page 16: Filling The Solution Tank

    PREPARATION OF MACHINE 16. FILLING THE SOLUTION TANK The solution tank can be filled in two different ways: 1. with a rubber tube, or buckets of water, using the filling nozzle (1) on the front part of the solution tank 2.

  • Page 17: Regulating The Detergent

    PREPARATION OF MACHINE 18. REGULATING THE DETERGENT To regulate the flow of detergent solution, push the tap rod lever (1) on the rear left side of the solution tank (push the lever to increase the flow of solution onto the brush); when you press the dead man's levers, the brush is enabled and the machine begins to move.

  • Page 18: Adjusting The Squeegee Support Height

    PREPARATION OF MACHINE 21. ADJUSTING THE SQUEEGEE SUPPORT HEIGHT The height of the squeegee must be adjusted on the basis of the state of wear and tear of the rubber blades. Carry out the following operations for adjustment: 1. Unscrew the locking nut 2.

  • Page 19: Work

    WORK 23. PREPARING TO WORK 1. Make sure the dirty water recovery tank is empty; if necessary, empty it completely 2. Check that the main switch of the machine is set to “OFF” 3. Check the brush is correctly inserted 4.

  • Page 20: At The End Of The Work

    AT THE END OF THE WORK At the end of the work, and before carrying out any type of maintenance, perform the following operations: Turn off the detergent solution tap (1) on the rear part of the machine Lift the squeegee by inserting the squeegee cable tie-rod (2) in its seat on the back of the machine Deactivate the suction motor via the relevant switch (3) on the command panel in the rear part of the machine...

  • Page 21: Daily Maintenance

    DAILY MAINTENANCE PERFORM ALL MAINTENANCE OPERATIONS IN SEQUENCE 26. CLEANING THE DIRTY WATER RECOVERY TANK Disconnect the tube (1) from its seat, unscrew the drainage cap, and empty the dirty water recovery tank Remove the cover from the dirty water recovery tank (2) Clean and rinse the recovery tank and the suction pipe (connecting pipe between the squeegee and the tank).

  • Page 22: Cleaning The Squeegee

    DAILY MAINTENANCE 28. CLEANING THE SQUEEGEE The careful cleaning of the whole vacuum unit ensures better drying and cleaning of the floor as well as a longer suction motor life. Proceed as follows for cleaning: 1. Check that the main switch of the machine is set to “OFF” 2.

  • Page 23: Cleaning The Solution Filter

    DAILY MAINTENANCE 30. CLEANING THE SOLUTION FILTER 1. Make sure the dirty water recovery tank is empty; if necessary, empty it completely 2. Check that the main switch of the machine is set to “OFF” 3. Disconnect the battery connector cable from the machine connector cable (battery-operated versions) 4.

  • Page 24: Weekly Maintenance

    WEEKLY MAINTENANCE 33. CLEANING THE VACUUM HOSE Whenever vacuum seems to be unsatisfactory, check that the vacuum hose is not obstructed. If necessary clean with a jet of water as follows: 1. Deactivate the main switch (1) by turning it to “OFF” 2.

  • Page 25: Extraordinary Maintenance

    EXTRAORDINARY MAINTENANCE 34. REPLACING THE FRONT SQUEEGEE RUBBER Vacuum will be poor and the machine will not dry perfectly if the front squeegee rubber is worn. Proceed as follows to replace it: Deactivate the main switch by turning it to “OFF” Remove the squeegee from its support arm by unscrewing the handwheel Turn the wing nuts (1) to the horizontal position Remove the front rubber-pressing blades (2)

  • Page 26: Troubleshooting

    The machine is fitted with a thermal trip unit with manual reset, located in the rear part of the machine near the main switch. The brush motor is reset by pressing the thermal trip unit button. If the machine stops repeatedly in a short space of time, you must contact the FIMAP technical assistance centre.
  • Page 27 DISPOSAL Proceed with scrapping the machine in accordance with the waste disposal regulations in force in the country in which the machine is being used.
  • Page 28 TABLE FOR CHOOSING THE BRUSHES Machine Code Type of bristles   Br. Length Notes No. Br. Bristles 404653 BRUSH 404654 BRUSH My50 B-E 405631 BRUSH 405632 ABRASIVE BRUSH 405527 PAD HOLDER...
  • Page 29 Via Invalidi del Lavoro, 1 37059 Santa Maria di Zevio (VR) declares under its sole responsibility that the products FLOOR SCRUBBING MACHINE mod. My50 2014 B CB comply with the provisions of Directives: 2006/42/EC: Machinery Directive. 2014/35/EC: Low Voltage Directive.
  • Page 30 FIMAP S.p.A. Via Invalidi del Lavoro, 1 37059 Santa Maria di Zevio (VR) declares under its sole responsibility that the products FLOOR SCRUBBING MACHINE mod. My50 2014 B comply with the provisions of Directives: 2006/42/EC: Machinery Directive. 2014/30/EC: Electromagnetic compatibility directive.
  • Page 31 Via Invalidi del Lavoro, 1 37059 Santa Maria di Zevio (VR) declares under its sole responsibility that the products FLOOR SCRUBBING MACHINE mod. My50 2014 E 230V - My50 2014 E 110V comply with the provisions of Directives: 2006/42/EC: Machinery Directive.
  • Page 36 FIMAP - Via Invalidi del Lavoro, 1 - 37059 S. Maria di Zevio - Verona - Italy Tel. +39 045 6060411 - Fax +39 045 6060417 - E-mail: fimap@fimap.com www.fimap.com...
