- Page 1 USE AND MAINTENANCE MANUAL MY 16 B ED. 10-2010 Doc. 10012153 Ver.
- Page 2 The descriptions contained in this document are not binding. The company therefore reserves the right to make any modifications at any time to elements, details, or the supply of accessories, as considered necessary for reasons of improvement or manufacturing/commercial requirements. The reproduction, even partial, of the text and drawings contained in this document is prohibited by law.
-
Page 3: Table Of Contents
CONTENTS ON DELIVERY OF THE MACHINE ..................................4 SERIAL NUMBER PLATE ....................................4 INTRODUCTION ......................................4 INTENDED USE ......................................4 TECHNICAL DESCRIPTION .................................... 5 SYMBOLS USED ON THE MACHINE ................................6 GENERAL SAFETY REGULATIONS ................................. 7 MACHINE PREPARATION....................................8 HANDLING THE PACKAGED MACHINE ............................8 HOW TO UNPACKAGE THE MACHINE ............................ -
Page 4: On Delivery Of The Machine

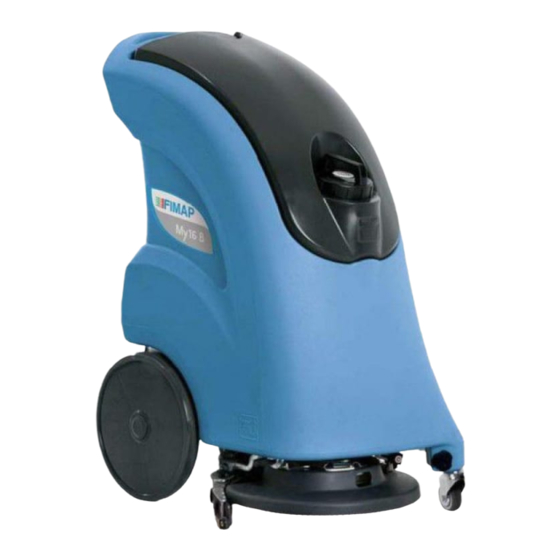

Introduction MY 16 B is a floor scrubbing machine which, by means of the mechanical action of the rotating brush and the chemical action of a water/detergent solution, can clean any type of flooring. As it advances, it also collects removed dirt and the detergent solution not absorbed by the floor. -
Page 5: Technical Description
TECHNICAL DESCRIPTION My 16 B Rated power Working width Width of rear squeegee Work capacity 1215 Water consumption ∅ mm Brushes (diameter or length) Brush rotations Pressure on the brushes Brush motor V / W 12 / 250 Type of advance semi-aut. -
Page 6: Symbols Used On The Machine
SYMBOLS USED ON THE MACHINE Tap symbol Used to indicate the solenoid valve switch Brush symbol Used to indicate the brush motor switch Symbol denoting suction motor Used to indicate the suction motor switch Battery symbol Battery charge level indicator Indicates the maximum temperature of the detergent solution Located near the solution tank inlet Indicates the danger of crushing hands... -
Page 7: General Safety Regulations
• When your FIMAP machine has reached the end of its long working life, dispose of the materials it contains (especially oils and electronic components) in an appropriate manner, while taking into account that the machine itself was constructed by using 100% recyclable materials. -
Page 8: Machine Preparation
MACHINE PREPARATION 1. HANDLING THE PACKAGED MACHINE The machine is contained in specific packaging. Every pallet consists of two machines arranged side by side. It is not possible to place more than two packages on top of each other. The total weight is kg 72 The overall dimensions of the package are: A : 102.5 mm B : 85.5 mm... -
Page 9: Type Of Battery
MACHINE PREPARATION 4. TYPE OF BATTERY To power the machine you must use: The maximum dimensions of each battery are: • width 168 mm • length 259 mm • height 207 mm OTHER TYPES MUST NOT BE USED. Enbloc batteries must be used with voltage of 12V 60Amp/h AGM or Gel Ah 5. -
Page 10: Connecting The Connector
MACHINE PREPARATION CONNECTING THE CONNECTOR Connect the battery connector to the machine connector located above the battery compartment. WARNING: this process must be carried out by qualified personnel. The incorrect or imperfect connection of the cables to the connector can seriously harm people and damage objects. -
Page 11: Charging The Battery (Without Built-In Battery Charger)
MACHINE PREPARATION WARNING: The machine is equipped with an automatic system that disconnects the power supply from the electrical system while the batteries are being recharged WARNING: In order not to cause permanent damage to the batteries it is essential to avoid their complete discharge: arrange the recharge within a few minutes of the switching on of the flashing "discharged batteries"... -
Page 12: Battery Indicator
MACHINE PREPARATION BATTERY INDICATOR The battery indicator is digital, with 4 fixed positions and a flashing one. The numbers that appear on the display show the approximate charge level. 4 = maximum charge, 3 = 3/4 charge, 2 = 2/4 charge, 1 = 1/4 charge, 0 = batteries run down (flashing) WARNING: A few seconds after the appearance of the flashing “0”, the brush motor switches off automatically. -
Page 13: Lid
MACHINE PREPARATION 2. Solution water filler cap 3. Solution tank filter cap Verify that the lid is correctly inserted beneath the protruding command panel. WARNING: risk of crushed hands SOLUTION TANK Verify that the solution-water filler cap is tightened properly. Verify that the cap is screwed on correctly in its housing (B). -
Page 14: Detergent Solution Adjustment
MACHINE PREPARATION The solution tank has a maximum capacity of about 20 litres. Add the liquid detergent to the tank in the concentration and manner indicated on the detergent manufacturer's label. The formation of excess foam could damage the suction motor, so use only the minimum amount of detergent necessary. WARNING: Always use detergents whose manufacturer's label indicates their suitability for scrubbing machines. -
Page 15: Work
WORK 1. PREPARING TO WORK 1. Connect the electrical system connector (2) to the battery connector (1) ATTENTION: before using the machine, the operators must be suitable trained. We therefore suggest you read this instruction booklet carefully and read it again whenever difficulties arise while using the machine 2. -
Page 16: Overflow Device
WORK 2. OVERFLOW DEVICE The machine is fitted with a ball filter which intervenes when the recovery tank is full, causing the suction tube to close. In this case, you must switch off the machine and empty the recovery tank. WARNING: this operation must be carried out by wearing gloves in order to protect against contact with dangerous solutions. -
Page 17: At The End Of The Work
AT THE END OF THE WORK At the end of the work, and before carrying out any type of maintenance, perform the following operations: 1. Turn off the solenoid valve switch (3) 2. Turn off the suction switch (2) 3. Turn off the brush / main switch (1) 4. -
Page 18: Daily Maintenance
DAILY MAINTENANCE PERFORM ALL MAINTENANCE OPERATIONS IN SEQUENCE 1. CLEANING THE RECOVERY TANK 1. Grasp the tube on the rear of the machine. 2. Remove the drainage cap and empty the tank. WARNING: Before carrying out any type of maintenance, disconnect the machine's battery connector. -
Page 19: Disassembling The Brush
DAILY MAINTENANCE 1. DISASSEMBLING THE BRUSH 1. Lower the rear lever. 2. Pressing with your foot, raise the base. 3. With the base in the raised position, push the brush control switch with pulses. The brush will be released automatically. 4. -
Page 20: Weekly Maintenance
WEEKLY MAINTENANCE 1. CLEANING THE SQUEEGEE TUBE Periodically, or whenever suction seems to be unsatisfactory, check the squeegee tube is not obstructed. To clean it, proceed as follows: 1. remove the tube from the sleeve on the squeegee 2. remove the other end from the recovery tank 3. -
Page 21: Cleaning The Solution Tank And Filter
WEEKLY MAINTENANCE 3. CLEANING THE SOLUTION TANK AND FILTER 1. Loosen the solution tank cap. 2. Remove the filter and clean it. 3. Rinse the solution tank with a jet of water. 4. Re-assemble the filter and cap. WARNING: this operation must be carried out by wearing gloves in order to protect against contact with dangerous solutions. -
Page 22: Troubleshooting
To restore the power supply to the motor, switch off the machine and wait for a few minutes. If the protection devices intervene again, contact the FIMAP technical assistance centre. 2. INSUFFICIENT WATER ON THE BRUSHES 1. -
Page 23: Choosing And Using The Brushes
It is fitted with a number of bunches of bristles that allow the abrasive floor pad to be held and dragged while working TABLE FOR CHOOSING THE BRUSHES ∅ ∅ ∅ ∅ Bristles ∅ ∅ ∅ ∅ Brush Machine No. of brushes Code Type of bristles Notes 429372 My 16 B 428782 429371 Pad holder... -
Page 24: Machine Disposal
MACHINE DISPOSAL To dispose of the machine, take it to a demolition centre or an authorised collection centre. Before scrapping the machine, it is necessary to remove and separate the following materials and then send them to the appropriate collection centres, in accordance with currently effective environmental hygiene regulations. -
Page 25: Ec Declaration Of Conformity
The technical documentation is kept by Mr. Giancarlo Ruffo, via Cà Nova Zampieri, n.5 – 37057 San Giovanni Lupatoto (VR) - Italy Santa Maria di Zevio, 01/07/2010 FIMAP S.p.A. Legal representative Giancarlo Ruffo FIMAP spa Via Invalidi del Lavoro, 1 - 37050 S.Maria di Zevio (Verona) Italy Tel. +39 045 6060411 r.a. - Fax +39 045 6060417 - E-mail:fimap@fimap.com - www.fimap.com...
