Summary of Contents for Fimap BMg

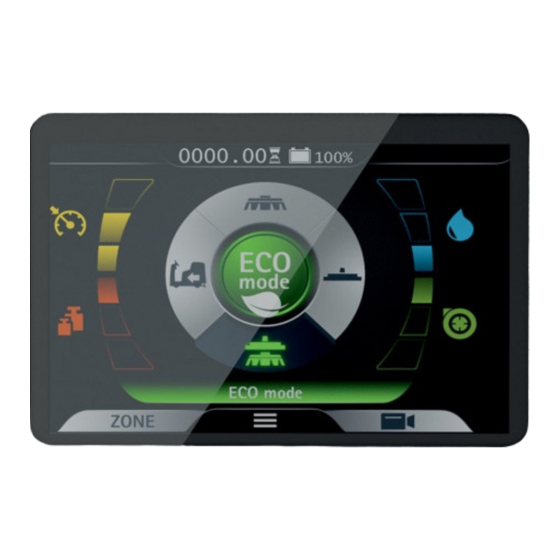

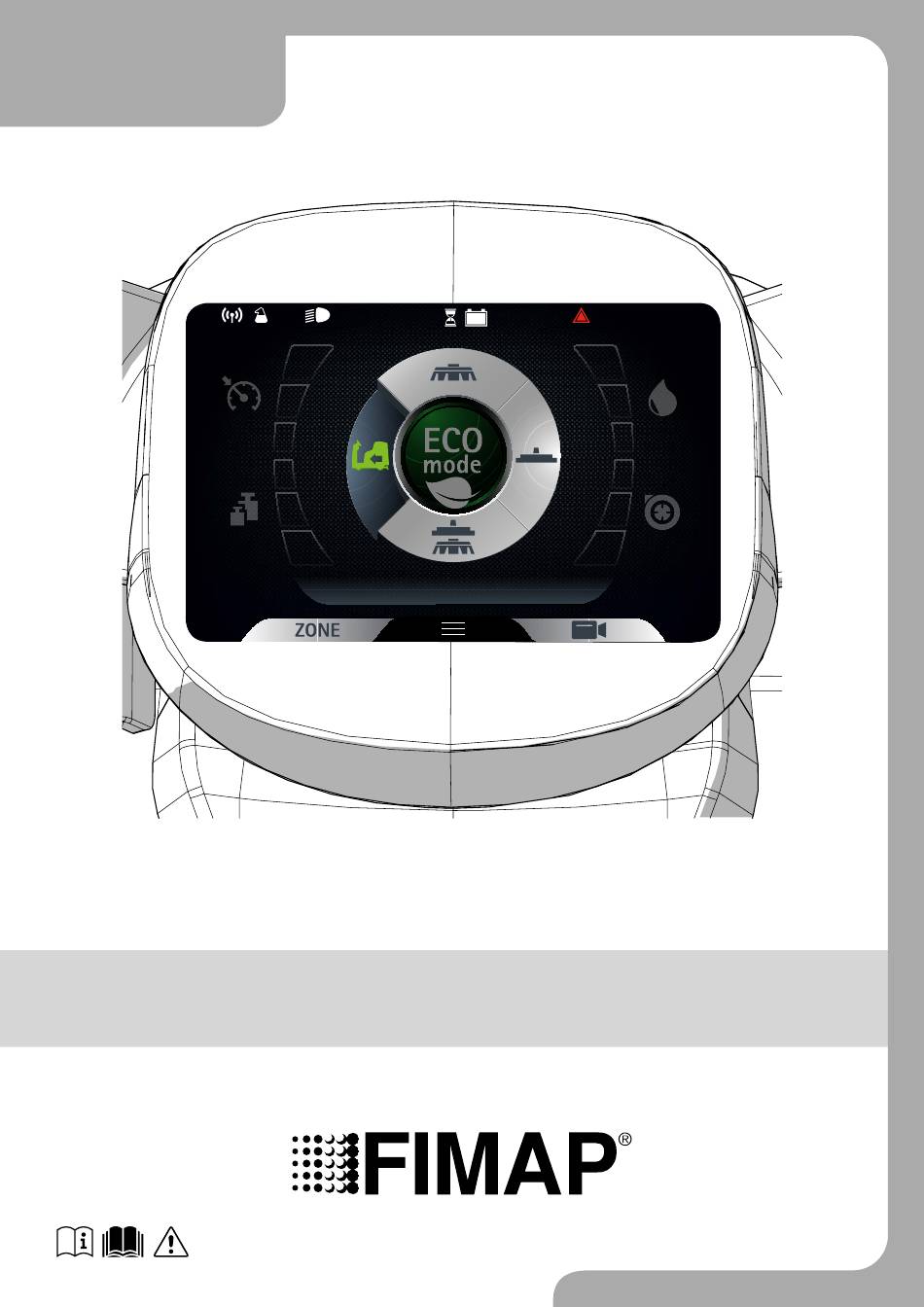

- Page 1 BMg - MMg Magna 0000.00 100% DRIVE PROFESSIONAL SCRUBBING MACHINES GUIDE TO CONFIGURING THE USER INTERFACE ORIGINAL INSTRUCTION DOC. 10085626 - Ver. AB - 04-2019...
-
Page 3: Table Of Contents
CONTENTS CONTENTS ................................3 SYMBOLS USED IN THE MANUAL ........................4 PURPOSE AND CONTENT OF THE MANUAL ....................... 4 TARGET GROUP ..............................4 STORING THE USE AND MAINTENANCE MANUAL ..................... 4 GENERAL SETUP: LANGUAGE ..........................5 CHANGING THE DISPLAY LANGUAGE ....................... 5 GENERAL SETUP: HOUR METER .......................... -
Page 4: Symbols Used In The Manual
The descriptions contained in this document are not binding. The company therefore reserves the right to make any modifications at any time to elements, details, or accessory supply, as considered necessary for reasons of improvement or manufacturing/commercial requirements. The reproduction, even partial, of the text and drawings contained in this document is prohibited by law. The company reserves the right to make any technical and/or supply modifications. -
Page 5: General Setup: Language
From the work screen, by pressing the "SETTING" button on the operator menu screen, the following screens can be displayed: • Language • Hour meter • Zone programming • Parameters • Monitor • Alarms N.B.: pressing the "EXIT" key returns you to the previous menu screen. To access the "Main Menu"... -
Page 6: General Setup: Zone Programming
GENERAL SETUP: ZONE PROGRAMMING ACTIVATION OR DEACTIVATION OF THE WORK ZONES MODE To activate or deactivate the "PROGRAM ZONE" work mode, proceed as follows: 1. Go to the "Main Menu" screen and select the "Zone Programming" option (1), on the left-hand side of the screen. N.B.: when the button (1) is pressed, the pop-up menu for inserting the password will appear at the centre of the screen. -
Page 7: Changing The Program Zone Parameters
CHANGING THE PROGRAM ZONE PARAMETERS To change the work zone parameters, proceed as follows: 1. Go to the "Main Menu" screen and select the "Zone Programming" option (1), on the left-hand side of the screen. N.B.: when the button (1) is pressed, the pop-up menu for inserting the password will appear at the centre of the screen. 2. -
Page 8: General Setup: Alarms
GENERAL SETUP: ALARMS VIEWING THE LIST OF ALARMS To view the list of alarms that have been active on the machine, proceed as follows: 1. In the "Main Menu" screen, select the "MONITOR" (3) option, on the left-hand side of the Main Menu HourMeter screen. - Page 9 5. To return to the program zone menu, press the "BACK" key. 6. To return to the Main Menu, press the "EXIT" key. 7. To return to the work screen, press the "EXIT" key.
- Page 12 FIMAP S.p.A. - Via Invalidi del Lavoro, 1 - 37059 S. Maria di Zevio - Verona - Italy Tel. +39 045 6060411 – Fax +39 045 6060417 – E-mail:fimap@fimap.com www.fimap.com...
