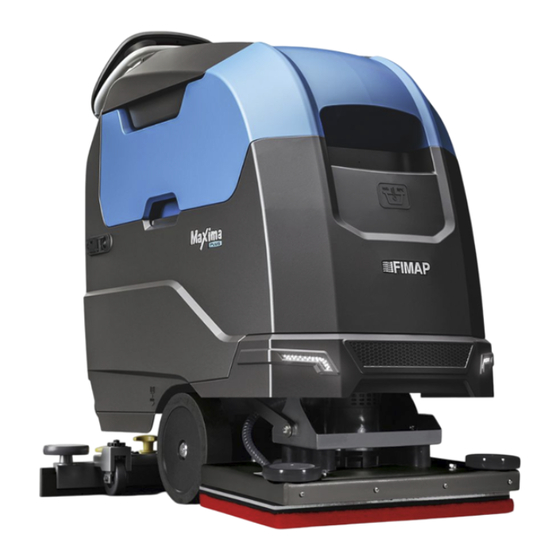

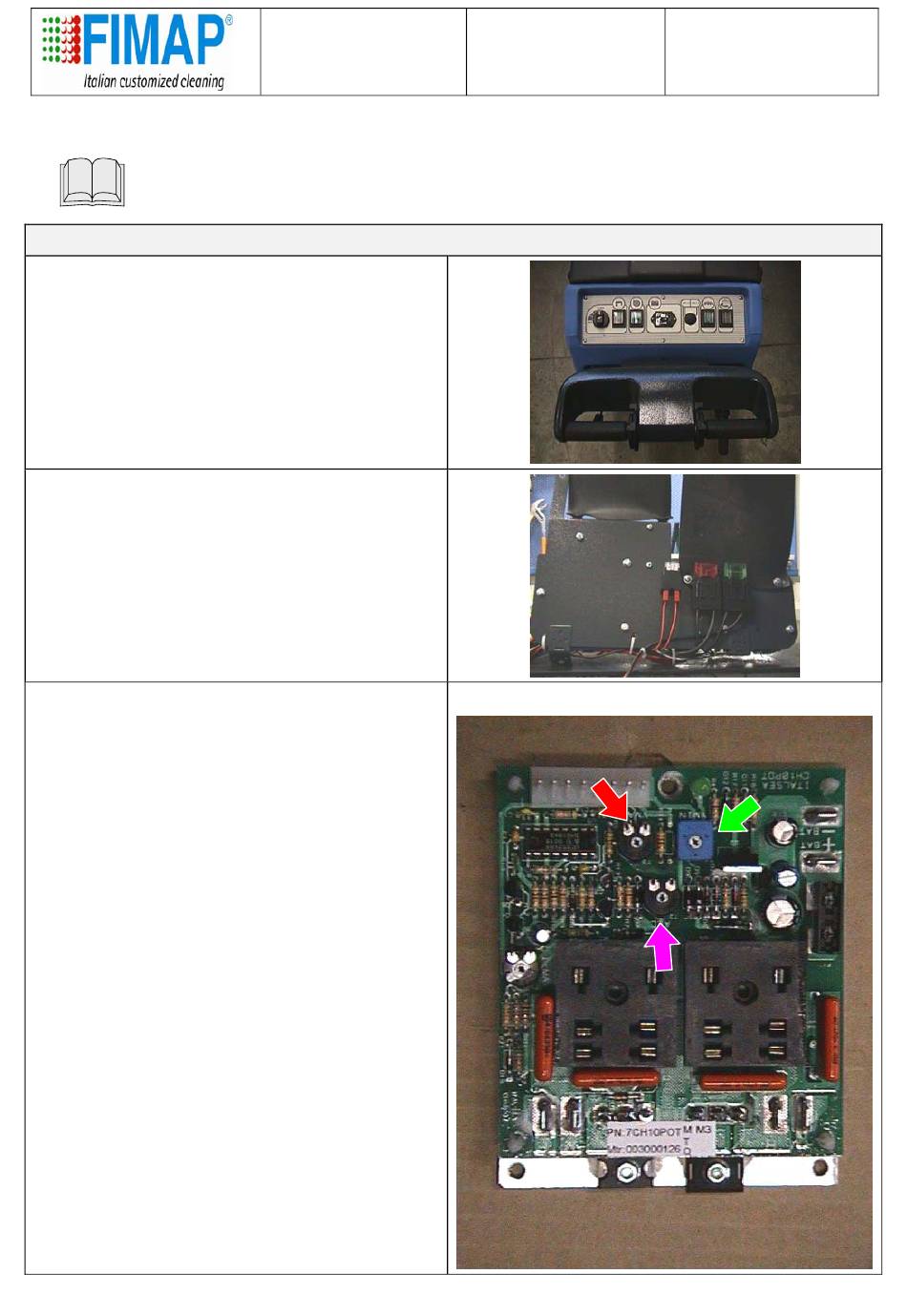

ADJUSTMENTS AND INSPECTIONS / ALL MODELS
READ THE OPERATING AND MAINTENANCE MANUAL
Inspection Electrical Equipment
1. Check
functionality
switches, motors, solenoid valve.
2. Check functionality control coupling-uncoupling
brush, where this is assembled.
3. Check the condition of the fuses placed behind
the rear grey panel
4. Check functionality chopper (traction machine)
5. If necessary set the chopper card proceeding
:
as follows
•
Lift the machine (traction wheels must be free)
•
Take off the rear screws to open the panel;
take
off
the
fixing
complete electric group
•
Insert the tester prods (V-DC) onto the faston
M+
and
M-
of the chopper card
•
Switch on through the general key
•
Adjust
trimmer "ACC"
the left screw up to the end, then position it on
45°
6. Press onto the lever placed on the handle bar in
forward movement, until the release of the
drive relay is heard, then stop.
7. Adjust the
trimmer Vmin
the value on the tester is read, which is
between 3-5 V.
ADJUSTMENTS
AND
INSPECTIONS
electrical
equipment:
screw
and
lower the
(acceleration) rotating
(minimum) until
Doc.
Emesso dec -06
MAXIMA
Rev.
Pag.
10004809
00
1 di 7
Advertisement
Table of Contents
Related Manuals for Fimap MAXIMA
Summary of Contents for Fimap MAXIMA
- Page 1 Doc. 10004809 ADJUSTMENTS Emesso dec -06 MAXIMA Rev. INSPECTIONS Pag. 1 di 7 ADJUSTMENTS AND INSPECTIONS / ALL MODELS READ THE OPERATING AND MAINTENANCE MANUAL Inspection Electrical Equipment 1. Check functionality electrical equipment: switches, motors, solenoid valve. 2. Check functionality control coupling-uncoupling brush, where this is assembled.
- Page 2 Doc. 10004809 ADJUSTMENTS Emesso dec -06 MAXIMA Rev. INSPECTIONS Pag. 2 di 7 8. Push the lever on the handle bar completely forward, read on the tester the tension value: this should be equal to the battery tension, otherwise upon...
- Page 3 Doc. 10004809 ADJUSTMENTS Emesso dec -06 MAXIMA Rev. INSPECTIONS Pag. 3 di 7 Adjustment brush – SINGLE BRUSH 450-500 B-BT / MOVEMENT SEMI-AUTOMATIC B 1. Adjust the spring belt tightener at a length of 27mm (1,06 inches) in compression 2. The...
- Page 4 Doc. 10004809 ADJUSTMENTS Emesso dec -06 MAXIMA Rev. INSPECTIONS Pag. 4 di 7 • Adjust the cup head screw brush rest until the head just touches the even part of the brush on which it rests. The allowance between the head of the screw and the brush must be at most 1mm-2mm, when the brush is coupled and lowered 5.
- Page 5 Doc. 10004809 ADJUSTMENTS Emesso dec -06 MAXIMA Rev. INSPECTIONS Pag. 5 di 7 3. The dimension of the spring belt tightener should be always of 27mm in compression. The models equipped with automatic traction, that means BT, carry out the same operation what the brushes inclination concerns.
- Page 6 Doc. 10004809 ADJUSTMENTS Emesso dec -06 MAXIMA Rev. INSPECTIONS Pag. 6 di 7 To help the disassembly of the cylindrical brushes, unscrew the screw until the lever is at the first hole of the pressure adjustment. Adjustment brushes base 1. Assemble the joint chain of transmission so that a distance of 2 mm.
- Page 7 Doc. 10004809 ADJUSTMENTS Emesso dec -06 MAXIMA Rev. INSPECTIONS Pag. 7 di 7 2. Adjust the height of the wheels with the suitable hand wheels checking that the rubber has an inclination of around 30°-45° and that it is not too much pressed down onto the floor nor too much lifted.
