1
5
6
2
10
27
21
36
35

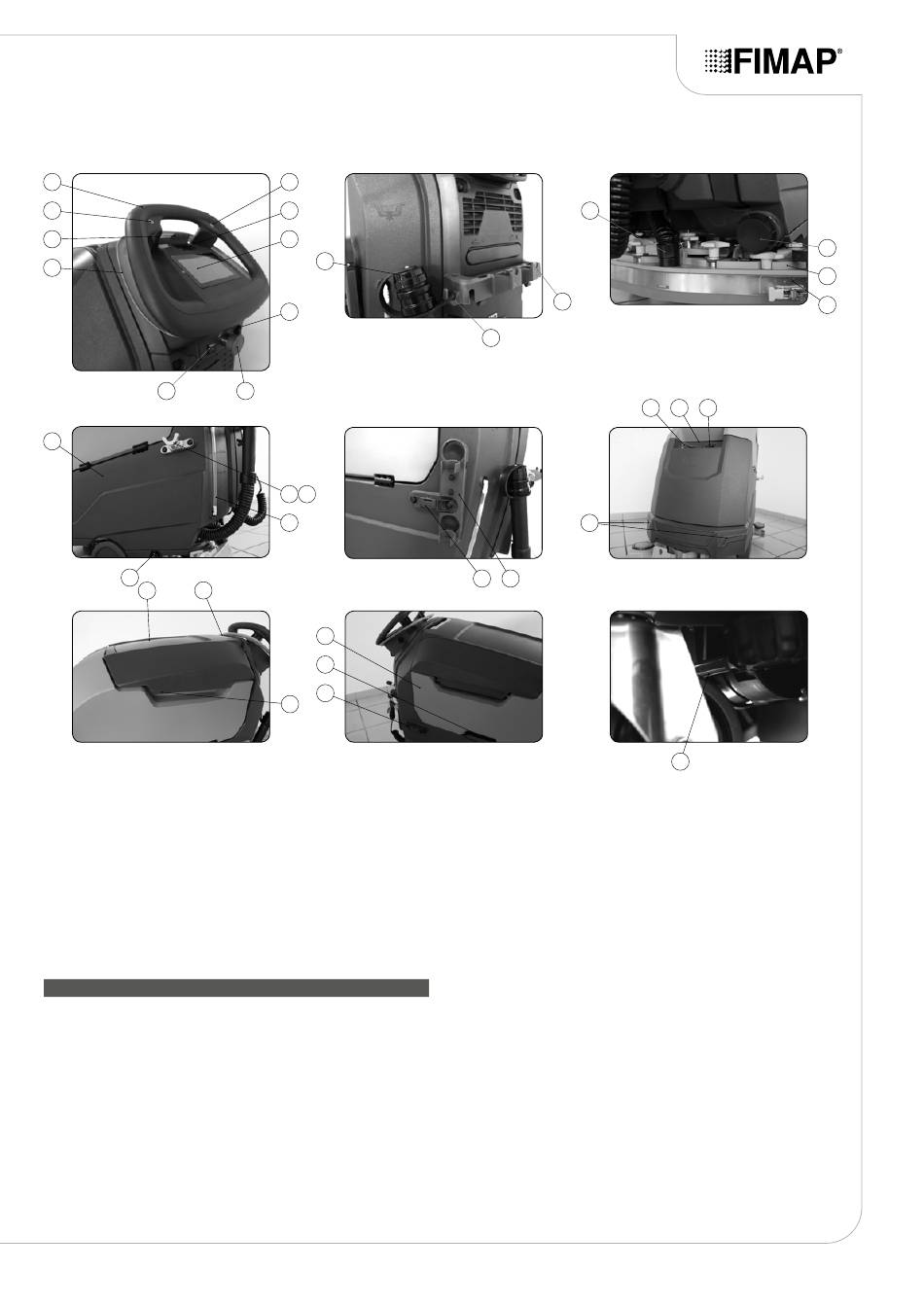

MAIN MACHINE COMPONENTS
The main machine components are the following:
1.
Control handlebars.
2.
Dead man's lever.
3.
Reverse control button.
4.
Power function control button.
5.
Control display.
6.
Cover for FFM "FIMAP FLEET MANAGEMENT" SOS button (Optional).
7.
FFM "FIMAP FLEET MANAGEMENT" SOS button (Optional).
8.
Main key switch.
9.
Emergency button.
10.
Spray gun control switch (optional).
11.
Vacuum wand control switch (optional).
12.
Support hook for recovery tank drainage tube.
13.
Recovery tank drainage tube.
14.
Support hook for spray gun.
15.
Solution tank level indicator.
16.
Built-in battery charger.
17.
Solution tank drainage cap.
18.
Squeegee body.
4
7
5
13
11
9
23
24
15
31
32
23
34
20
14
12
25
23
22
19.
Squeegee body support.
20.
Squeegee vacuum tube.
21.
Water flow adjustment tap.
22.
Vacuum accessory support.
23.
Brush support.
24.
Squeegee body support.
25.
Headlights.
26.
Brush head body.
27.
Solution tank.
28.
Solution tank filler cap/measuring inlet.
29.
Solution tank filler tube cap.
30.
Cover cap for FFF "FIMAP FAST FILL" quick coupling kit (optional).
31.
Recovery tank.
32.
Recovery tank lifting handle.
33.
Machine serial number plate.
34.
Recovery tank cover lifting handle.
35.
Control handle for accessory compartment door.
36.
Accessory compartment door.
37.
Detergent solution filter.
38.
Electric brake control lever.
3
29
30
28
38
17
19
18
