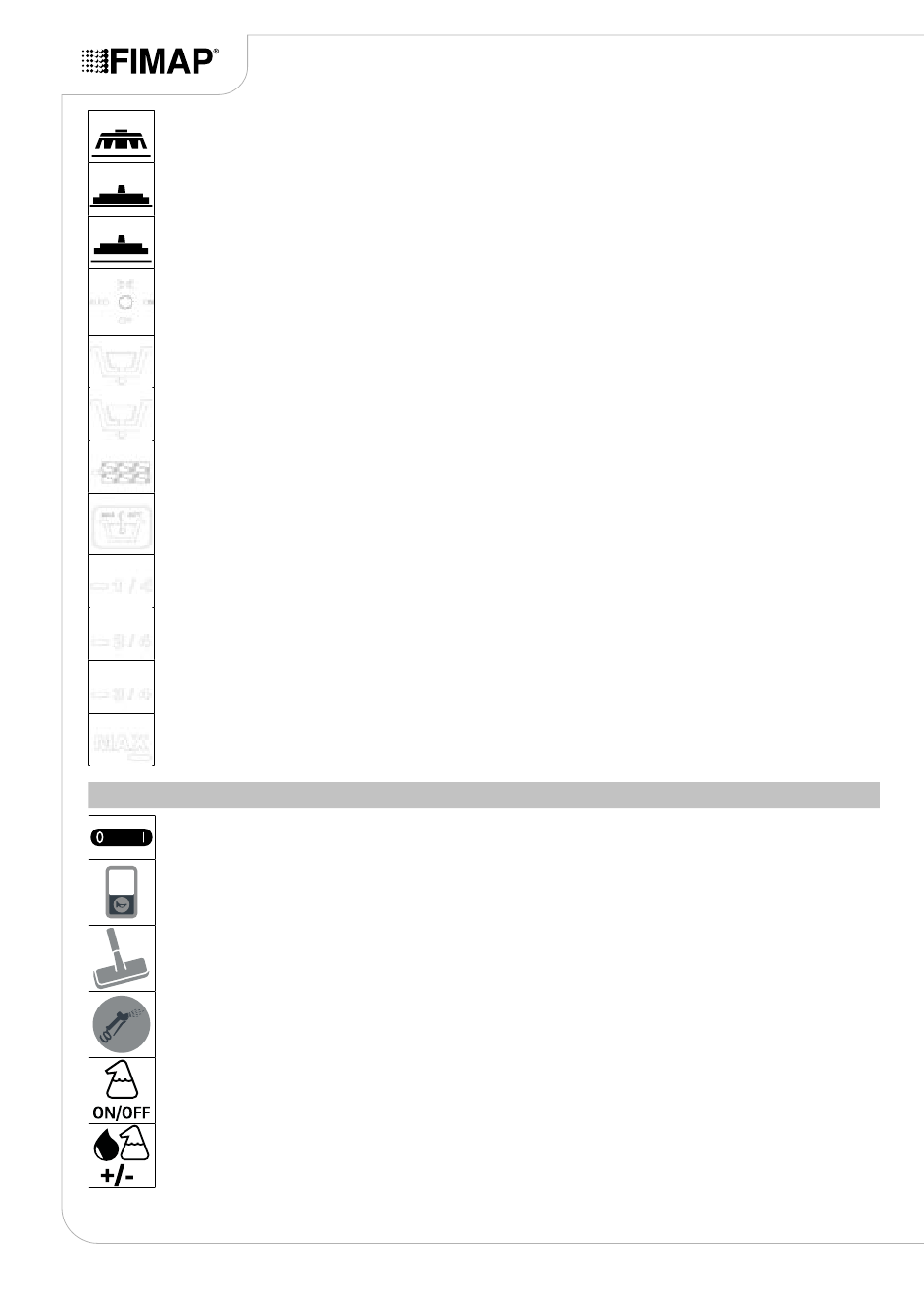

Brush head body standby position symbol:
Applied to the steering column to indicate the brush head control lever direction of rotation for bringing the brushes to their standby
position.
Squeegee body working position symbol:
Applied to the steering column to indicate the squeegee control lever direction of rotation for bringing the squeegee to its working
position.
Squeegee body standby position symbol:
Applied to the steering column to indicate the squeegee control lever direction of rotation for bringing the squeegee to its standby
position.
Symbol for activation/deactivation of the blinking lights:
Applied to the front of the machine, to indicate the blinking lights switch.
Recovery tank drainage hose symbol:
Applied to the back of the machine to identify the recovery tank's drainage hose.
Solution tank drainage cap symbol:
Applied to the back of the machine to identify the solution tank's drainage cap.
Battery connection symbol:
Applied beneath the recovery tank to indicate how to connect the 6V or 18V batteries in order to obtain a total voltage of 36V.
Symbol for maximum temperature for filling the solution tank:
Applied to the left-hand side of the machine's solution tank to indicate the maximum temperature of the water that can be used to
safely fill the solution tank.
Solution tank filling symbol:
Located on the left side of the machine's solution tank to indicate the amount of water or detergent solution in the tank. The symbol
on the side indicates that the tank is full to about a quarter of its capacity.
Solution tank filling symbol:
Located on the left side of the machine's solution tank to indicate the amount of water or detergent solution in the tank. The symbol
on the side indicates that the tank is full to about a half of its capacity.
Solution tank filling symbol:
Located on the left side of the machine's solution tank to indicate the amount of water or detergent solution in the tank. The symbol
on the side indicates that the tank is full to about three-quarters of its capacity.
Solution tank filling symbol:
Located on the left side of the machine's solution tank to indicate the amount of water or detergent solution in the tank. The symbol
on the side indicates that the tank is full.

LABELS USED ON THE MACHINE

Main switch symbol:
Applied to the control panel, positioned on the front of the machine, to indicate the main switch.
Acoustic signalling device control label:
Applied in the vicinity of the steering column to indicate the acoustic signalling device's control button.
Vacuum wand control label (optional):
Applied near the steering column to indicate the control button for the optional vacuum wand kit.
Spray gun control label (optional):
Applied near the steering column to indicate the control button for the optional spray gun kit.
Label for the automatic detergent dosing system (optional):
Applied near the steering column to indicate the button for activating or switching off the optional detergent dosing system.
Label for adjusting the automatic detergent dosing system (optional):
Applied near the steering column to indicate the button for adjusting the automatic detergent dosing system.
