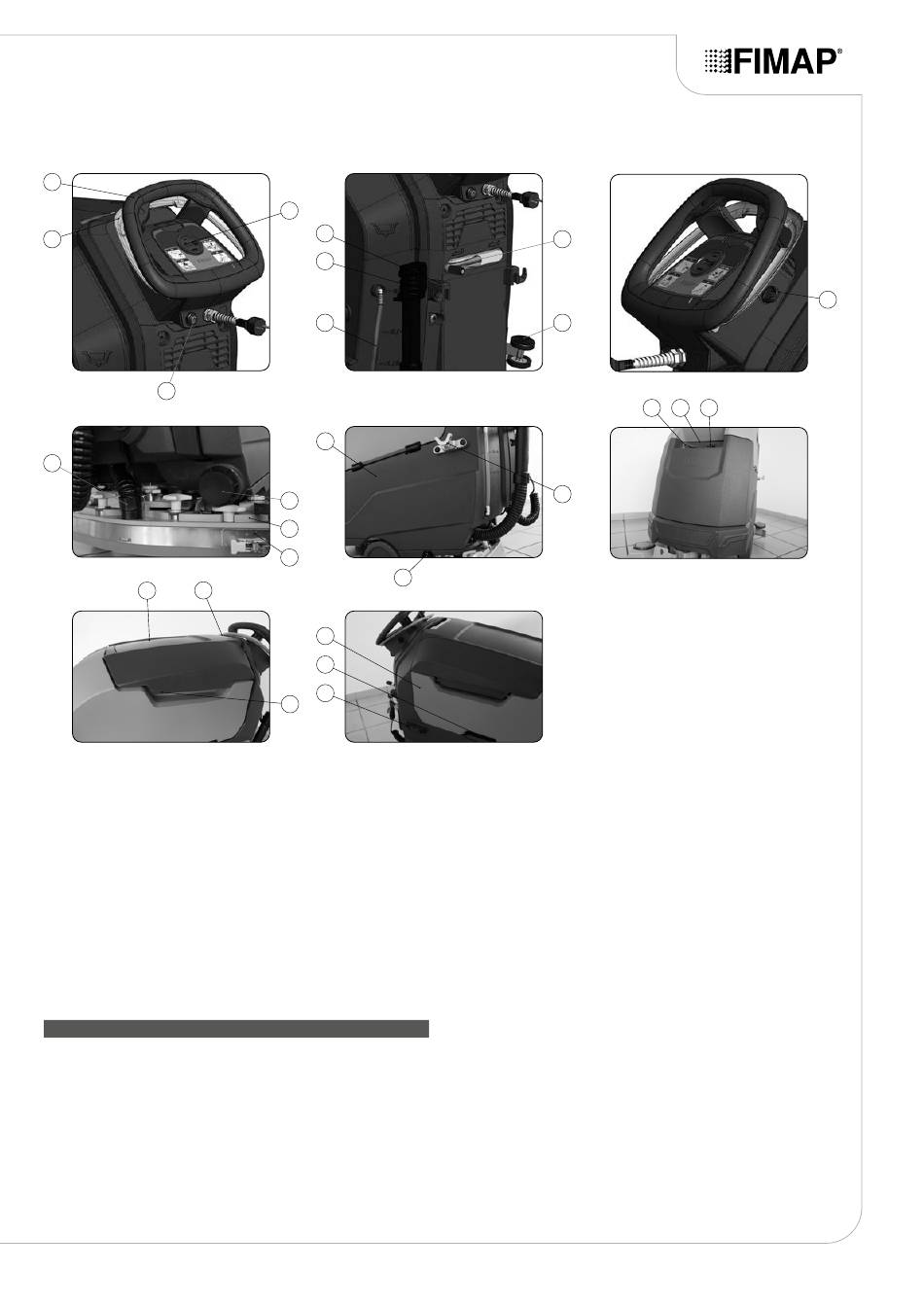

MAIN MACHINE COMPONENTS

The main machine components are the following:
1. Control handlebars.
2. Dead man's lever.
3. Control display.
4. Main key switch.
5. Emergency button.
6. Main switch.
7. Squeegee body control lever.
8. Brush head control pedal.
9. Support hook for recovery tank drainage tube.
10. Power supply cable support hook.
11. Recovery tank drainage tube.
12. Solution tank level indicator.
13. Solution tank drainage cap.
14. Squeegee body.
3
8
10
11
19
12
14
13
16
23
24
17
25
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
3
6
7
21
17
Squeegee body support.
Vacuum tube.
Water flow adjustment tap.
Brush support.
Brush head body.
Solution tank.
Solution tank filler cap/measuring inlet.
Solution tank filler tube cap.
Cover cap for FFF "FIMAP FAST FILL" quick coupling kit (optional).
Recovery tank.
Recovery tank lifting handle.
Recovery tank cover lifting handle.
Control handle for accessory compartment door.
Accessory compartment door.
Detergent solution filter.
5
22 20
