SMART OPS PC module (optional)

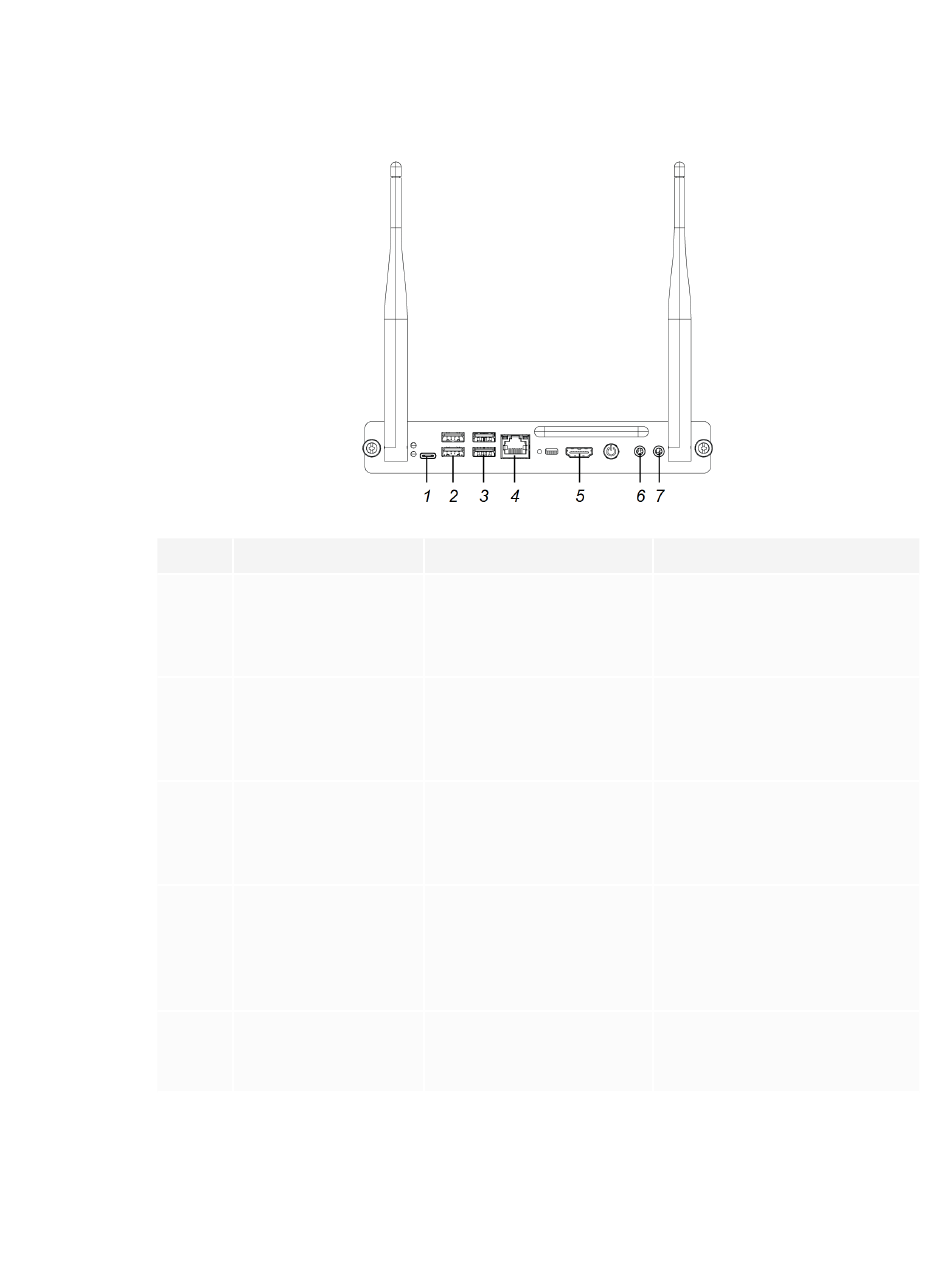

The following diagram and table present the connectors on the optional SMART OPS PC module:
No. Connector
1 USB Type-C
2 USB 2.0 Type-A (×2)
3 USB 3.0 Type-A (×2)
4 RJ45
5 HDMI out
40 smarttech.com/kb/171538
Connects to
Supported USB drives,
peripherals, and other
devices
Supported USB drives,
peripherals, and other
devices
Supported USB drives,
peripherals, and other
devices
[N/A]
External display
Notes
See Connecting USB drives,
peripherals, and other devices
on page 33 and USB cables and
connectors.
See Connecting USB drives,
peripherals, and other devices
on page 33 and USB cables and
connectors.
See Connecting USB drives,
peripherals, and other devices
on page 33 and USB cables and
connectors.
The OPS PC module uses the
display's network connection (if
available), so you typically don't
need to connect the OPS PC
module directly to a network.
See Connecting an external
display on page 34 and
cables and connectors.
HDMI
