CHAPTER 3
CONNECTING COMPUTERS AND OTHER DEVICES

Connector diagrams

Connector panel

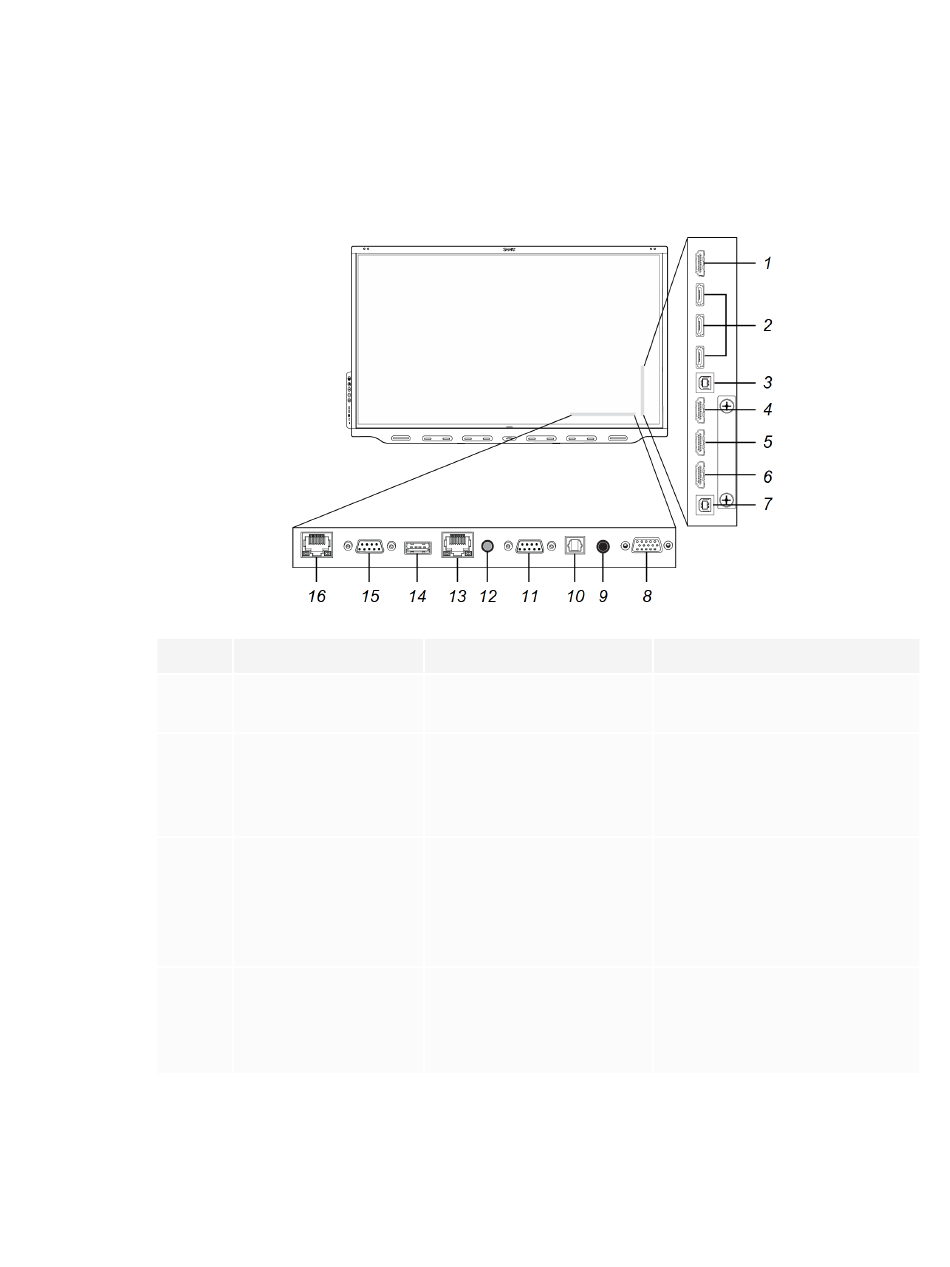

The following diagram and table present the connectors on the display's connector panel:
No. Connector
1 HDMI 2.0 out
2 USB 3.0 Type-A (×3)
3 USB Type-B
4 HDMI 2.0 in
37 smarttech.com/kb/171538
Connects to
External display
Supported USB drives,
peripherals, and other
devices
Touch 1 input
HDMI 1 input
(video and audio)
Notes
See page 34 and HDMI cables
and connectors.
See Connecting USB drives,
peripherals, and other devices
on page 33 and USB cables and
connectors.
Use this touch input with the
HDMI 1 or HDMI 2 video and
audio inputs.
See page 25 and USB cables
and connectors.
Use this video and audio input
with the Touch 1 input.
See page 25 and HDMI cables
and connectors.
