Under-Desk Mounting - Extron electronics VSW 2VGA A User Manual

im Vertrieb von
Installation and Operation, cont'd
4.

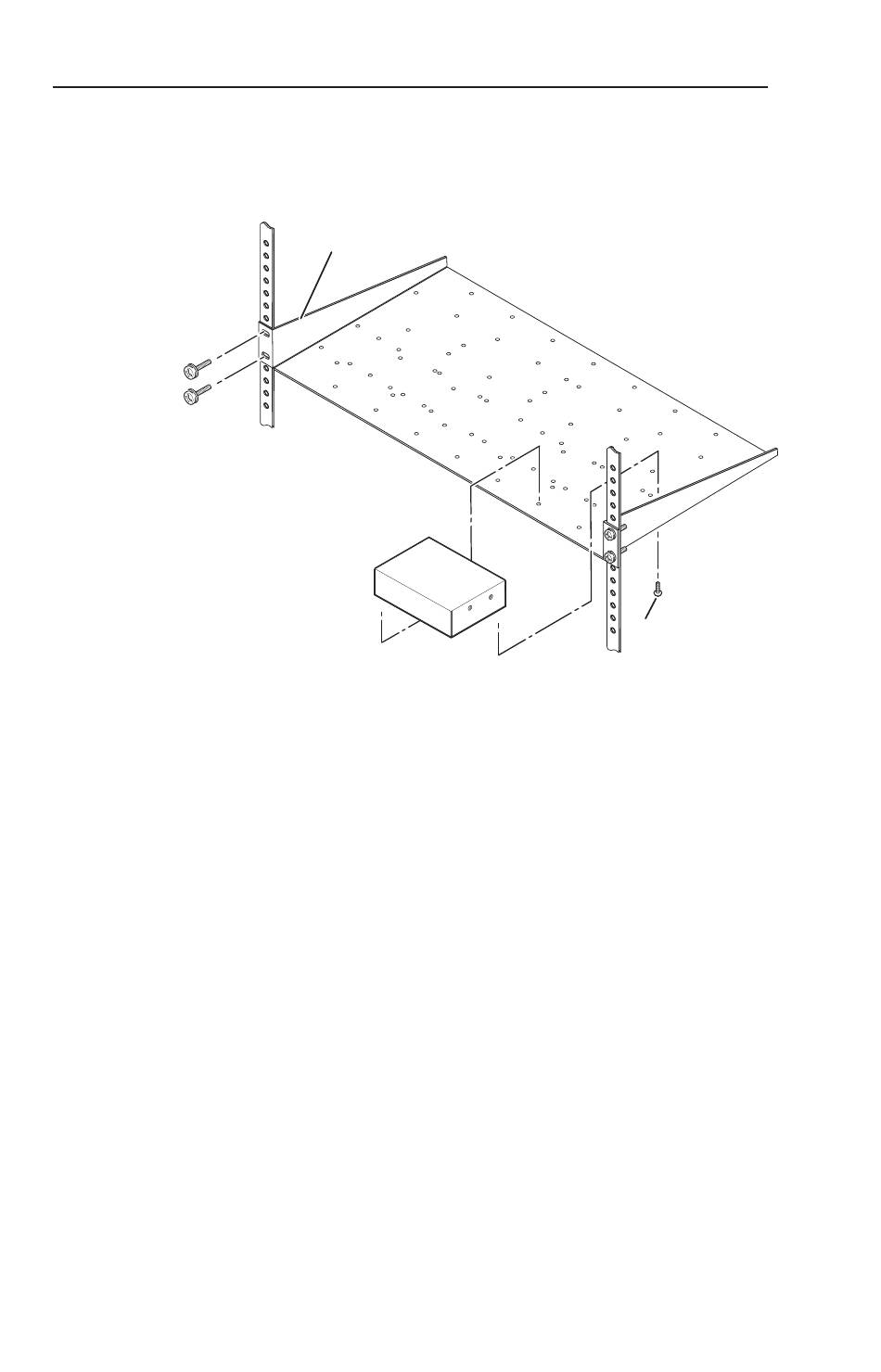

Figure 2-2 — Mounting the VSW 2VGA A on a
standard 1U rack shelf

Under-desk mounting

1.
www.camboard.de
VSW 2VGA A • Installation and Operation
2-4
CAMBOARD Electronics
1inchBoxQuarterSizeStandardShelf
Attach the rack shelf to the rack using four 10-32 x ¾" bolts
(provided). Insert the bolts through #10 beveled washers,
then through the holes in the rack ears and rack, as shown
in figure 2-2.
1U Universal Rack Shelf
Use 2 mounting holes on
opposite corners.
Attach the under-desk mounting brackets (part
#70-077-01) to the VSW 2VGA A with the four provided
machine screws, as shown in figure 2-3.
Tel. 07131 911201
Fax 07131 911203
ce-info@camboard.de
(2) 4-40 x 3/16"
Screws
