Installation and Operation, cont'd

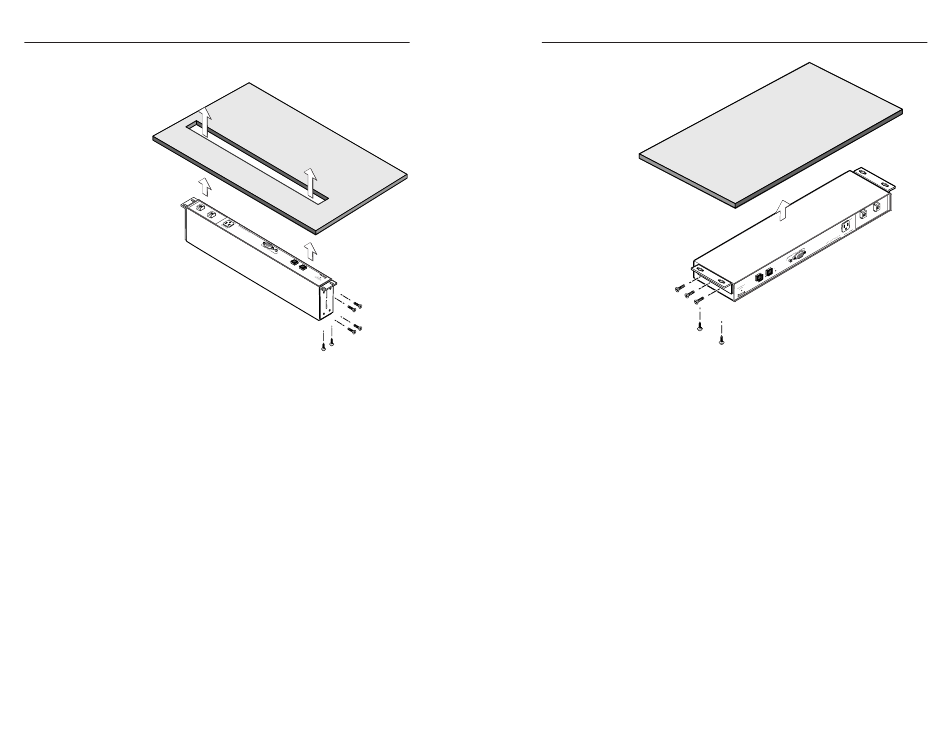

Through-desk mounting
To adjust the height of the switcher within the desk,
slightly loosen the screws that attach the brackets to the
switcher, adjust the height by sliding the switcher up or
down, and retighten the screws.

Under-desk mounting

1. Attach the under-desk mounting brackets to the
SW2 VGA DA2 AF R with the six provided machine
screws, as shown in the under-desk mounting diagram.
2. Hold the switcher with attached brackets against the
mounting surface. Use a soft pencil to mark the location of
holes for screws on the desk or other furniture.
3. Drill 1/4" (6.4 mm) deep, 3/32" (2.38 mm) diameter pilot
holes in the table or desk at the marked screw locations
from the underside/inside (concealed side) of the
furniture, where the switcher will be located.
4. Attach the switcher to the desk with the provided wood
screws, as shown in the following illustration.
www.camboard.de
2-6 SW2 VGA DA2 AF R • Installation and Operation
CAMBOARD Electronics
Tel. 07131 911201
Fax 07131 911203
Under-desk mounting
ce-info@camboard.de
SW2 VGA DA2 AF R • Installation and Operation 2-7
