Follow these steps to projector-mount the VSW 2VGA A using
the PMK 100 kit:
1. If rubber feet were previously attached to the bottom of the
unit, remove them.
2. Remove the two screws from one side of the switcher.
Retain the screws for possible later reassembly.
3. Attach the projector mounting bracket to the side of the
unit, using the provided machine screws.
Ceiling
Projector

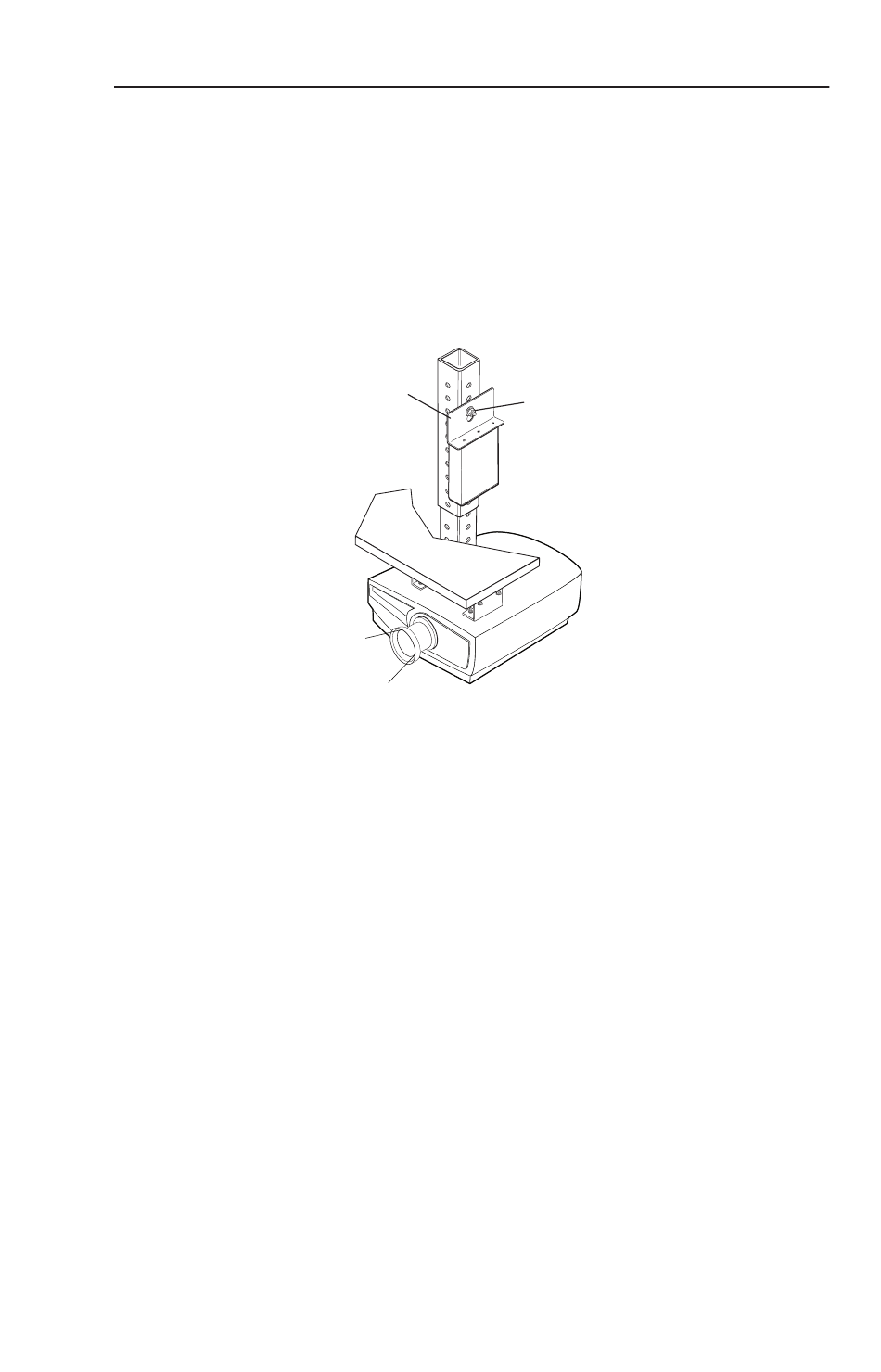

Figure 2-5 — Projector-mounting the VSW 2VGA A
using the PMK 200 Projector Mount kit
4. Secure the unit to a projector mount or other surface by
inserting the mounting bolt through the bracket's slotted
hole.

PMK 250 Projector Mount Kit

The PMK 250 Low Profile Projector Mount Kit is an above-
projector mounting kit that attaches to a 1" to 2" diameter
projector mounting pole. It can hold more than one device,
in a variety of sizes. The PMK 250 is available in black (part
#70-526-02) or white (part #70-526-03).
Follow these steps to mount the VSW 2VGA A on the PMK 250
bracket.
1. Remove the front panel from the PMK 250, using an Extron
Tweeker or other small Philips screwdriver. (Retain the
four screws to reattach the plate when finished.)
2. Remove the protective backing from the self-adhesive
rubber pad, and place the pad on the PMK 250 mount
plate, centering it between the two holes (see figure 2-6).
3. Remove any rubber feet from the bottom of the switcher.
www.camboard.de Tel. 07131 911201
Fax 07131 911203
ProjectorMountPMK200
Extron
PMK 200
Projector
Mounting
Bracket
ce-info@camboard.de
VSW 2VGA A • Installation and Operation
Mounting
Bolt
2-7
