Quick Start Guide — VSW 2VGA A, cont'd
Input selection
The switcher's inputs are selected using the front panel's Input
Select toggle switch or the rear panel's 3-pole Contact closure/
Autoswitching captive screw connector.

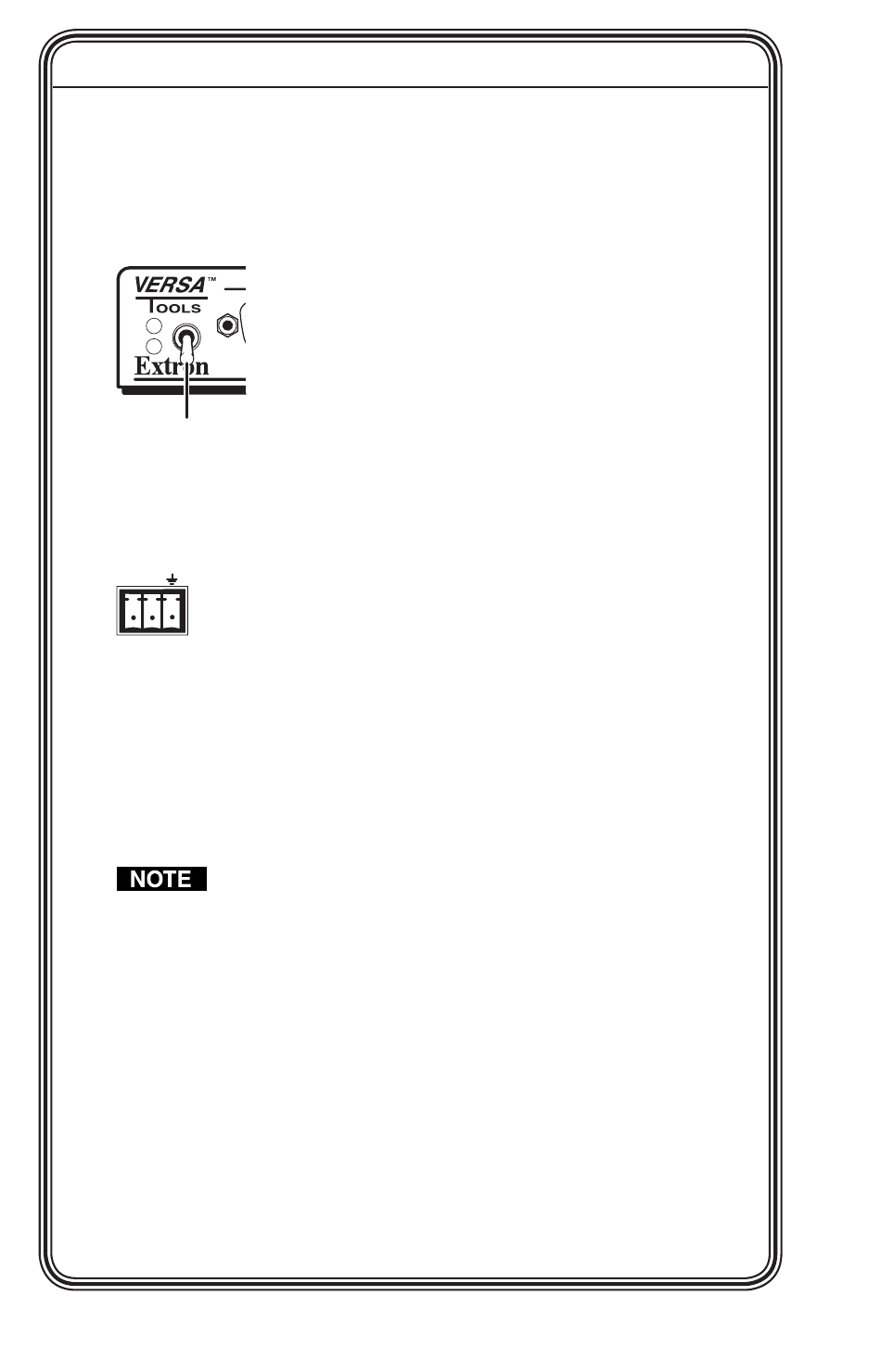

Input Select toggle switch
1
2
Input Select
Toggle Switch
Move this switch up to select Input 1; move it down to select Input 2.
Contact closure and Autoswitching
CONTACT
1
2
AUTO-SW
Connect a contact closure device to this captive screw connector..
• Pin 1 selects Input 1 when momentarily connected to ground
(pin 3).
• Pin 2 selects Input 2 when momentarily connected to ground
(pin 3).
• Pin 3 connects to the ground wire (equipment ground).
www.camboard.de
VSW 2VGA A • Quick Start Guide
QS-4
CAMBOARD Electronics
Simultaneously connecting both pins 1 and 2 to ground
(pin 3) using a contact closure device turns autoswitching
mode on. The Input Select toggle switch is disabled in
Autoswitch mode.
