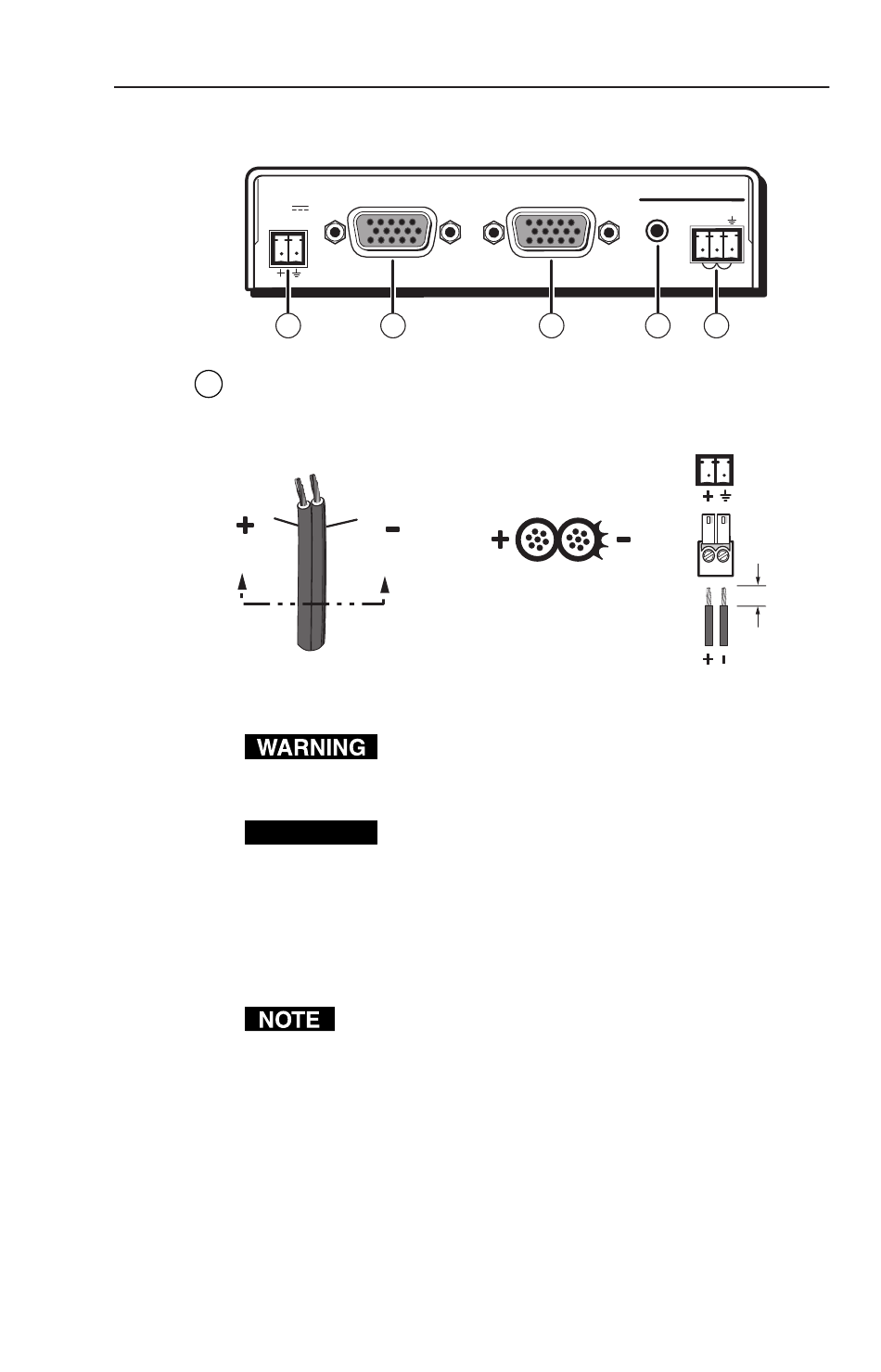

Rear Panel Features and Cabling

POWER
12V
.1A MAX
1
1 Power connector (Power) — Connect the included 12 VDC
external power supply to the 2-pole 3.5 mm captive screw
connector. Be careful to observe the correct polarity.
Smooth
A
CAUTION
To verify the polarity before connection, check the no load
power supply output with a voltmeter.
www.camboard.de
CAMBOARD Electronics
LOOP THRU
INPUT 1
2
Ridges
A
Power Supply
Output Cord
The two power cord wires must be kept separate
while the power supply is plugged in. Remove
power before wiring.
When you are connecting the power supply, voltage
polarity is extremely important. Applying power
with incorrect voltage polarity could damage the
power supply and the VSW 2VGA A. Identify the
power cord negative (ground) lead by the ridges on
the side of the cord or a black heat shrink wrapping
around it.
Strip the jacket to expose 0.2 inches (5 mm) of the
conductors. Do not tin the stripped power supply leads
before installing the captive screw connector. Tinned
wires are not as secure in the captive screw connectors
and could be pulled out.
Tel. 07131 911201 ce-info@camboard.de
VSW 2VGA A • Installation and Operation
Fax 07131 911203
VSW 2VGA A
OUTPUT
AUD OUT
3 4
SECTION A–A
CONTACT
1 2
AUTO-SW
5
0.2" (5 mm)
Captive Screw
Connector
2-11
