Installation Overview

To install and set up the SW2 VGA DA2 A/AF for operation,
follow these steps:
Turn all of the equipment off. Make sure that the video
1
and audio sources (computers, stereos, tape decks or other
devices), the SW2 VGA DA2 A/AF, the output devices
(projectors, speakers), and contact closure control device
are all turned off and disconnected from the power source.
Mount the switcher. See "Mounting the
2
SW2 VGA DA2 A/AF" in this chapter.
Attach the cables. See "Cabling" in this chapter.
3
Connect power cords and turn on the devices in the
4
following order: output devices, contact closure controller,
SW2 VGA DA2 A/AF switcher, and input devices.
Select an input from the front panel buttons or the contact
5
closure controller.
The image should now display, and sound should be
6
audible. If not, ensure that all devices are plugged in and
receiving power. Check the cabling and make adjustments
as needed. Select a different input to check for a picture
and sound. See "Troubleshooting" in this chapter.

Mounting the SW2 VGA DA2 A/AF

When mounting the switcher, take cabling and power
availability into consideration. Select under-desk (standard) or
through-desk (optional) mounting. Follow the appropriate
installation guide on the next three pages.

Under-desk mounting

1. Attach the under-desk mounting brackets to the
SW2 VGA DA2 A/AF with the six provided machine
screws, as shown in the under-desk mounting diagram.
2. Hold the interface with attached brackets against the
mounting surface. Use a soft pencil to mark the location of
holes for screws on the desk or other furniture.
3. Drill 1/4" (6.4 mm) deep, 3/32" (2 mm) diameter pilot
holes in the table or desk at the marked screw locations
from the underside/inside (concealed side) of the
furniture, where the switcher will be located.
SW2 VGA DA2 A/AF • Installation and Operation
2-2
4. Attach the SW2 VGA DA2 A/AF to the desk with the
provided wood screws, as shown in the following
illustration.
PO
W ER
IN PU
TS
1
2
OU
TP
UT S
A
B
L
R

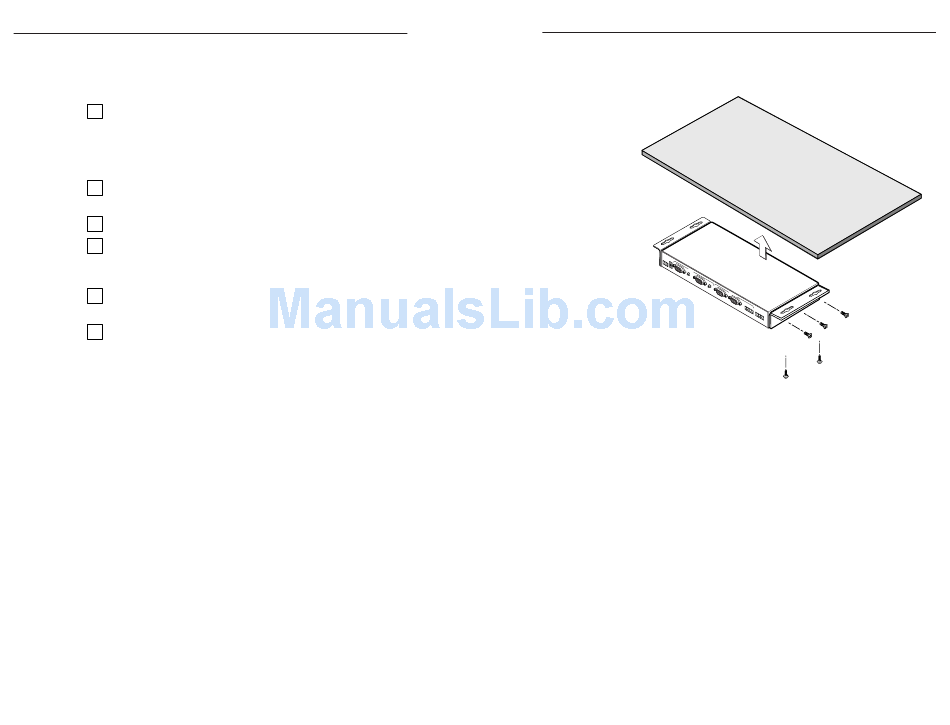

Under-desk mounting

Through-desk mounting

1. Hold the front panel of the switcher against the desk or
table. Use a soft pencil to mark the rough-in opening on
the desk. The opening, approximately 10.13" x 1.13"
(25.7 cm x 2.9 cm) will be slightly larger than the switcher
enclosure.
2. Cut out the material from the rough-in area with a jigsaw.
Check the opening size by inserting the switcher part way
through the hole. if needed, use a saw, file, or sandpaper
to enlarge the hole. Smooth the edges of the hole with
sandpaper.
3. Attach the through-desk mounting brackets to the
SW2 VGA DA2 A/AF with the four provided machine
screws, as shown in the through-desk mounting diagram
on the next page.
4. Hold the switcher with attached brackets up against the
underside of the desk or table. Use a soft pencil to mark
the locations of holes for the screws that will attach the
SW2 VGA DA2 A/AF • Installation and Operation
AS
/R EM
OT
E
1
2
I
A
S
2-3
